II F 2-6
3ADW000072R0501_DCS600_System_description_e_e

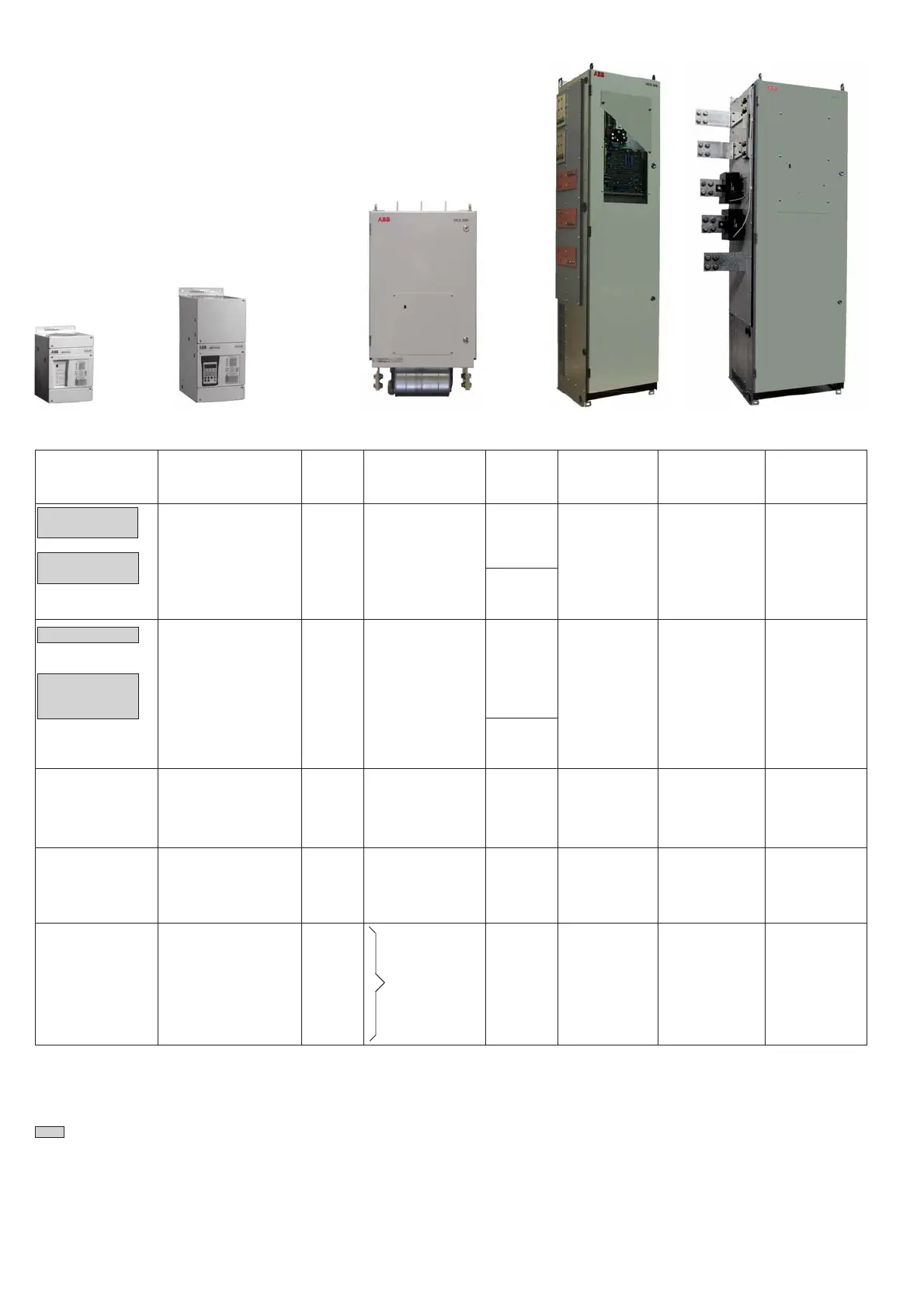

Construction type C2Construction type C1
Converter type ➁ Dimensions Weight Clearances Construct. Power loss Fan Semiconductor
H x W x D top/bottom/side type at 500V connection Fuses
[mm] [kg] [mm] P
V
[kW]
DCS60x-0025-y1 420x273x195 7.1 150x100x5 C1a < 0.2 230 V/1 ph external
DCS60x-0050-y1 420x273x195 7.2 150x100x5 C1a < 0.2 230 V/1 ph external
DCS60x-0050-61 420x273x195 7.6 150x100x5 C1a - 230 V/1 ph external
DCS60x-0075-y1 420x273x195 7.6 150x100x5 C1a < 0.3 230 V/1 ph external
DCS60x-0100-y1 469x273x228 11.5 250x150x5 C1b < 0.5 230 V/1 ph external
DCS60x-0110-61 469x273x228 11.5 250x150x5 C1b - 230 V/1 ph external
DCS60x-0140-y1 469x273x228 11.5 250x150x5 C1b < 0.6 230 V/1 ph external
DCS60x-0200-y1 505x273x361 22.3 250x150x5 C2a < 0.8 230 V/1 ph external
DCS60x-0250-y1 505x273x361 22.3 250x150x5 C2a < 1.0 230 V/1 ph external
DCS60x-0270-61 505x273x361 22.8 250x150x5 C2a - 230 V/1 ph external
DCS60x-0350-y1 505x273x361 22.8 250x150x5 C2a < 1.3 230 V/1 ph external
DCS60x-0450-y1 505x273x361 28.9 250x150x10 C2a < 1.5 230 V/1 ph external
DCS60x-0520-y1 505x273x361 28.9 250x150x10 C2a < 1.8 230 V/1 ph external
DCS60x-0680-y1 652x273x384 42 250x150x10 C2b < 1.6 230 V/1 ph external
DCS60x-0820-y1 652x273x384 42 250x150x10 C2b < 2.0 230 V/1 ph external
DCS60x-1000-y1 652x273x384 42 250x150x10 C2b < 2.5 230 V/1 ph external
DCS60x-0903-y1 1050x510x410 110 300x100x20 A5 - 230 V/1-ph internal
DCS60x-1203-y1 1050x510x410 110 300x100x20 A5 < 5.2 230 V/1-ph internal
DCS60x-1503-y1 1050x510x410 110 300x100x20 A5 < 5.5 230 V/1-ph internal
DCS60x-2003-y1 1050x510x410 110 300x100x20 A5 < 6.6 230 V/1-ph internal
DCS60x-1903-81 1750x460x410 180 ➂ x0x50 A6 - 400...500 V/3-ph
DCS60x-2053-y1 1750x460x410 180 ➂ x0x50 A6 < 7.9 at y = 4, 5, 8 internal
DCS60x-2503-y1 1750x460x410 180 ➂ x0x50 A6 < 9.3 500...690 V/3-ph
DCS60x-3003-y1 1750x460x410 180 ➂ x0x50 A6 < 11.9 at y = 6, 7
DCS60x-2053-y1L➀ 1750x770x570 315 A7 - 400/690 V/3-ph
DCS60x-2603-y1L➀ 1750x770x570 315 A7 - 400/690 V/3-ph internal
DCS60x-3203-y1L➀ 1750x770x570 315 A7 - 400/690 V/3-ph
DCS60x-3303-y1L➀ 1750x770x570 315 A7 < 15 400/690 V/3-ph
DCS60x-4003-y1L➀ 1750x770x570 315 A7 < 16 400/690 V/3-ph
DCS60x-4803-y1L➀ 1750x770x570 315 A7 - 400/690 V/3-ph
DCS60x-5203-y1L➀ 1750x770x570 315 A7 < 20 400/690 V/3-ph
➀ Busbar connection on the right side is optional
Example for the type designation: connection left DCS60x-5203-y1L; connection right DCS60x-5203-y1R)
➁ x=1 → 2-Q; x=2 → 4-Q; y=4...9/1 → 400...1000 V/1190 V supply voltage
➂ Exhaust air must leave enclosure via air channel
also available as field supply converter DCF60x (for 500 V s. also table 2.2/3). Data are the same as the armature current converter DCS60x
Table 2.2/5: Table of DCS 600 units
Construction type A5 Construction type A6 Construction type A7
left busbar connection
to be installed
in cubicle
