3ADW000072R0501_DCS600_System_description_e_e
EN 61800-3
EN 61000-6-3
EN 61000-6-4
EN 61000-6-2
EN 61000-6-1
satisfied
satisfied
Second environment (industry) with restricted distribution
on customer's request satisfied
Not applicable
Standards
Classification
The following overview
utilises the terminology
and indicates the action
required in accordance
with Product Standard
EN 61800-3
For the DCS 500B series,
the limit values for emit-
For compliance with the protection objectives of the
German EMC Act (EMVG) in systems and machines,
the following EMC standards must be satisfied:
Product Standard EN 61800-3
EMC standard for drive systems (PowerDriveSys-
tem), interference immunity and emissions in resi-
dential areas, enterprise zones with light industry
and in industrial facilities.
This standard must be complied with in the EU for
satisfying the EMC requirements for systems and
machines!
For emitted interference, the following apply:
EN 61000-6-3 Specialised basic standard for emissions in light industry can
be satisfied with special features (mains filters, screened power
cables) in the lower rating range *(EN 50081-1).
EN 61000-6-4 Specialised basic standard for emissions in industry
*(EN 50081-2)
For interference immunity, the following apply:
EN 61000-6-1 Specialised basic standard for interference immunity in residen-
tial areas *(EN 50082-1)
EN 61000-6-2 Specialised basic standard for interference immunity in indus-
try. If this standard is satisfied, then the EN 61000-6-1 standard
is automatically satisfied as well *(EN 50082-2).
* The generic standards are given in brackets
The field supply is not depicted in
this overview diagram. For the
field current cables, the same
rules apply as for the armature-
circuit cables.
ted interference are complied with,
provided the action indicated is car-
ried out. This action is based on the
term Restricted Distribution used in
the standard (meaning a sales chan-
nel in which the products concerned
can be placed in the stream of com-
merce only by suppliers, customers
or users which individually or jointly
possess technical EMC expertise).
For power converters without addi-
tional components, the following
warning applies:
This is a product with restricted
distribution under IEC 61800-3.
This product may cause radio inter-
ference in residential areas; in this
case, it may be necessary for the
operator to take appropriate action
(see adjacent diagrams).
MM
MM

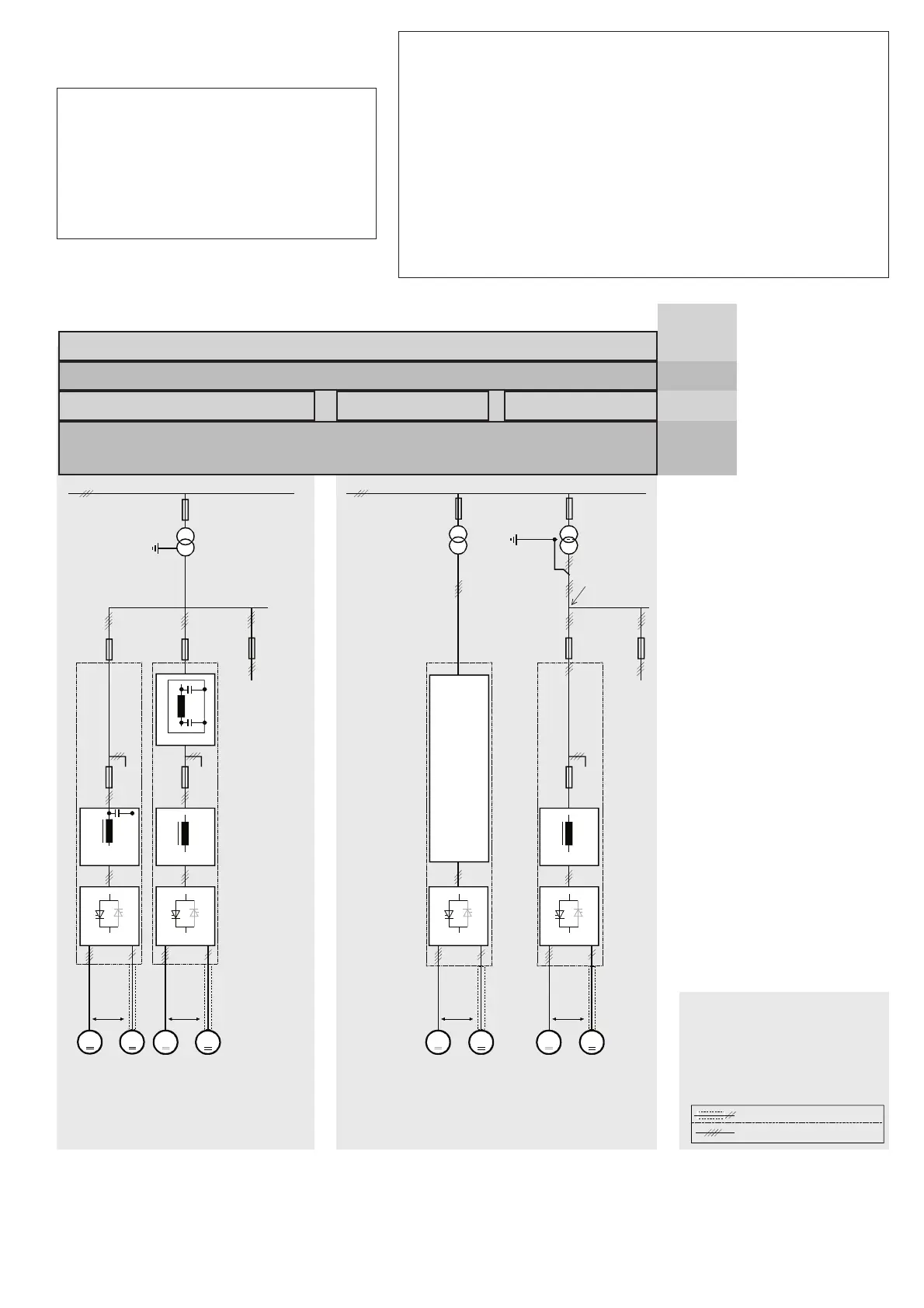

Supply transformer for a
residential area (rating
normally
≤
1.2 MVA)
Earthed 400-V network
with neutral conductor;
3~
≤
400 A
Operation at low-voltage network together with
other loads of all kinds, apart from some kinds
of sensitive communication equipment.
To other loads, e.g. drive systems
Line reactor +
Y-capacitor
Line reactor
Converter Converter
Mains filter
Earthed
neutral
Medium-voltage network
Industrial zone
alternative
alternative
MMMM
Converter
transformer
Case-referenced EMC analysis
alternative
Converter
transformer
with earthed
iron core
(and earthed
screen where
appropriate)
alternative
I > 400 A
and/or
U > 500 V
Operation with separate power converter transformer. If there
are other loads at the same secondary winding, these must be
able to cope with the commutation gaps caused by the power
converter. In some cases, commutating reactors will be
required.
To other loads, e.g. drive systems
Converter Converter
Line reactor
Medium-voltage network
Industrial zone
Legend
Unscreened cable with restriction
Screened cable
To Next Page
