1 DCS 600 MultiDrive - the power converter
❖ state-of-the-art technology
❖ flexible design
❖ user-friendly
Unit range
The range comprises of 5 sizes, C1, C2, A5, A6 and A7.
We can deliver both modules and standard cubicles.
Basic hardware components
❋ Thyristor bridge(s) (from size A5 with installed
branch fuses)
❋ Temperature monitor for the thyristor bridge(s)
❋ Fan
❋ Integrated power supply for the electronics
❋ Microprocessor board
❋ AMC (Application Motor Control) board with DSP
(Digital Signal Processor) for drive control and
DDCS link
Additional components integrated in the module
❋ Field supply converter
– uncontrolled full wave diode bridge, 6A or
– half-controlled diode/thyristor bridge, 16A
❋ Control panel
Moreover, the accessories listed below can be used
to individually customize the drive package in ac-
cordance with the application intended
❋ External field supply units
❋ 12-Pulse parallel configuration
❋ 12-Pulse serial/sequential configuration
❋ Additional I/O boards (isolated)
❋ Interface modules for various communication pro-
tocols
❋ EMC filter
❋ PC programs

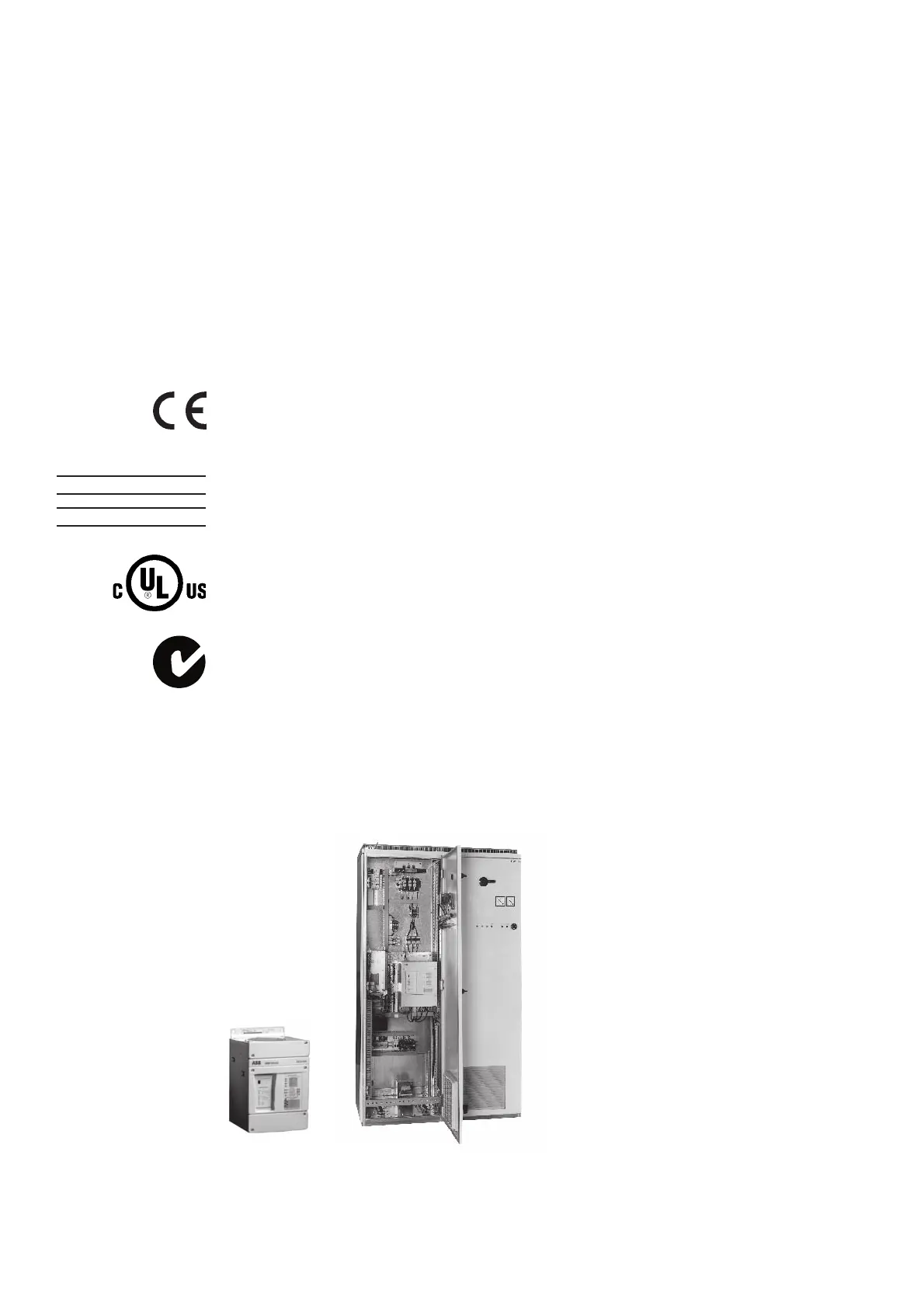

C1 - Module DCA cubicle
ABB’s long years of experience with variable-speed DC
drives, plus use of the latest state-of-the-art technolo-
gies, have been combined to create this product. The
DCS 600 MultiDrive contains a complete program
with ratings between 25 A and 5200 A as a power
converter module (in 12-pulse parallel configuration
appr. 10,000 A). It is suitable for all commonly used
three-phase systems.
All our products are CE approved.
The DC drives factory of ABB Automation Products,
Drives Division in Lampertheim has implemented and
maintains a quality management system according to
DIN EN ISO 9001 and an environmental manage-
ment system according to DIN EN ISO 14001.
DCS 600 MultiDrives are approved according to UL
(Underwriters Laboratory).
They also comply with the relevant EMC standards for
Australia and New Zealand and are C-Tick marked.
DCS 600 MultiDrive converter units are suitable for
standard and system drive applications.
Appropriate PC programs ensure that the drives are
engineered for user-friendly operator control.
DIN EN ISO 9001
DIN EN ISO 14001
