Dimensions and weights
115
3ADW000462R0301 DCS880 Hardware Manual e c

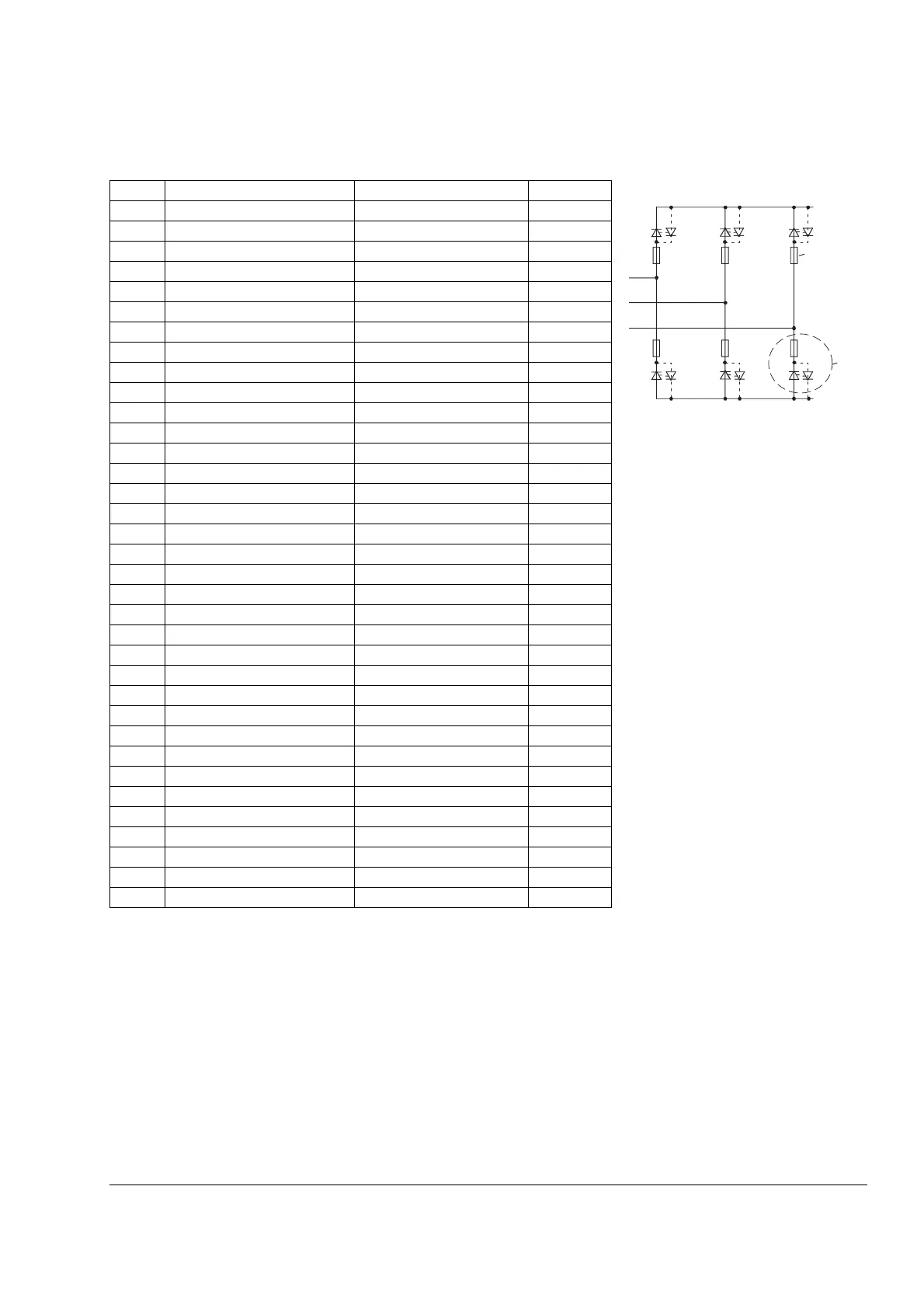

Branch fuses installed inside converter sizes H5 ... H8
 Two fuses per thyristor (12 fuses per bridge)
Size Converter type Fuse type Fuse Size
400 V / 500 V / 525 V
H5 DCS880-S0b-1190-04/05 UR 900 A / 690 V 2
H6 DCS880-S0b-1200-04/05 UR 800 A / 660 V 5
H6 DCS880-S0b-1500-04/05 UR 1250 A / 660 V 5
H6 DCS880-S0b-2000-04/05 UR 1600 A / 660 V 5
H7 DCS880-S0b-2050-05 UR 1500 A / 660 V 5
H7 DCS880-S0b-2500-04/05 UR 900 A / 660 V
 5
H7 DCS880-S0b-3000-04/05 UR 1250 A / 660 V
 5
H8 DCS880-S0b-3300-04/05 UR 2500 A / 660 V 7
H8 DCS880-S0b-4000-04/05 UR 3000 A / 660 V 7
H8 DCS880-S0b-5200-04/05 UR 3500 A / 690 V 7
600 V / 690 V
H6 DCS880-S0b-0900-06/07 UR 630 A / 1250 V 6
H6 DCS880-S0b-1500-06/07 UR 1100 A / 1250 V 6
H6 DCS880-S01-2000-06/07 UR 1400 A / 1100 V 6
H7 DCS880-S0b-2050-06/07 UR 700 A / 1250 V
 6
H7 DCS880-S0b-2500-06/07 UR 1000 A / 1250 V
 6
H7 DCS880-S0b-3000-06/07 UR 1100 A / 1250 V
 6
H8 DCS880-S0b-3300-06/07 UR 2500 A / 1000 V 8
H8 DCS880-S0b-4000-06/07 UR 3000 A / 1000 V 8
H8 DCS880-S0b-4800-06/07 UR 3000 A / 1000 V 8
800 V
H7 DCS880-S0b-1900-08 UR 630 A / 1250 V
 6
H7 DCS880-S0b-2500-08 UR 1000 A / 1250 V
 6
H7 DCS880-S0b-3000-08 UR 1100 A / 1250 V  6
H8 DCS880-S0b-3300-08 UR 2500 A / 1000 V 8
H8 DCS880-S0b-4000-08 UR 3000 A / 1000 V 8
H8 DCS880-S0b-4800-08 UR 3000 A / 1000 V 8
1000 V
H8 DCS880-S0b-2050-10 UR 1800 A / 1250 V 9
H8 DCS880-S0b-2600-10 UR 1800 A / 1250 V 9
H8 DCS880-S0b-3300-10 UR 2500 A / 1250 V 9
H8 DCS880-S0b-4000-10 UR 2500 A / 1250 V 9
1200 V
H8 Data on request - -
C1 (+)
D1 (-)
U1
V1
W1
F11 F13 F15
F14 F16 F12
V11 V13 V15V24 V26 V22
V14 V16 V12V21 V23 V25
SF_DCS_003_principle_a.ai
Branching fuse
Branch
