ABB DPA UPScale ST80 - Single Input Feed (Standard Version); Block Diagram; Cable Sections

Modifications reserved
Page 23/26
16.3 Single input feed (standard version)

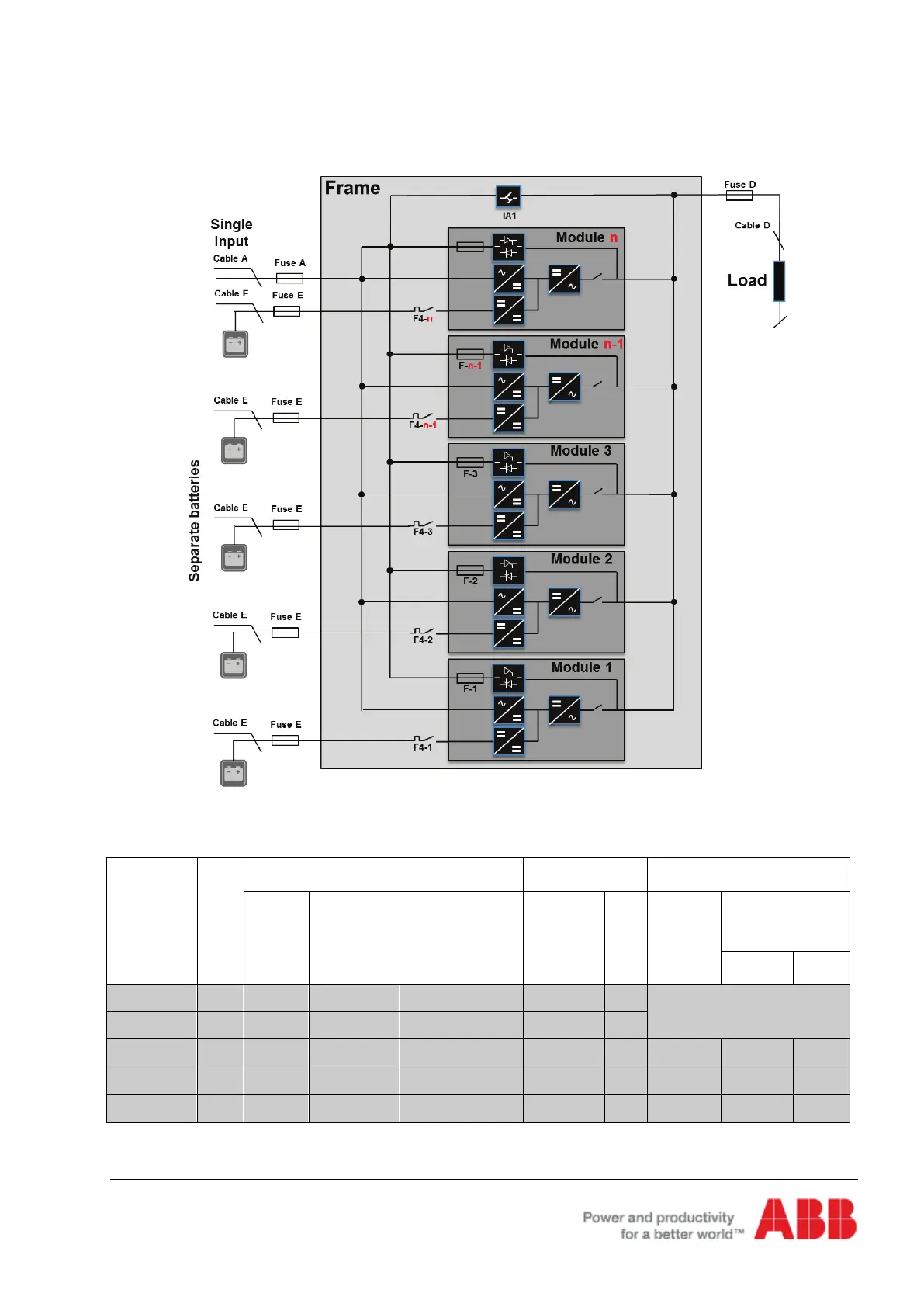

16.3.1 Block diagram
Cable sections and fuse ratings recommended. Alternatively, local standards to be respected.
16.3.2 Cable sections
Frame type
Load
in kW
Input 3 x 400 V/230 V
Output 3 x 400 V/230
V @ cosphi 1.0
Battery
Fuse A
(Agl/CB)
Cable A (mm
2
)
(IEC 60950-1)
Max. input current
with battery charging [A]
Cable D (mm
2
)
(IEC 60950-1)
I nom
[A]
Fuse E
+ / N / -
(Agl/CB)
Cable E (mm
2
)
for CBAT UPScale 120
or 200 ONLY
+ / N / -
Com.
battery
Sep.
Battery
UPScale ST 40
40 3 x 80 A 5 x 16 68 A 5 x 16 58 A
NOT ALLOWED
UPScale ST 60
60 3 x 125 A 5 x 35 102 A 5 x 35 87 A
UPScale ST 80
80 3 x 160 A 5 x 50 136 A 5 x 50 116 A 3 x 224 A*1 3 x 95 *1 4x(3x10)
UPScale ST120
120 3 x 224 A
4 x 95+1 x 50
(PE)
208 A 5 x 70 174 A 3 x 300 A*1 3 x 150 *1 6x(3x10)
UPScale ST 200
200 3 x 350 A 5 x 185 333 A 5 x 185 290 A 3 x 450 A *1 3x(2x95)*1 5x(3x25)
*1 only valid for common battery use
