8 Standards
Safety EN 62040-1-1, EN 60950-1
Electromagnetic compatibility
EN 61000-6-4 Prod.standard: EN 62040-2
EN 61000-6-2 Prod.standard: EN 62040-2
EN 61000-4-2, EN 61000-4-3 - EN 61000-4-4 - EN 61000-4-5 - EN 61000-4-6
EMC classification,
Emission class
C3
Immunity class C3
Performance IEC/EN 62040-3
Product certification CE
9 Control and monitoring
9.1 DPA display

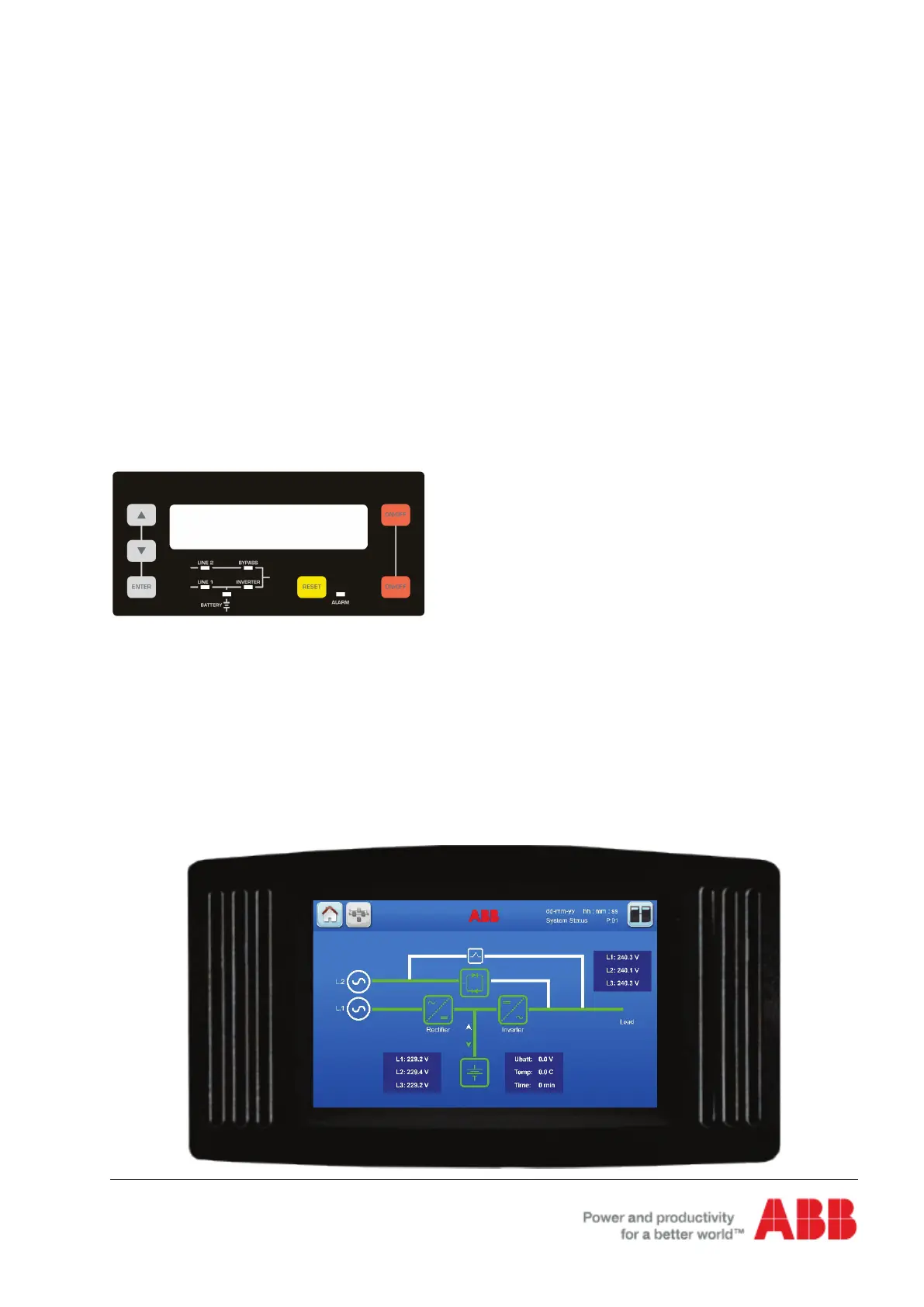

The DPA display and control panel module has three
sections:
1. The LCD provides monitoring and measurement
information
2. The mimic diagram delivers the general status of
the UPS
3. Control keys allow the operator to manipulate
UPS settings
9.2 System graphical display
The user-friendly touchscreen graphical display on the system level offers the opportunity to directly
monitor the system status as well as the status of each individual module. The graphical display
additionally provides all measurements (at module and system level) and the user can transfer from
the inverter to bypass and vice-versa. All other commands must be performed on the DPA display.
With both displays in place (module and system level), the UPS offers full user friendliness without
making compromises on robustness.
