ABB DressPack IRB 6700 User Manual

2.4.2 Fitting attachments of the IRBDP MH3 LI
Location of the attachments

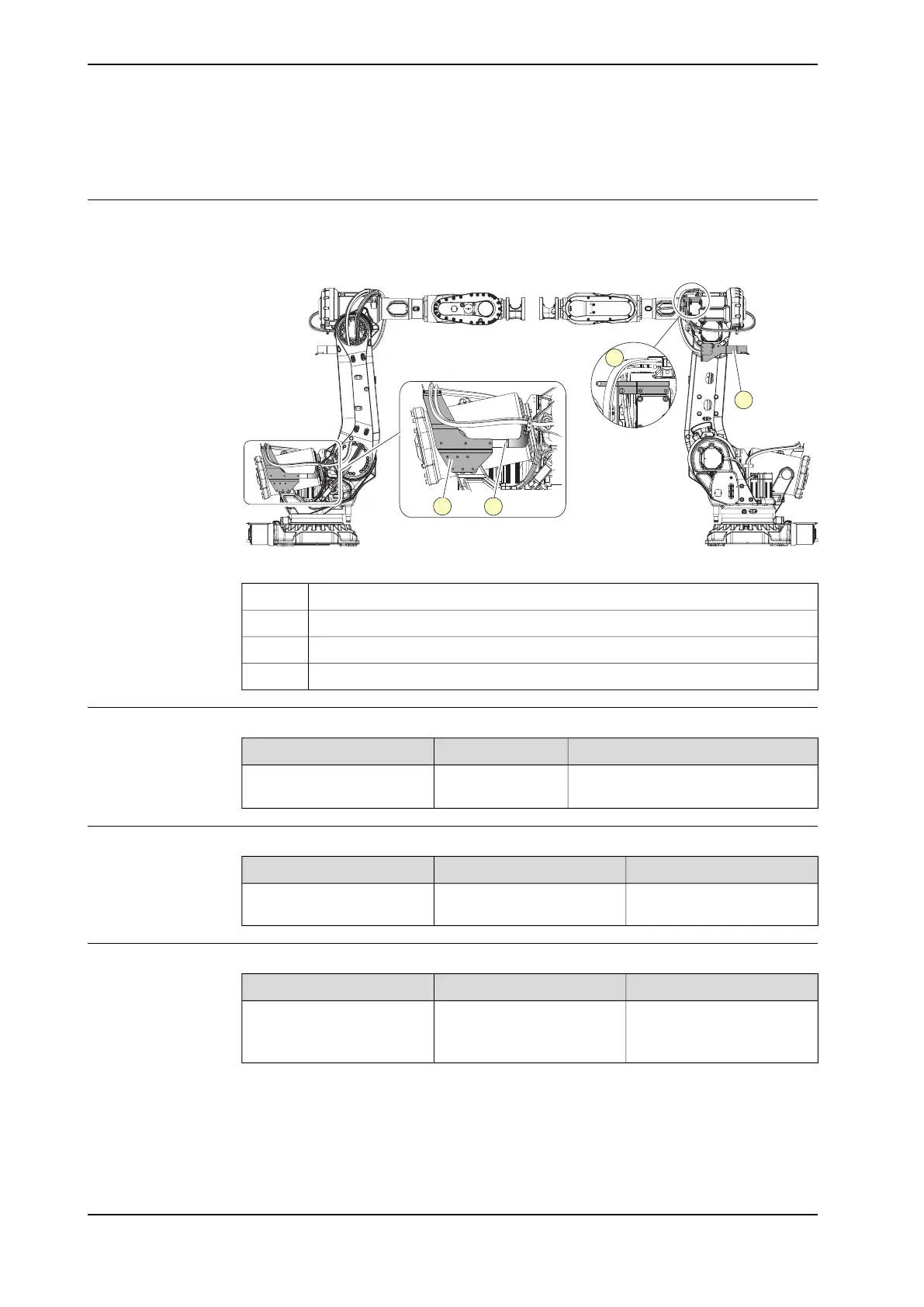

The location of the attachments of the cable package IRBDP MH3 LI are shown in
the figure.
A
B
C
D
xx1300001974
Side bracket, balancing deviceA
Lower bracketB
Connection plateC
Cable guideD
Required tools and equipment
NoteArticle numberEquipment, etc.
Content is defined in section Standard
toolkit on page 217.
-Standard toolkit
Spare part
NoteSpare part numberSpare part
See Product manual, spare
parts - IRB 6700.
Cable harness
Consumables
NoteArticle numberEquipment
Loctite 2433HAB7116-1Locking liquid
For locking screws, securing
brackets etc.
Continues on next page
68 Product manual - DressPack/SpotPack IRB 6700
3HAC044270-001 Revision: F
© Copyright 2014-2017 ABB. All rights reserved.
2 Installation
2.4.2 Fitting attachments of the IRBDP MH3 LI
