ABB EasyLine EL3040 - Gas Connections for Uras26 (Model EL3040)

44 EasyLine EL3000 Series Commissioning Instructions
Gas Connections for Uras26 (Model EL3040)

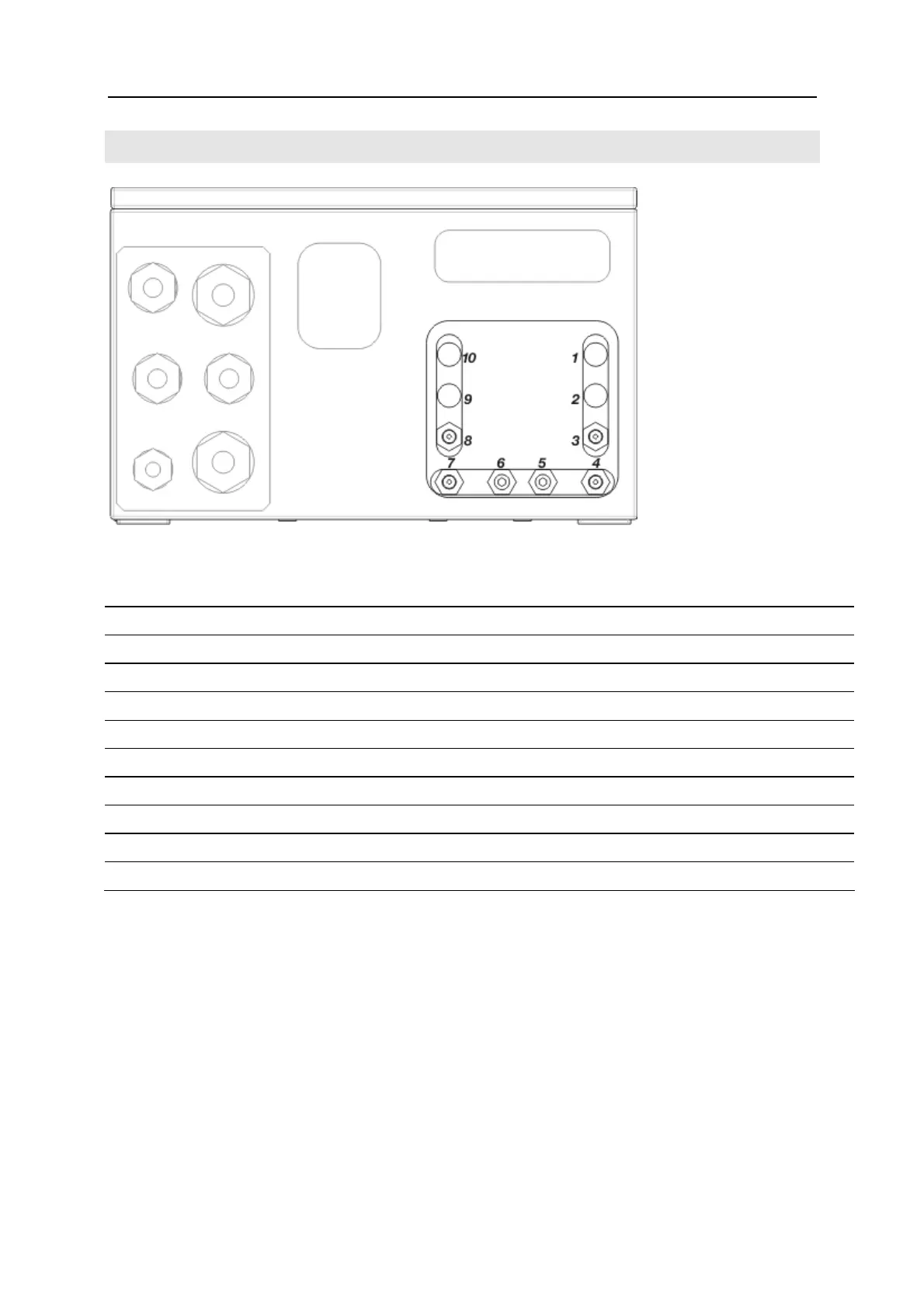

Uras26: Gas Connections with 1 Gas Feed Path
(internal gas lines executed as flexible tubes or stainless steel pipes)
1
not assigned
2
not assigned
3
Sample gas inlet
4
Sample gas outlet with one sample cell
5
Purge gas inlet for case
6
Purge gas outlet for case
7
not assigned
8
Sample gas outlet with two sample cells in series
9
Pressure sensor (if internal gas lines are executed as stainless steel pipes)
10
not assigned
