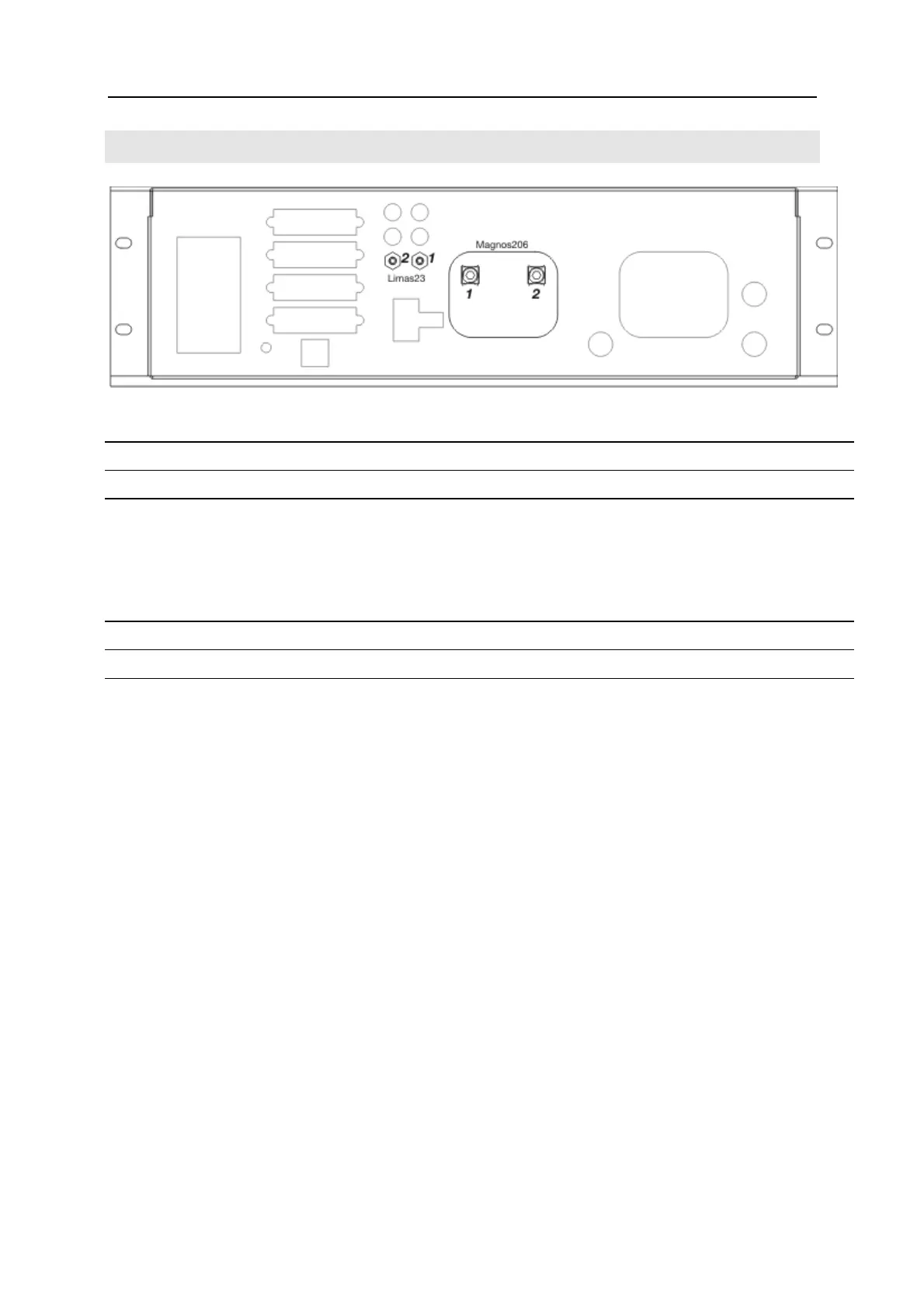

Gas Connections for Limas23 with Magnos206 (Model EL3020)
Limas23: Gas Connections
1
Sample gas inlet
2
Sample gas outlet
Design: Screwed fittings with hose nozzles (stainless steel 1.4305/SAE 303) for hoses
with 4 mm inner diameter (supplied)
Note: The pressure sensor is connected internally in the outlet of the sample cell.
Magnos206: Gas Connections
1
Sample gas inlet
2
Sample gas outlet
Design: 1/8 NPT female thread (stainless steel 1.4305/SAE 303)
Connection of flexible tubes: straight screwed fittings (PP) with nozzles for flexible
tubes with inside diameter = 4 mm (supplied)
Connection of pipelines: Threaded connections (not supplied)
Note: The sample gas inlet of the Limas23 is connected ex works to the sample gas
inlet of the Magnos206.
