ABB EasyLine EL3040 - Gas Connections for ZO23 (Model EL3040)

Installing the Gas Analyzer 63
Gas Connections for ZO23 (Model EL3040)

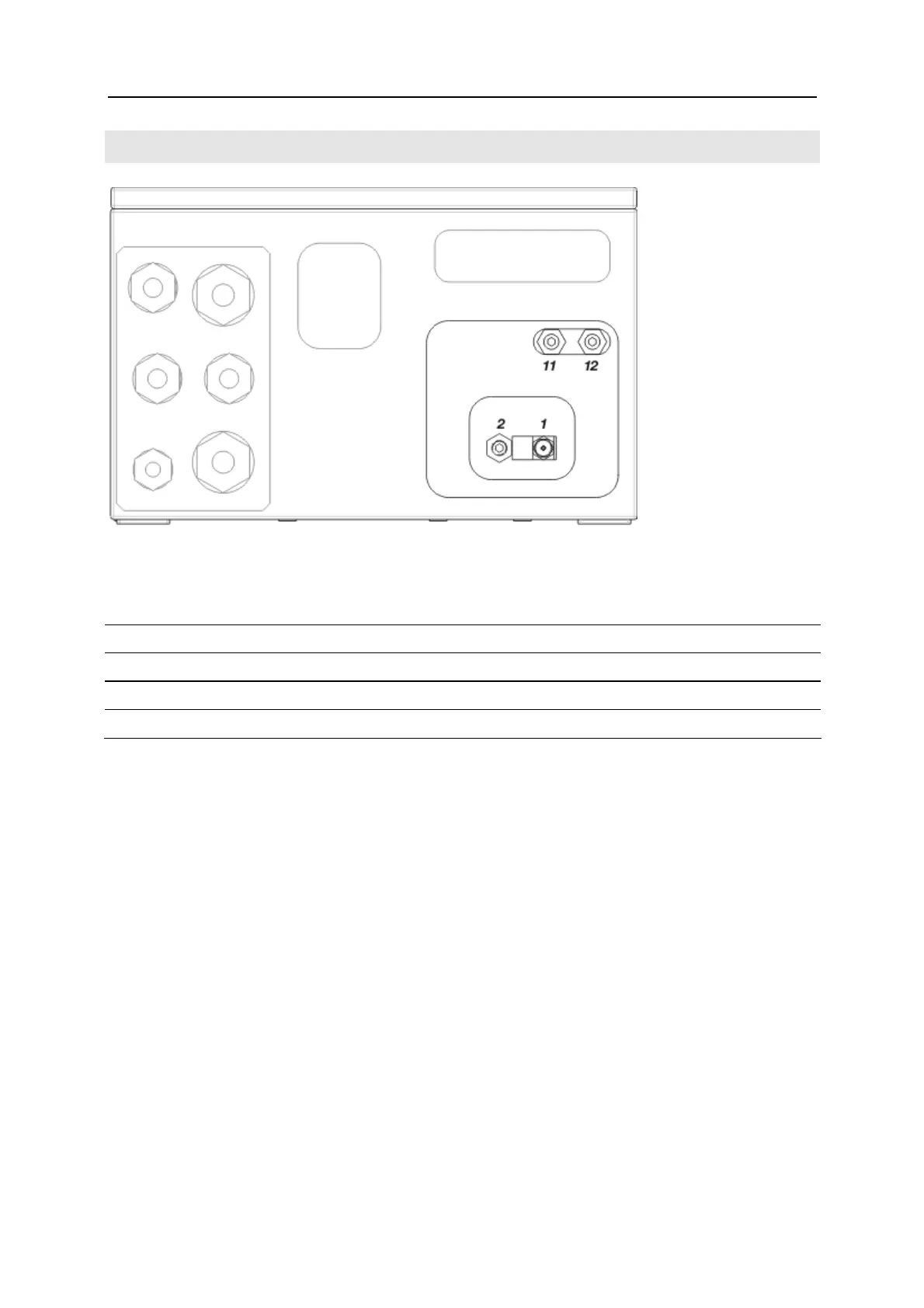

ZO23: Gas Connections
The sample chamber is connected to the sample gas inlet connection via a stainless steel tube on the
inlet side and to the sample gas outlet connection via an FPM hose on the outlet side.
1
Sample gas inlet (3 mm Swagelok
®
)
2
Sample Gas Outlet
11
Purge gas inlet for housing
12
Purge gas outlet for housing
Design of the gas connections unless stated otherwise:
1/8 NPT female thread for threaded connections (not supplied)
