EIB Delta-Meter
Electricity Meters
11
ABB i-bus
®
EIB

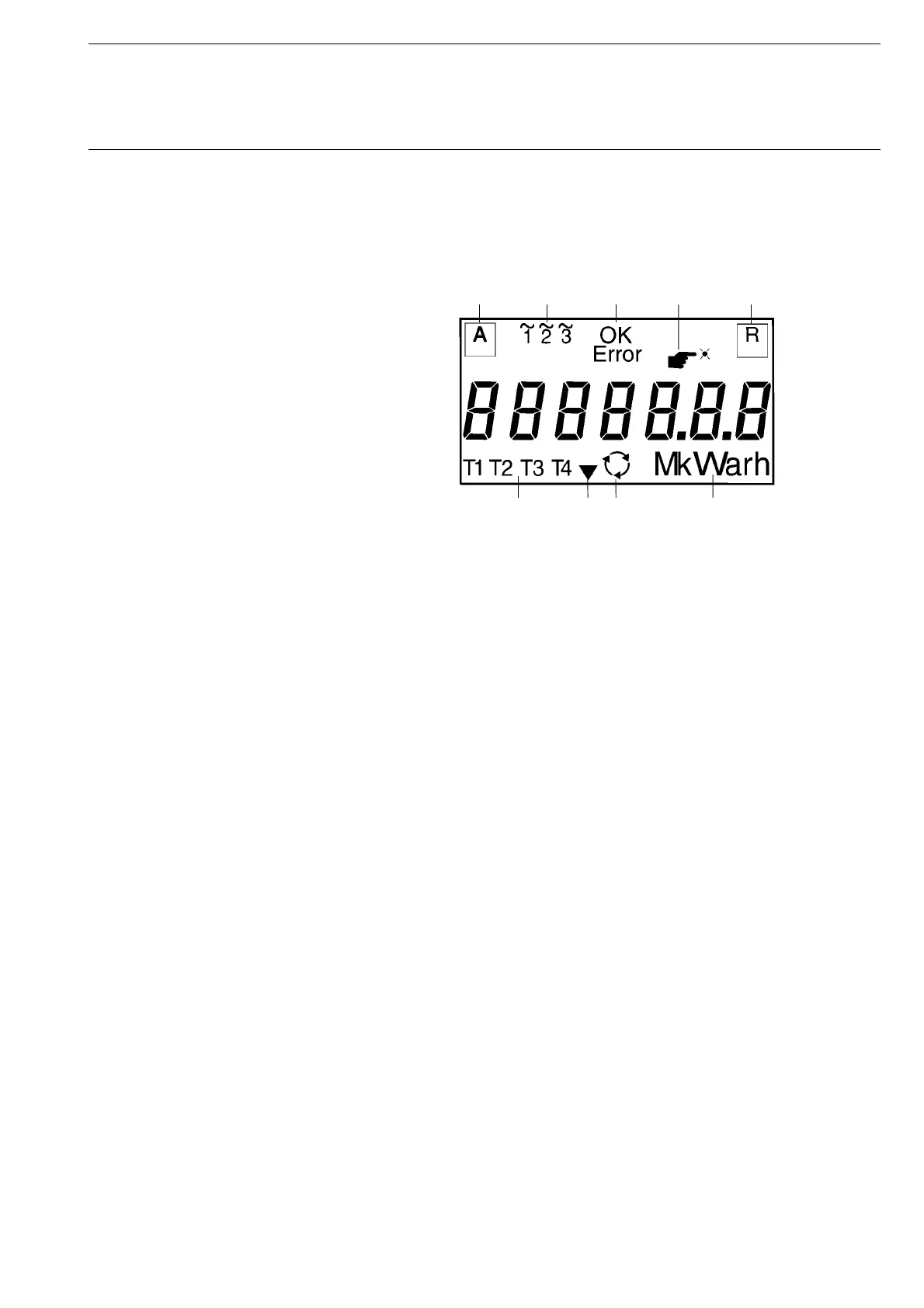

In addition to the energy consumption values, the multifunctional LCD
display shows the user the parameters outlined below.
➀ Active power indicator: The symbol flashes dependent on the
instantaneous active power consumption.
Direct connected meter: 1000 Imp/kWh
Transformer rated meter: 5000 Imp/kWh
➁ Voltage indicators: The symbols L1, L2 and L3 are constantly lit if the
corresponding phase voltage has been connected.
Note: In the case of three-wire, polyphase meters, only voltage indicators
L1 and L3 normally light up.
➂ Status indicator: The text indicates whether the device is ‘OK’ or there is
an ‘Error’, i.e., device or installation errors present.
➃ Operational indicator: The ‘Hand’ symbol lights up if a push button action
is expected.
➄ Reactive power indicator: The symbol flashes dependent on the
instantaneous reactive power consumption.
Direct connected meter: 1000 Imp/kvarh
Transformer rated meter: 5000 Imp/kvarh
➅
Tariff indicators: The symbols T1, T2, T3 and T4 indicate the active tariff
and the tariff that is currently on the LCD display.
No symbol is lit = The sum of all tariffs is displayed.
Only TX flashes = Tariff X is active and is displayed.
TX flashes and TY is constantly lit = Tariff X is active, tariff Y is
displayed.
➆ Mode indicator: The arrow symbol changes with the display mode.
No arrow = ‘Normal mode’
Arrow lights up = ‘Alternative mode’
Arrow flashes = ‘Instrument mode’
➇ Function indicator:: The arrow symbols rotate at a constant speed, if the
current lies in at least one phase above the starting current.
Note: The arrows rotate even if the direction of current flow is incorrect.
➈ Unit of measurement: Indicates the unit of the measured value in the
LCD display.
3 Features and
functions
3.1 LCD display
