ABB EIB Delta User Manual

EIB Delta-Meter
Electricity Meters
29
ABB i-bus
®
EIB
Two-wire, single-phase voltage network
DZ 2200/1 DZ 2210/1
Direct measurement up to 65 A Measurement with current transformer
L
N
3 111
1600
L
N
2 3 111
1610
Three-wire, polyphase voltage network
DZ 3100/1, DZ 3400/1, DZ 3500/1 DZ 3110/1, DZ 3410/1, DZ 3510/1
Direct measurement up to 65 A Measurement with current transformers
L1
L2
L3
3 4 6 7 91
3600
L1
L2
L3
2 3 5 7 8 91
3610
Four-wire, polyphase voltage network
DZ 4000/1 DZ 4010/1
Direct measurement up to 65 A Measurement with current transformers
L1
L2
L3
N
3 4 6 7 9 111
4600
L1
L2
L3
N
2 3 4 5 6 7 8 9 111
4610

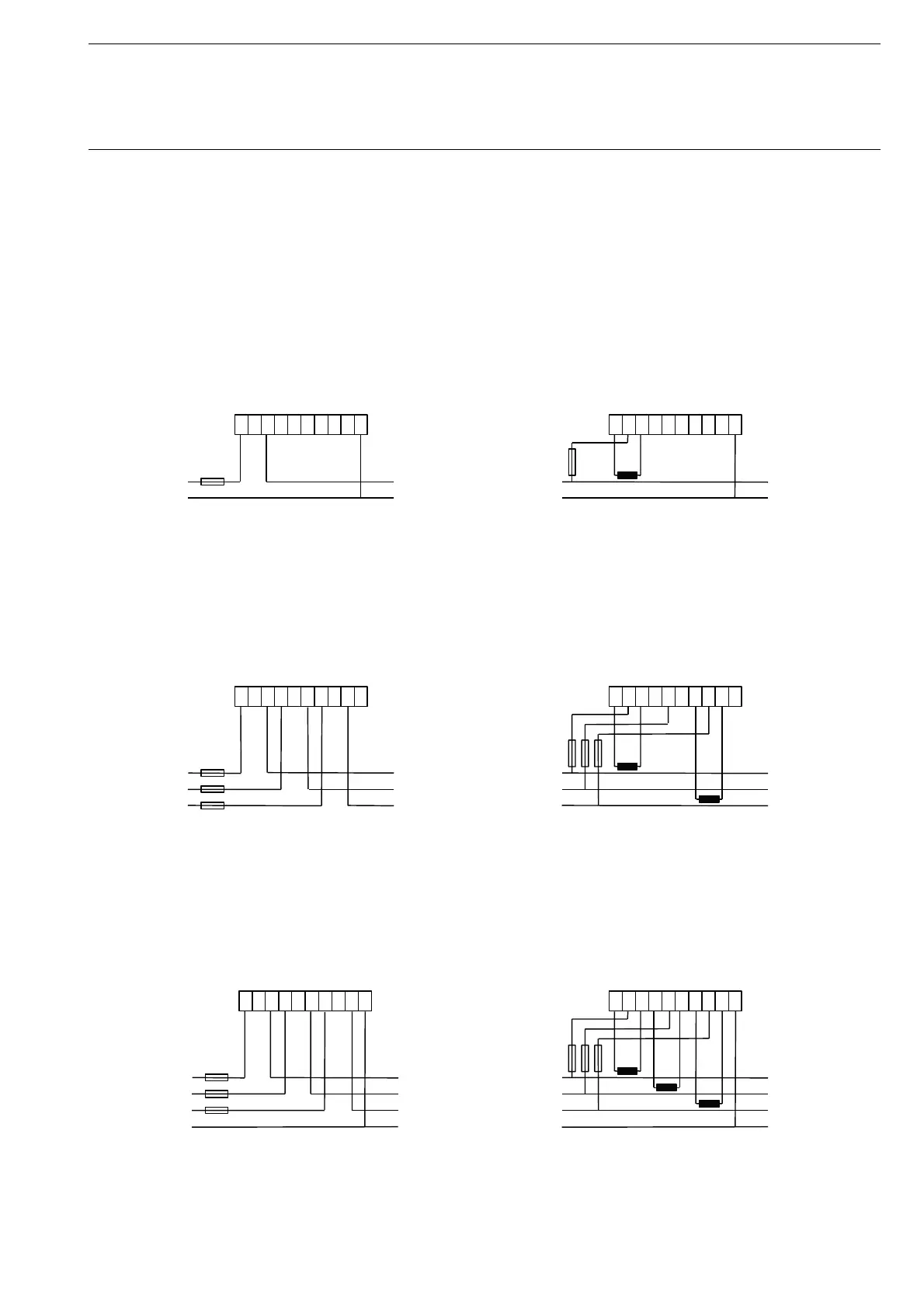

5.3 Wiring diagrams: (with wiring diagram numbers according to DIN 43 856)
Direct connected meters Transformer rated meters
