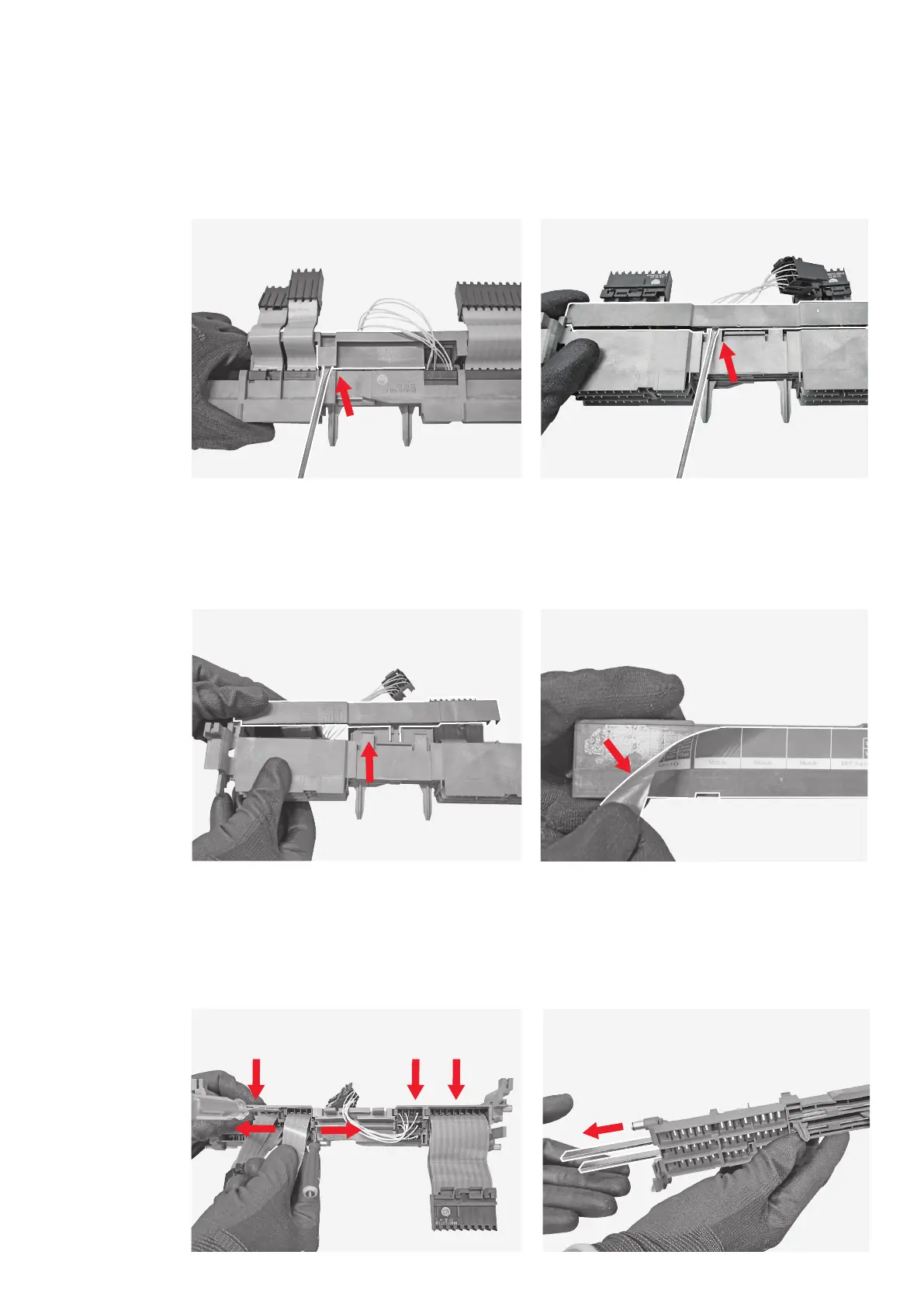

Disassembly instruction emaX 2 e6.2
32
Manually remove the right side wall.
34
Insert 2 flat screwdrivers at the sides of each
block, slightly push them as indicated by the
arrows and complete the removal of the 3 flat
cables assemblies and of the connector cables
assembly manually pulling them.
33
By means of the cutter start removing the
sliding contacts label located on the on the
right side wall and manually complete the
operation.
35
Lift the sliding contacts base and let the 2 bars
mounted inside exit.
30
By means of the flat screwdriver unhook the
right side wall from the sliding contacts main
assembly as indicated in the picture.
31
By means of the flat screwdriver unhook the
right side wall from the sliding contacts main
assembly as indicated in the picture.
