INSTRUCTION HANDBOOK

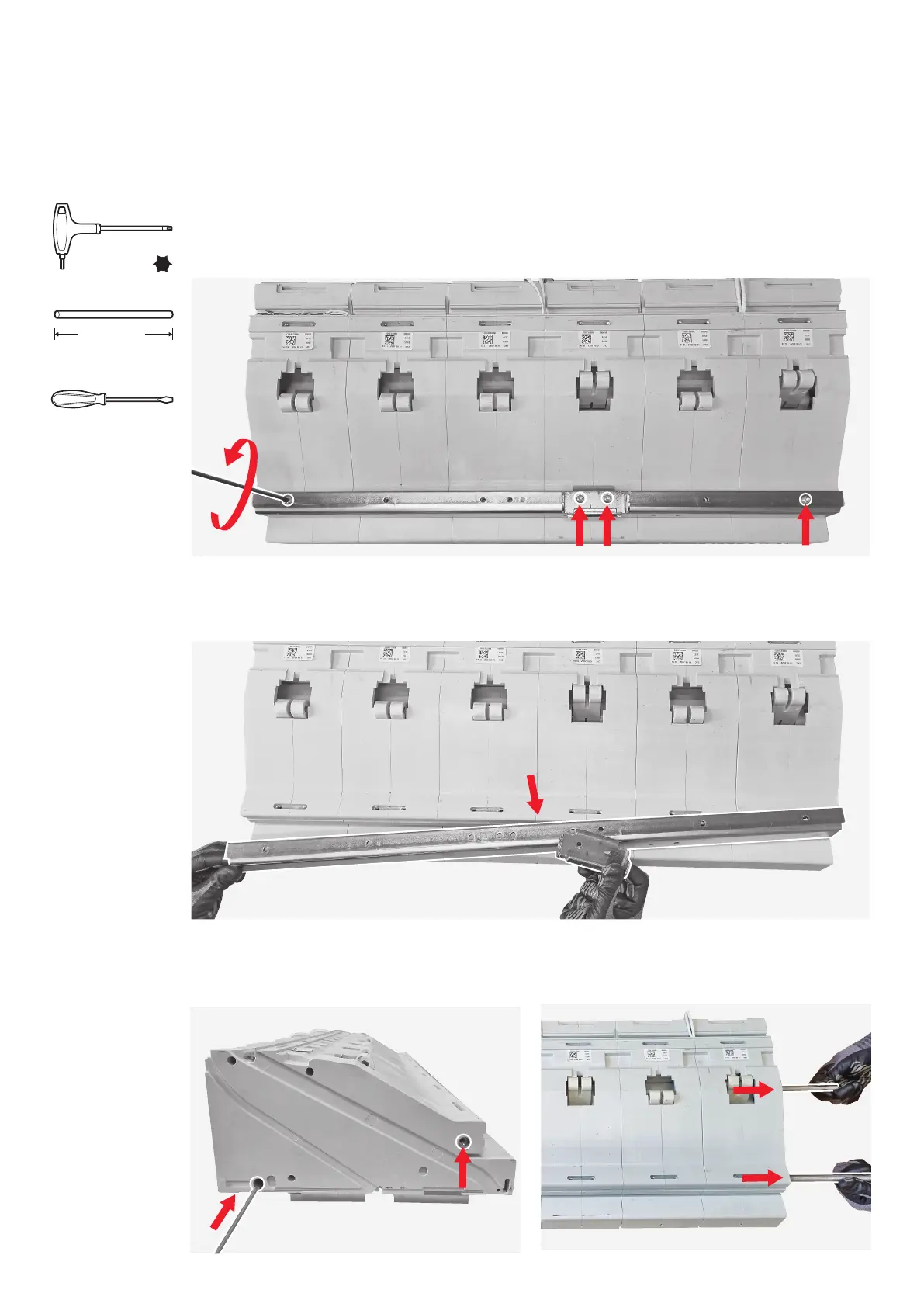

6.11 PHASE 11 – POLES SEPARATION
Actions to be performed
Tools
211
By means of the torx key unscrew the 4 screws fixing the operating mechanism fixing plate and
the lower cross beam to the poles.
212
Manually remove the operating mechanism fixing plate and the lower cross beam.
214
Manually pull the 2 tie rods in order to
complete the removal.
213
By means of the rod push as indicated by the
arrow the 2 tie rods.
Flat screwdriver
Torx key
Rod Ø5mm
No. 30
Min. 200mm
