6.12 PHASE 12 – TERMINALS AND CLAW CONTACTS
Actions to be performed
Tools
216

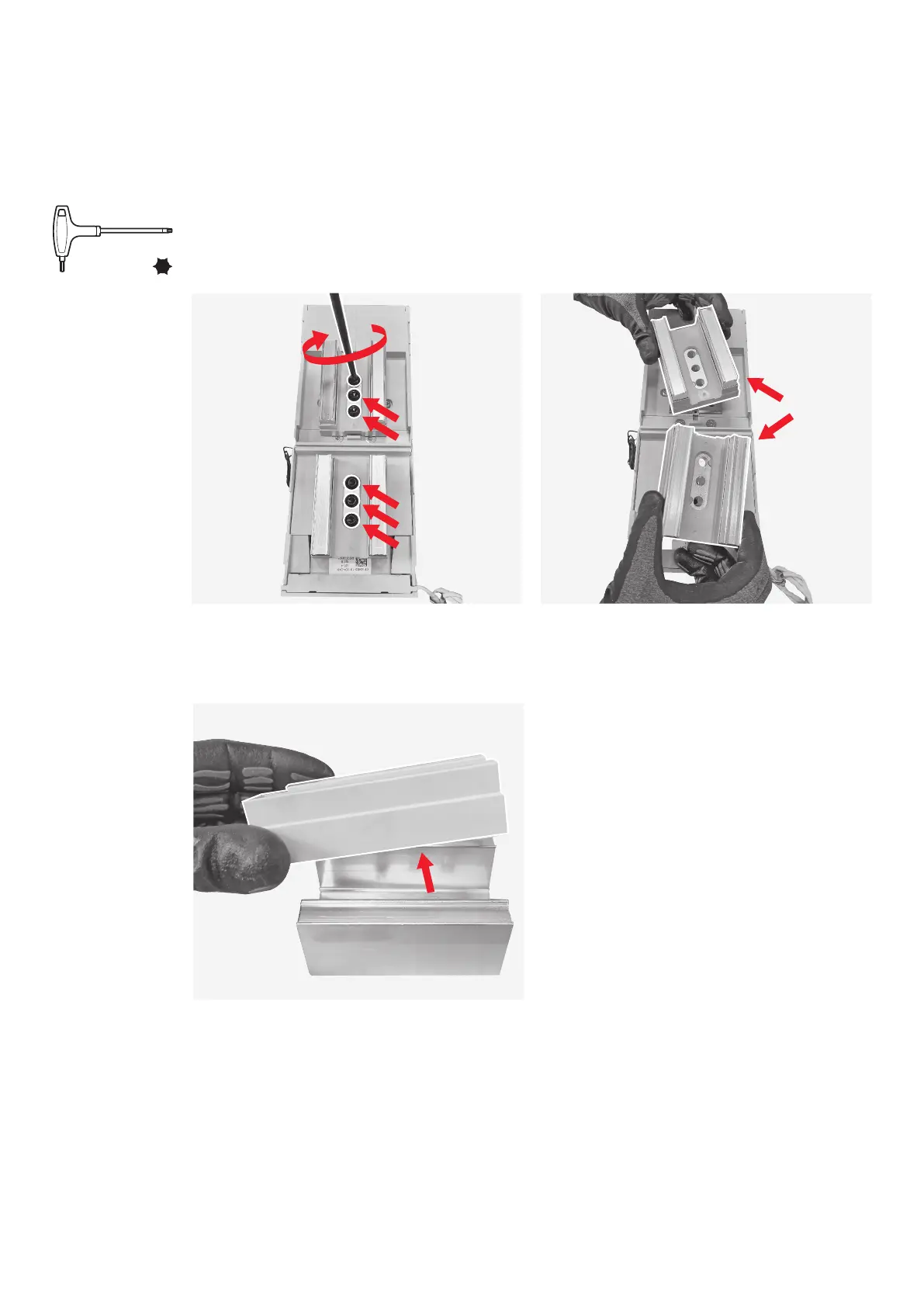

By means of the torx key (size 40) unscrew
the 6 screws fixing the terminals and their
protections to the pole.
218
Manually separate the terminals and their
protections.
217
Manually remove the terminals and their
protections.
Torx key
No. 40
Disassembly operations illustrated at pictures 216, 217 and 218 must be performed on the
other 5 poles.
