Disassembly instruction emaX 2 e6.2
6.8 PHASE 8 – SHOULDERS
Actions to be performed
Tools
No. 30
Flat screwdriver
Cutter
Torx key
160

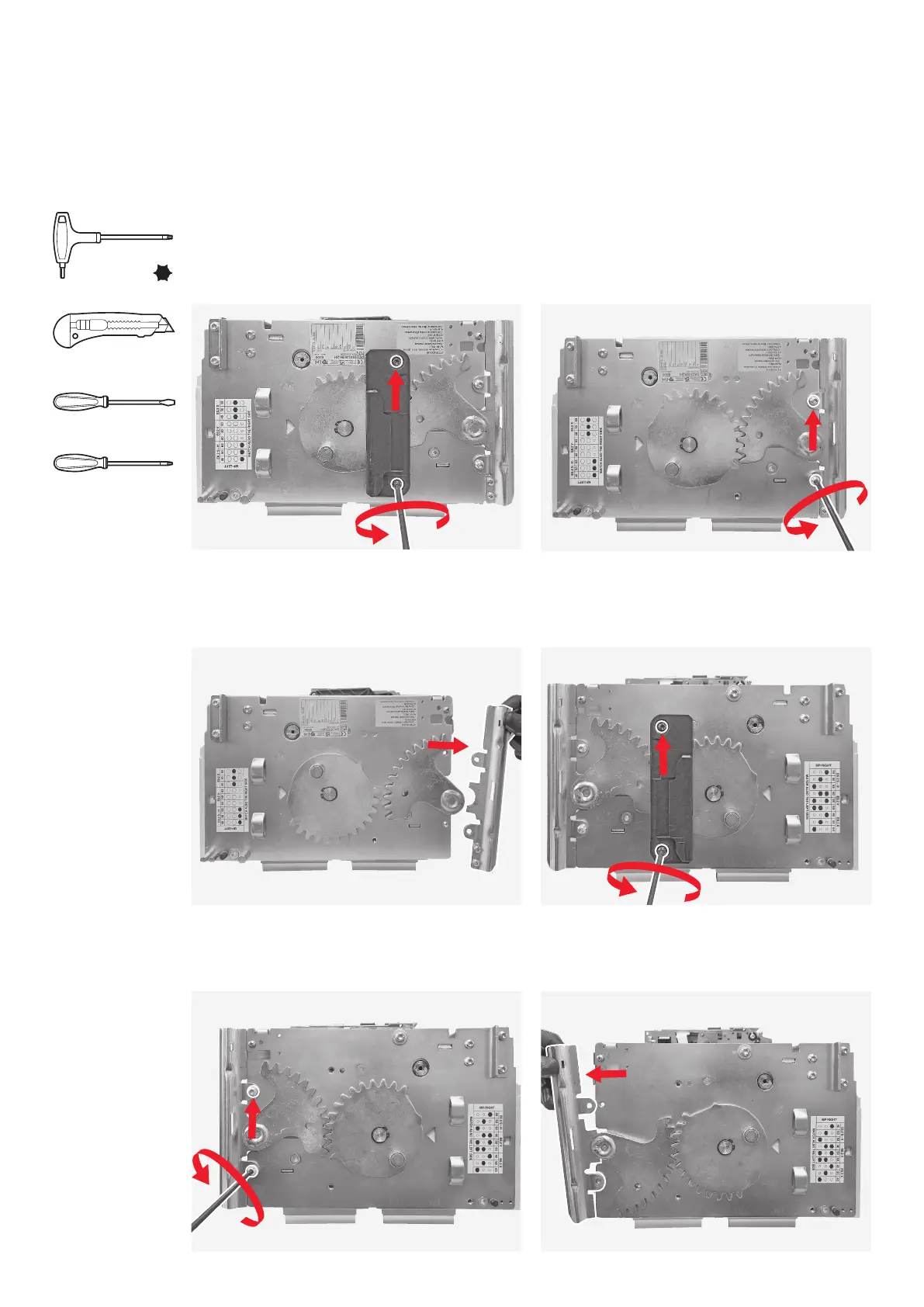

Put the circuit breaker in horizontal position
and by means of the torx key unscrew the 2
screws fixing the docking support to the left
shoulder and after manually remove it.
163
By means of the torx key unscrew the 2
screws fixing the docking support to the right
shoulder and after manually remove it.
165
Manually remove the right support from the
right shoulder.
162
Manually remove the left support from the left
shoulder.
164
By means of the torx key unscrew the 2 screws
fixing the right support to the right shoulder.
161
By means of the torx key unscrew the 2 screws
fixing the left support to the left shoulder.
Cross screwdriver
