42
INSTRUCTION HANDBOOK
168

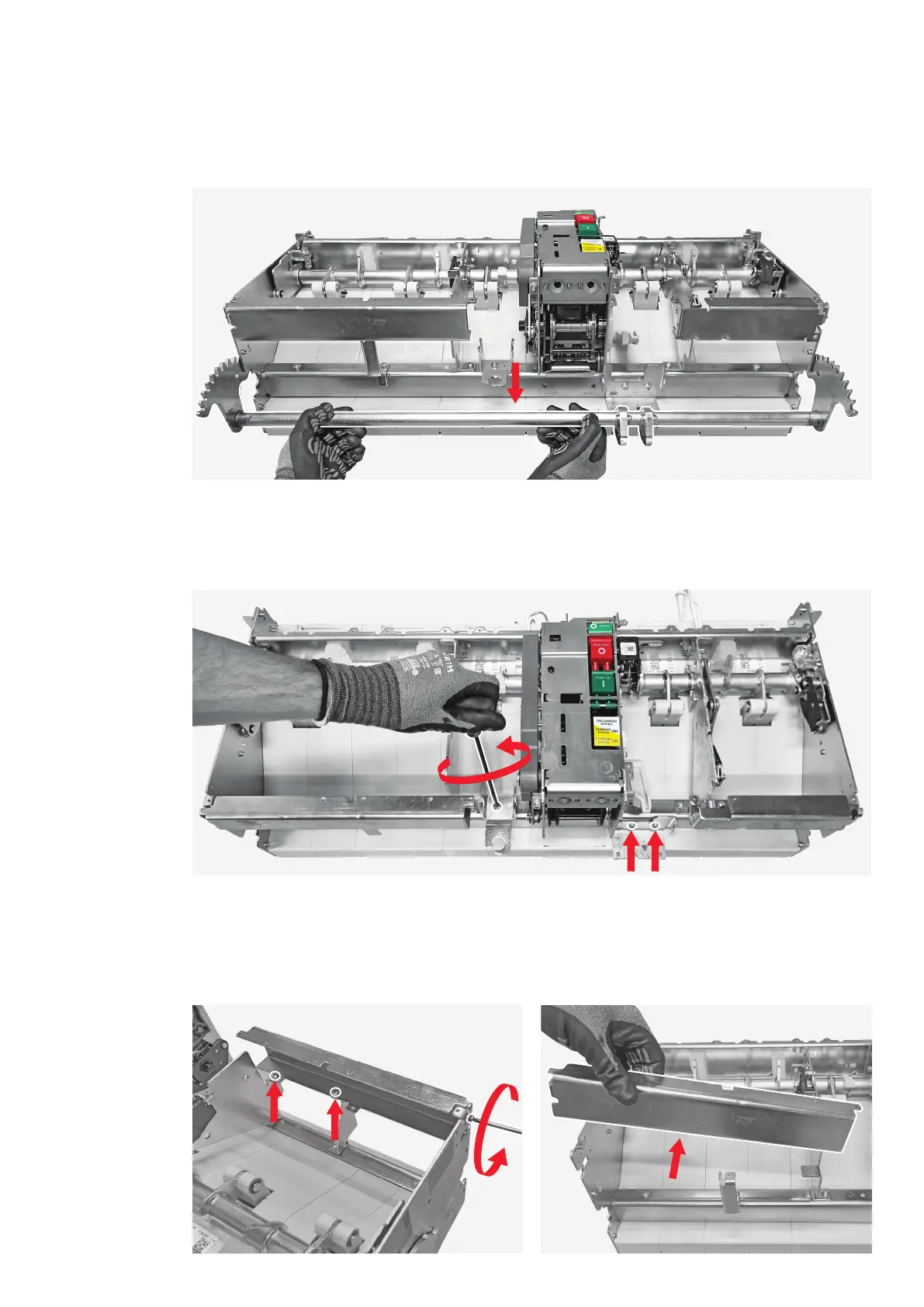

By means of the cross screwdriver unscrew the
3 screws fixing the left support to the circuit
breaker main structure.
169
Manually remove the left support.
167
By means of the torx key unscrew the 3 screws fixing the motor fixing plate and the support
mounted in the bottom part of the circuit breaker main structure and after manually remove the
motor fixing plate and the support.
166
Manually remove the assembly shaft.
