ABB EMAX 2 E6.2 - 6.7 PHASE 7 - MID

35

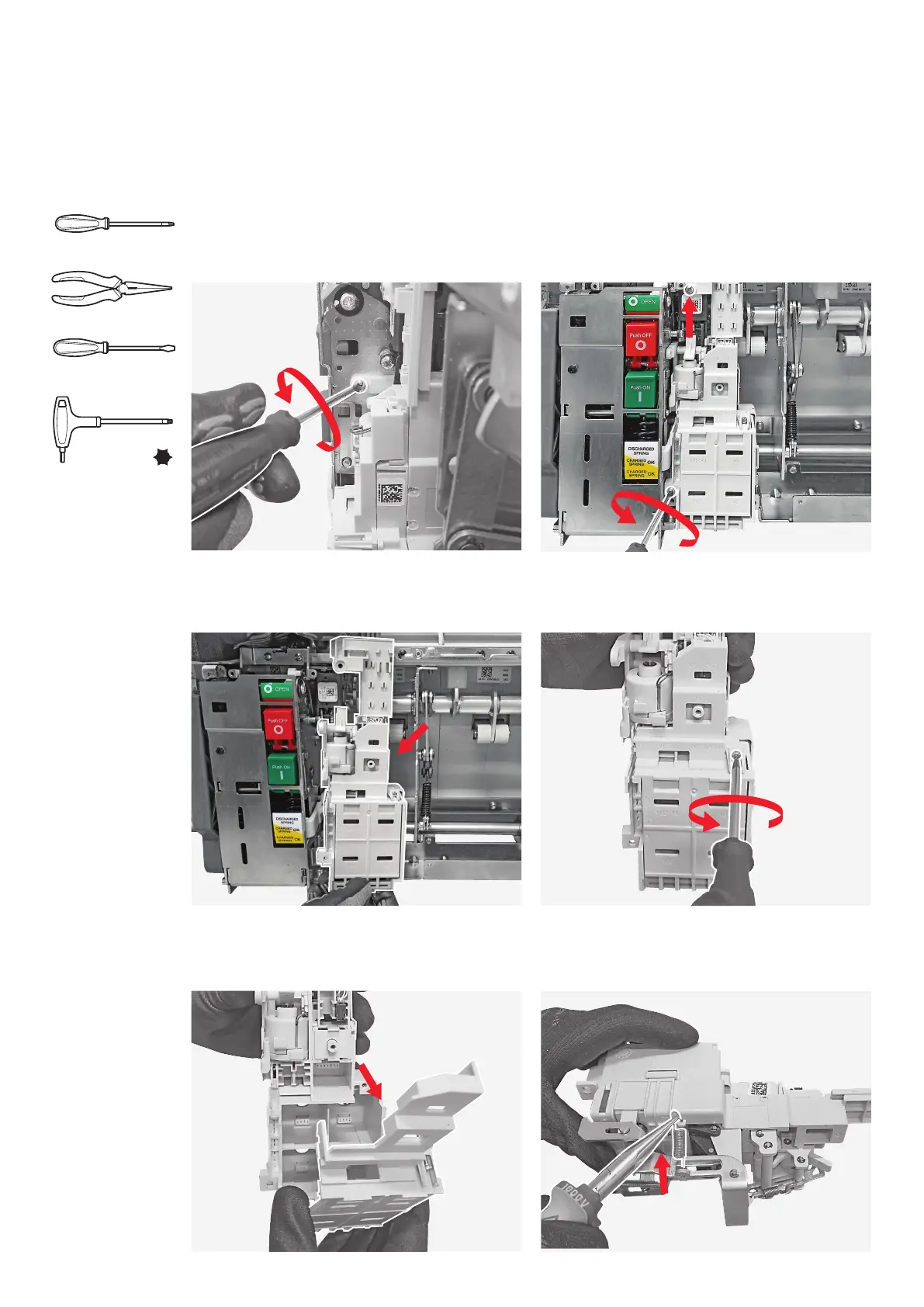

Disassembly instruction emaX 2 e6.2
6.7 PHASE 7 – MID
Actions to be performed
Tools
No. 8
No. 6
Pliers
Flat screwdriver
Torx key
130
By means of the cross screwdriver unscrew
the screw fixing the MID to the circuit breaker
main structure.
133
By means of the cross screwdriver unscrew the
screw fixing the releases door to the MID main
structure.
132
Manually remove the MID.
135
By means of the pliers unhook and remove the
spring indicated by the arrow mounted on the
MID main structure.
134
Manually remove the releases door.
131
By means of the cross screwdriver unscrew the
2 screws fixing the MID to the circuit breaker
main structure.
Cross screwdriver
