ABB EMAX 2 E6.2 - 6.5 PHASE 5 - LEFT MID, CABLE GUIDE AND CS ADAPTER

27
Disassembly instruction emaX 2 e6.2

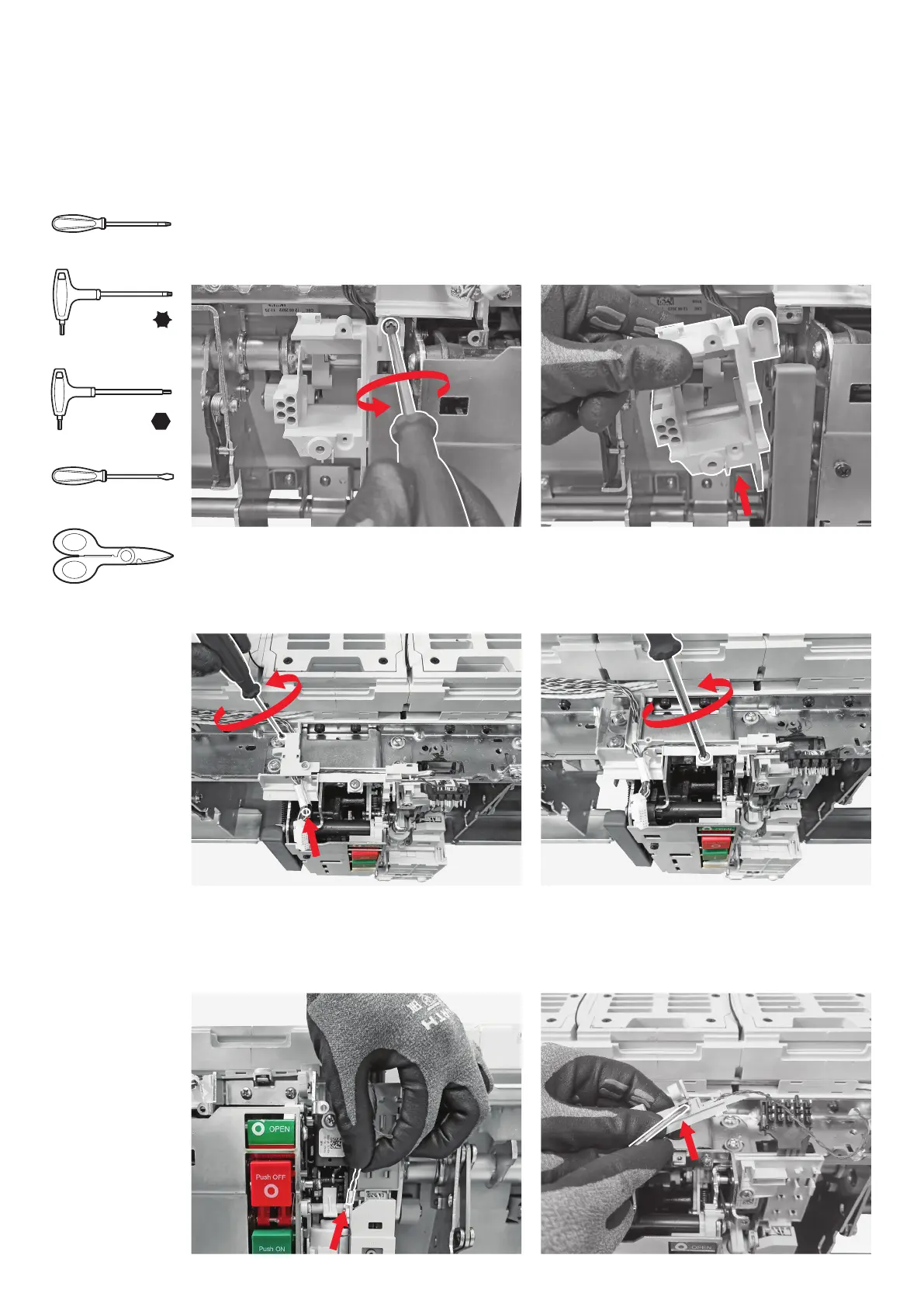

6.5 PHASE 5 – LEFT MID, CABLE GUIDE AND CS ADAPTER
Actions to be performed
Tools
No. 8
Torx key
Allen key
100
By means of the cross screwdriver unscrew the
screw fixing the left MID to the circuit breaker
main structure.
103
By means of the cross screwdriver unscrew
the screw fixing the cable guide to the circuit
breaker main structure.
105
By means of the flat screwdriver unhook the
flap from the cable guide and complete the
removal of the cable guide.
102
By means of the torx key unscrew the 2 screws
fixing the cable guide to the circuit breaker
main structure.
104
Manually unhook the connector fixing the cable
guide to the circuit breaker main structure.
101
Manually remove the left MID from the circuit
breaker main structure.
Cross screwdriver
4mm
Flat screwdriver
Scissors
