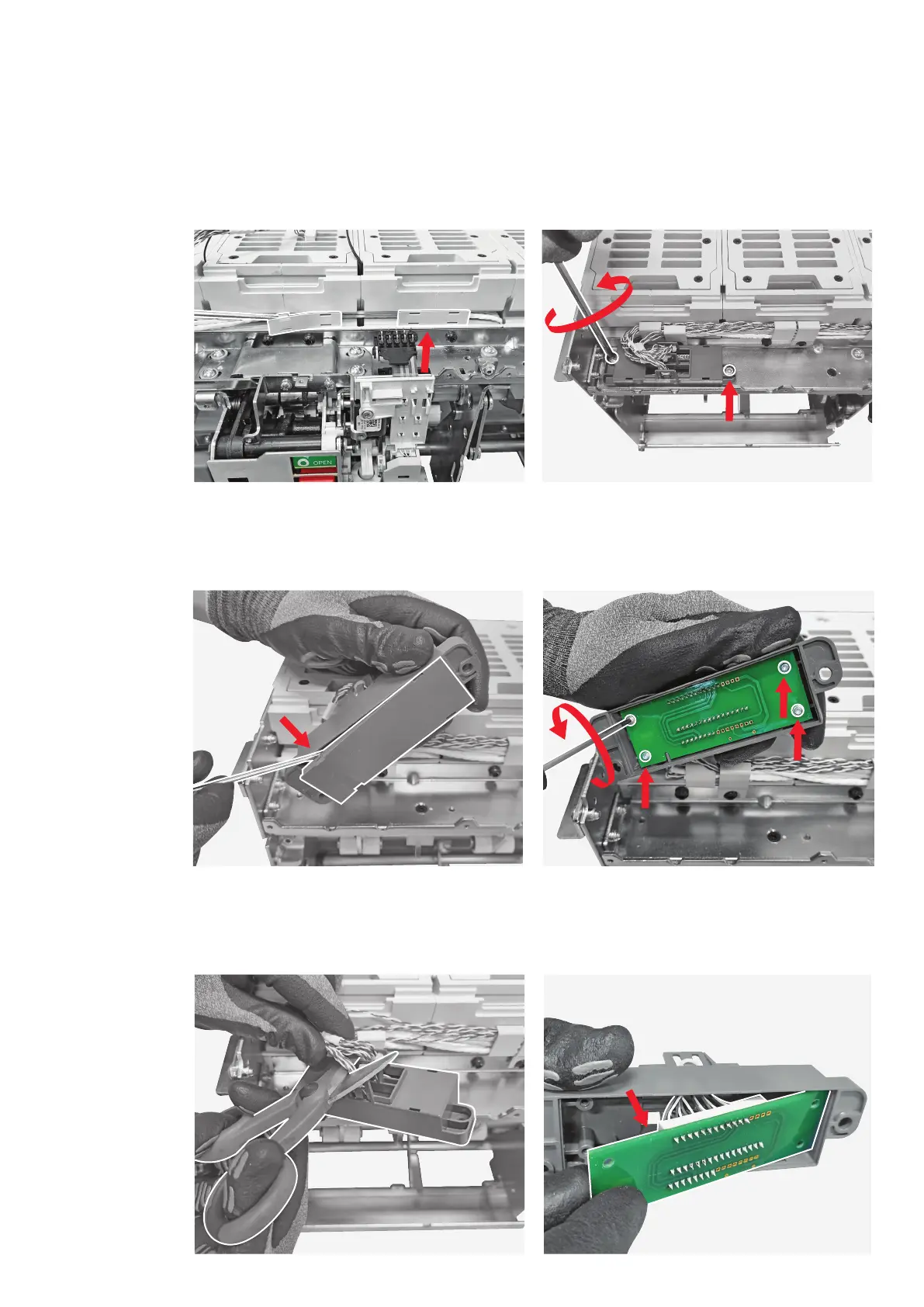

By means of the flat screwdriver unhook the CS
adapter box from the CS adapter.
110
By means of the scissors cut the cables
connecting the CS adapter printed circuit
board to the circuit breaker main structure.
109
By means of the torx key unscrew the 4 screws
fixing the CS adapter printed circuit board
from the CS adapter.
111
Manually remove the CS adapter printed circuit
board.
107
By means of the allen key unscrew the 2 screws
fixing the CS adapter to the circuit breaker
main structure.
106
By means of the flat screwdriver remove the 2
clips and after manually complete the removal.
