ABB EMAX 2 E6.2 - 6.10 PHASE 10 - OPERATING SHAFT ASSEMBLY

51
Disassembly instruction emaX 2 e6.2
6.10 PHASE 10 – OPERATING SHAFT ASSEMBLY
Actions to be performed
Tools
Cross screwdriver
Torx key
No. 30
Flat screwdriver

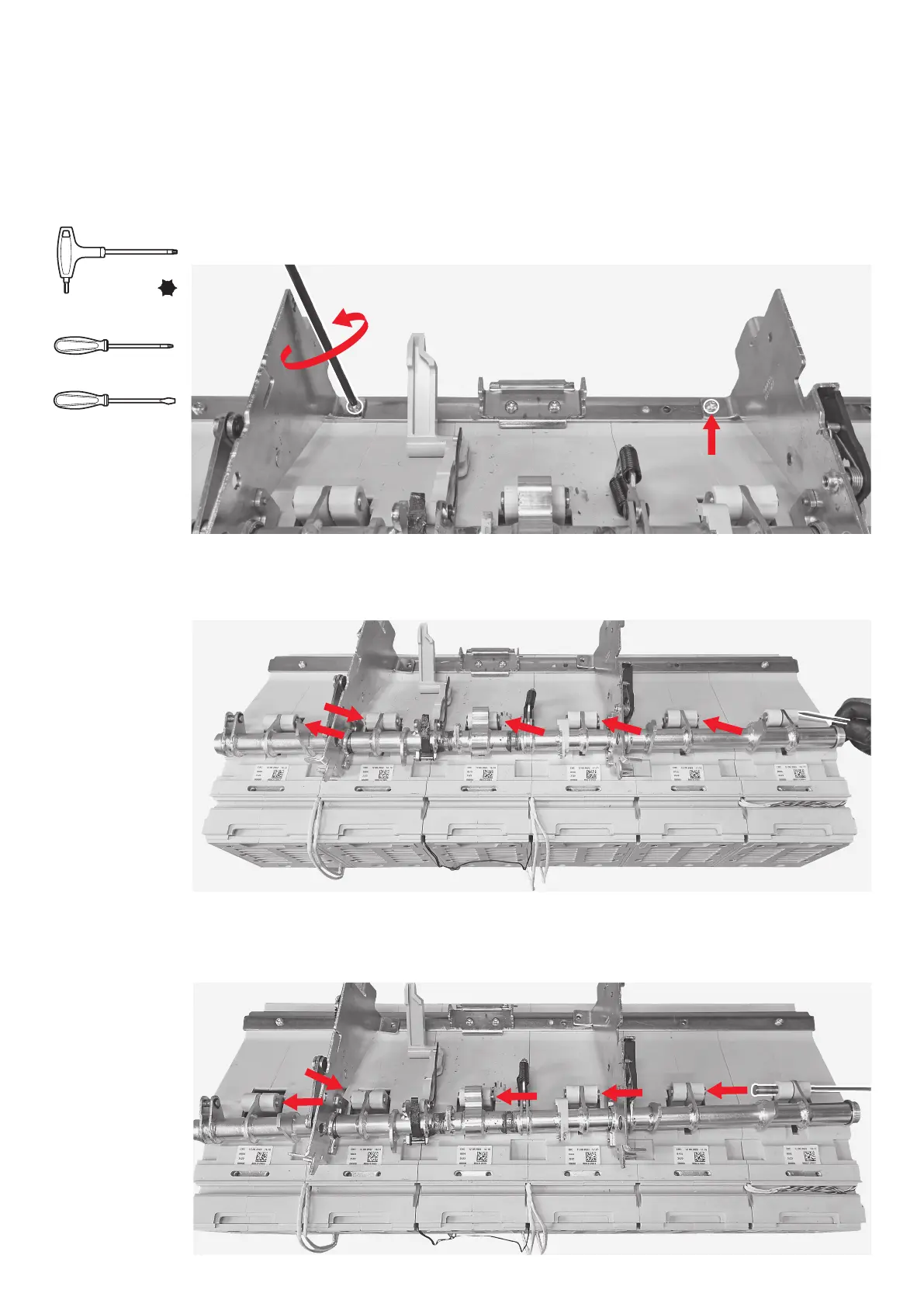

201
By means of the torx key unscrew the 2 screws fixing the 2 intermediate plates to the circuit
breaker main structure.
202
Manually lift the operating shaft assembly and by means of the flat screwdriver remove the 6
benzings.
203
Manually lift the operating shaft assembly and by means of the flat screwdriver remove the 6
pins.
