ABB EMAX 2 E6.2 - Page 36

36
INSTRUCTION HANDBOOK

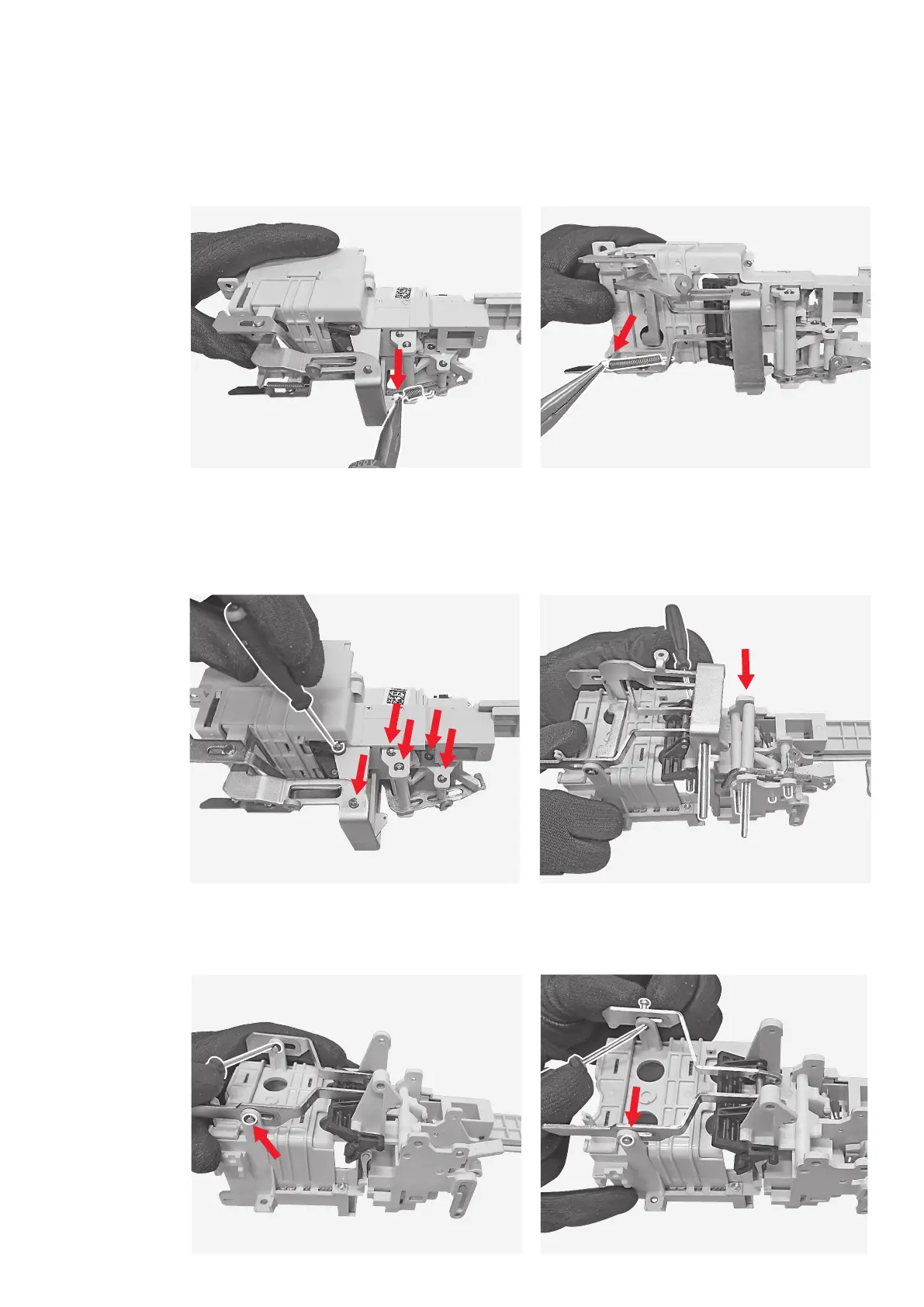

138
By means of the flat screwdriver remove the 6
benzings.
140
By means of the flat screwdriver remove the 2
benzings.
139
By means of the flat screwdriver, manually and
by gravity remove the parts (6 pins, 2 springs,
2 metal parts and 3 plastic parts) from the MID
main structure.
141
By means of the flat screwdriver remove the 2
pins.
137
By means of the pliers unhook and remove the
spring indicated by the arrow mounted on the
MID main structure.
136
By means of the pliers unhook and remove the
spring indicated by the arrow mounted on the
MID main structure.
