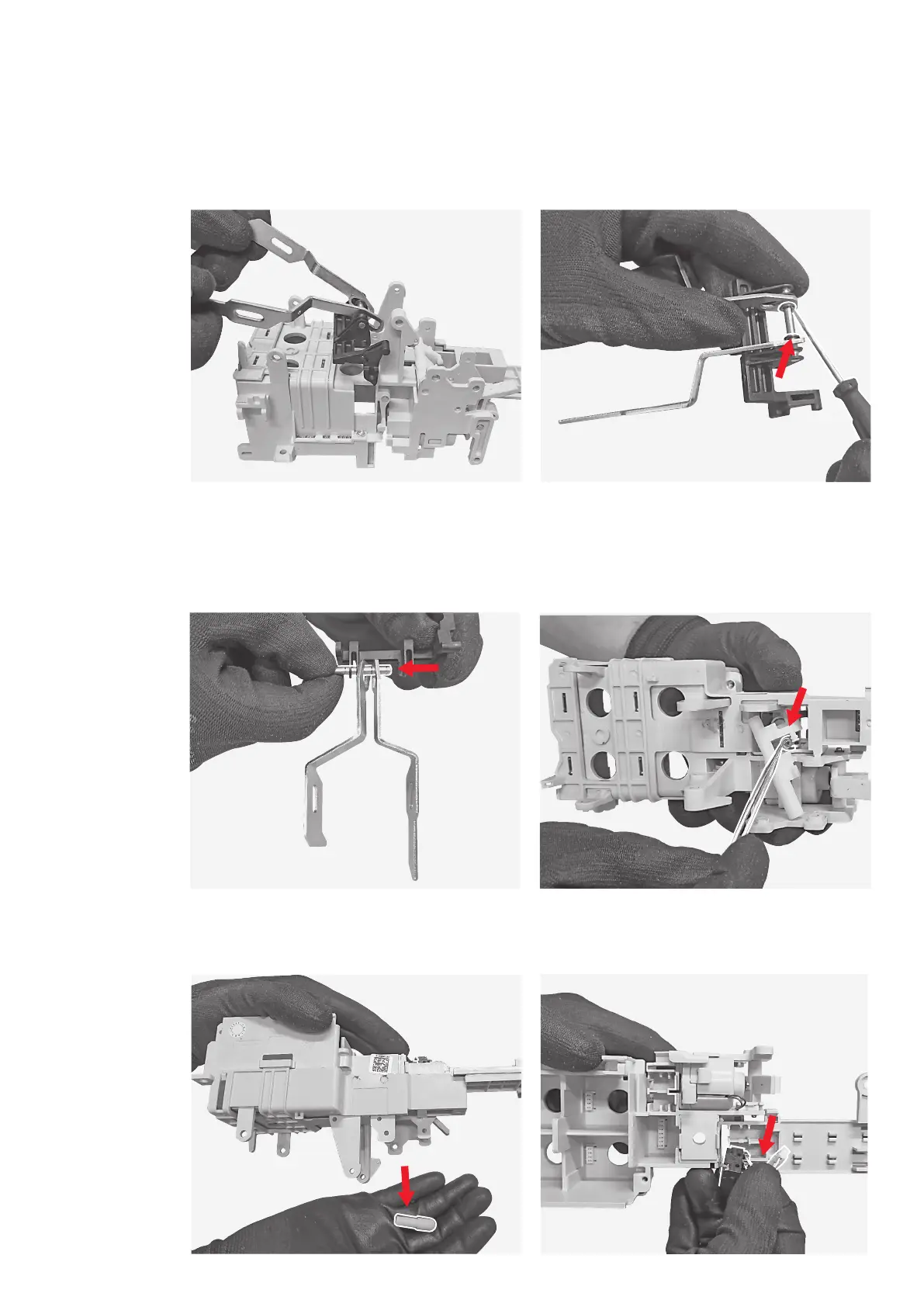

Disassembly instruction emaX 2 e6.2
144
Manually remove the pin and let all the other
components constituting the assembly
mounted on the MID main structure (2 metal
parts and 1 plastic part) separate.
146
Let fall by gravity the mechanical reset anchor.
145
By means of the pliers unhook the spring and
let the spring and the MID reset lever fall by
gravity.
147
Manually remove the microswitch.
143
By means of the flat screwdriver remove the 2
benzings mounted on the assembly mounted
on the MID main structure.
142
Manually remove the assembly mounted on the
MID main structure.
