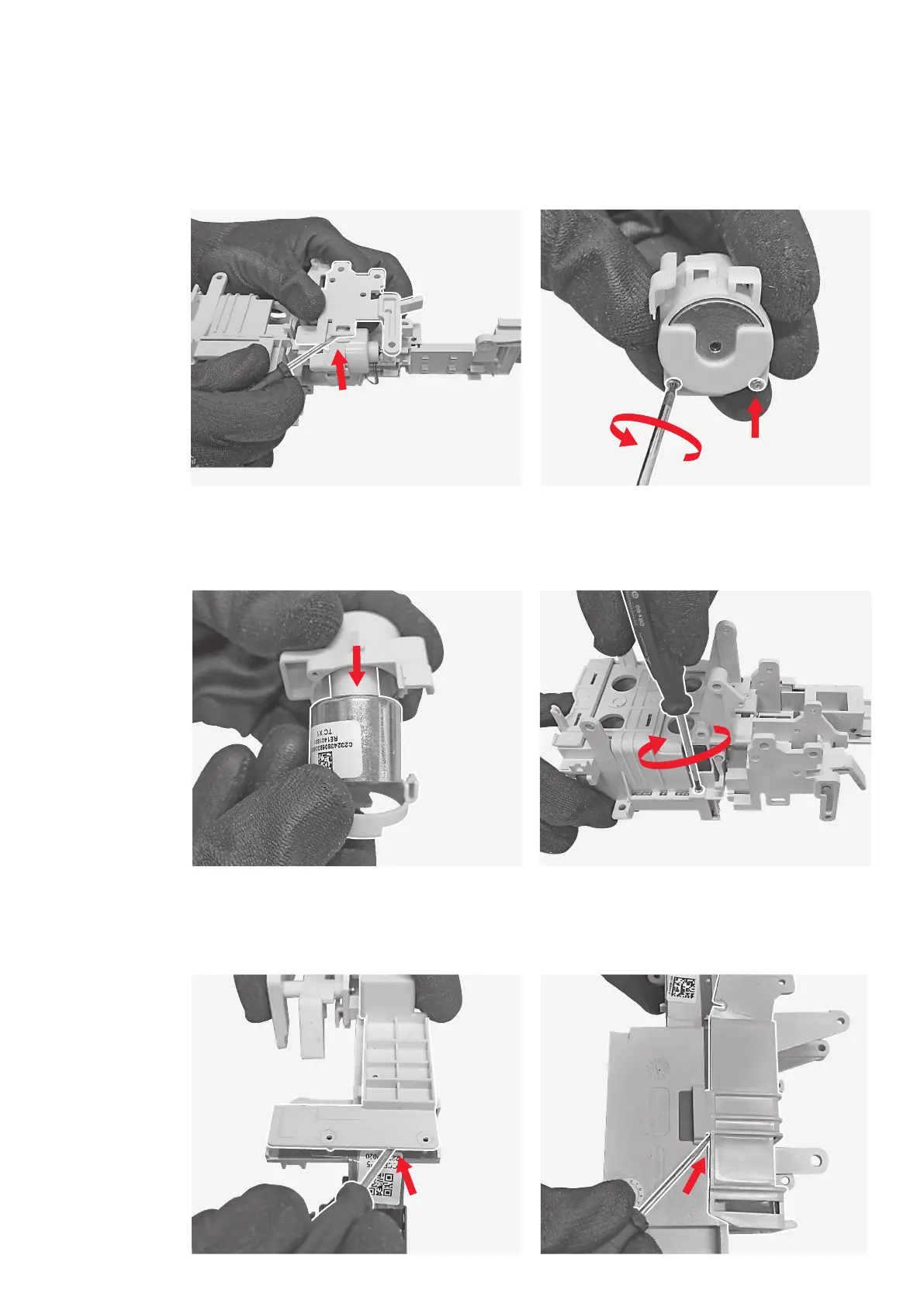

Manually separate the trip coil support base,
the trip coil cover and the trip coil
152
By means of the flat screwdriver unhook as
indicated by the arrow the flat cover from the
MID main structure.
151
By means of the torx key (size 8) unscrew the
screw fixing the flat cover to the MID main
structure.
153
By means of the flat screwdriver unhook as
indicated by the arrowthe flat cover from the
MID main structure.
149
By means of the torx key (size 6) unscrew the 2
screws fixing the trip coil support base to the
trip coil cover.
148
By means of the flat screwdriver slightly lift
up the appendix as indicated by the arrow and
manually remove the trip coil assembly.
