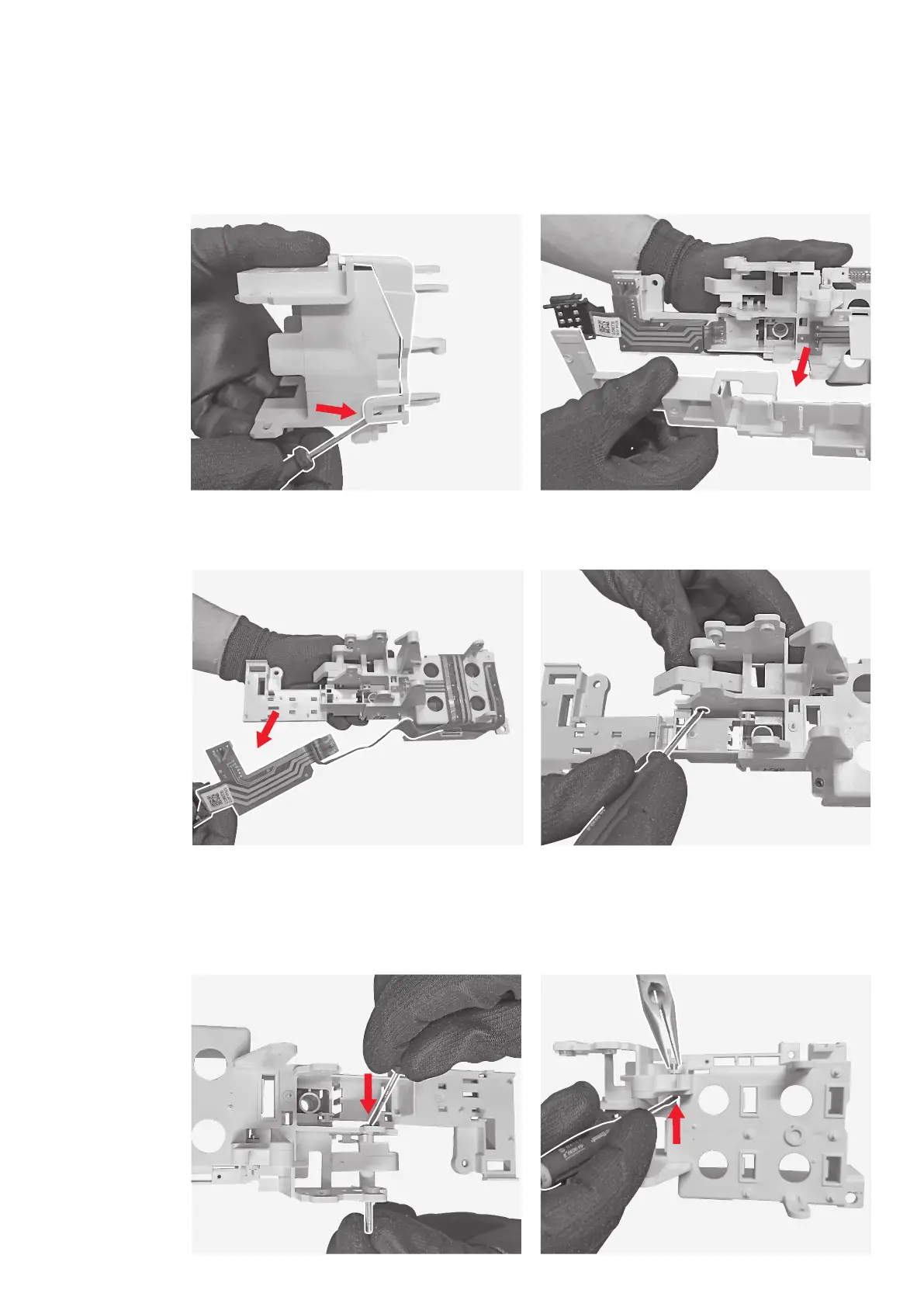

Disassembly instruction emaX 2 e6.2
156
Manually remove the auxiliary flat assembly.
158
By means of the flat screwdriver push the pin
as indicated by the arrow and after manually
remove the pin and the SA lever.
157
By means of the flat screwdriver remove the
benzing.
159
By means of the flat screwdriver push the pin
as indicated by the arrow and after by means
of the pliers remove the pin; the RTC micro
lever will fall by gravity.
155
Manually remove the flat cover.
154
By means of the flat screwdriver unhook as
indicated by the arrow the flat cover from the
MID main structure.
