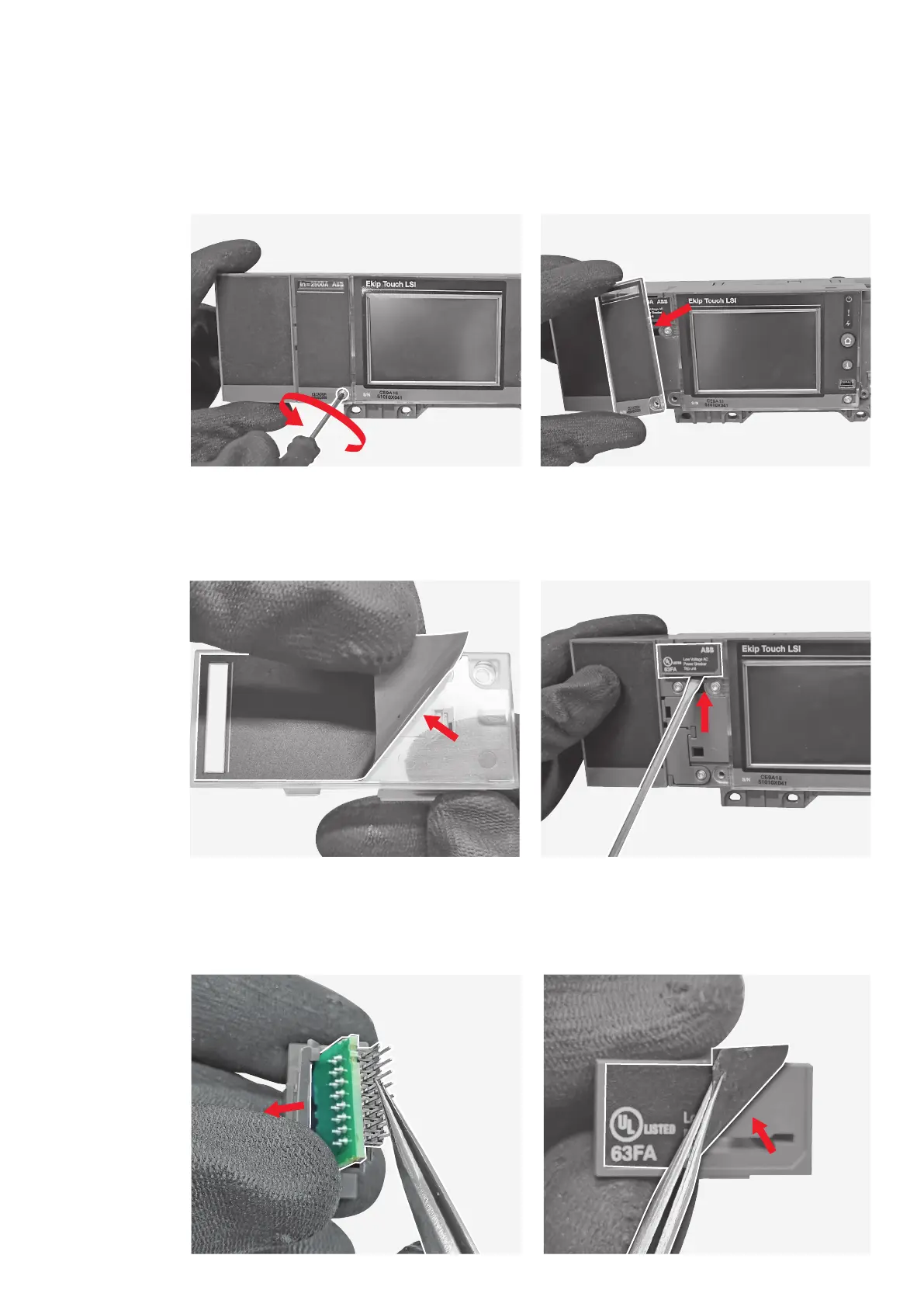

Disassembly instruction emaX 2 e6.2
51
By means of the cutter start removing the label
mounted over the plug removed at step before
and manually complete the removal operation.
53
Manually push the rating plug case appendix
as indicated by the arrow and by means of the
pliers remove the rating plug printed circuit
board.
52
By means of the flat screwdriver remove the
rating plug from the trip unit.
54
By means of the cutter start removing the label
located on the front of the rating plug case and
by means of the pliers complete the operation.
50
Manually remove the plug.
49
By means of the torx key unscrew the screw
fixing the plug to the trip unit.
