32
INSTRUCTION HANDBOOK
123

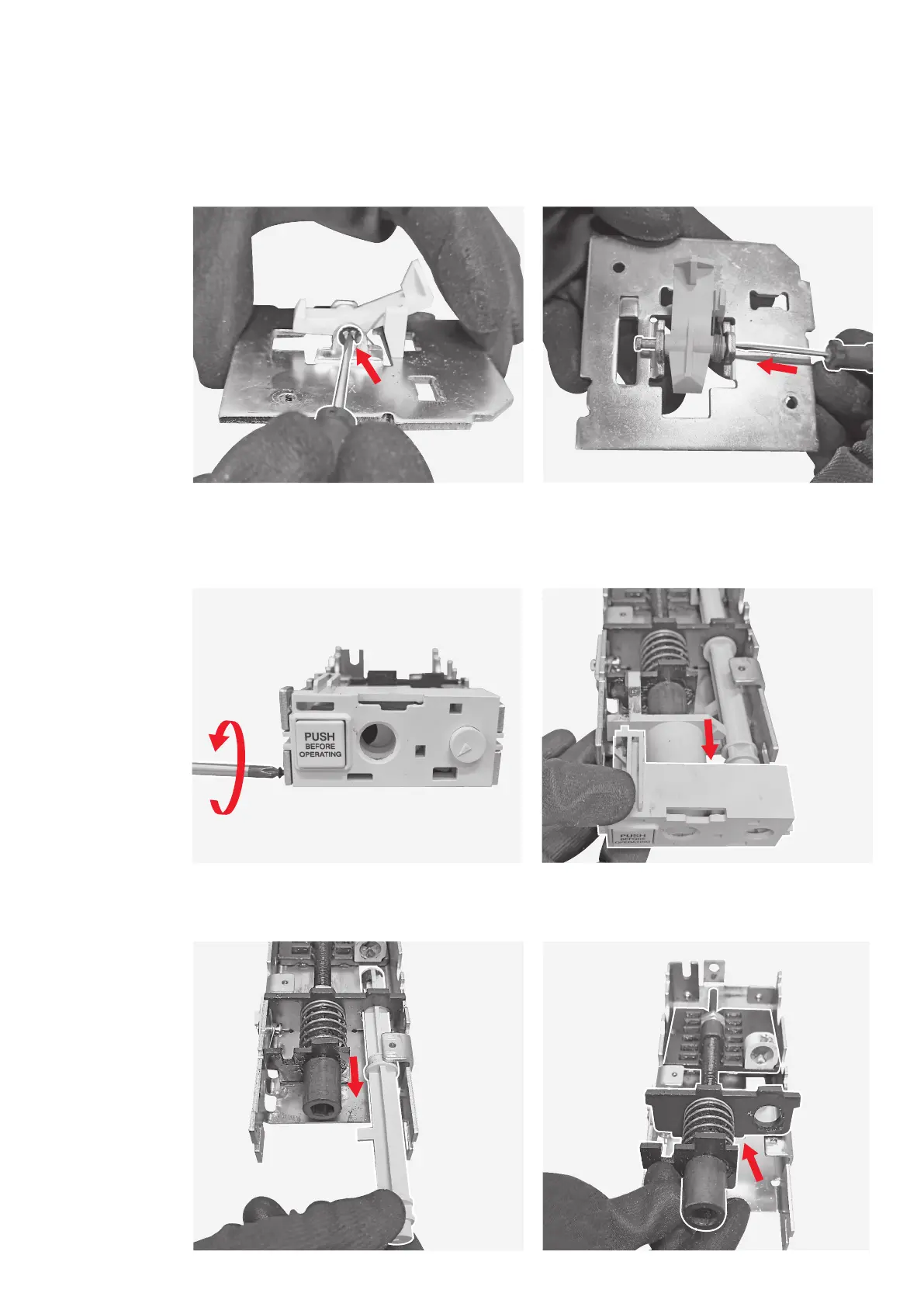

By means of the cross screwdriver unscrew the
2 screws fixing the front of the CD to the CD
main structure.
125
Manually remove the position indicator.
124
Manually remove the front of the CD.
126
Manually remove the screw group.
122
By means of the flat screwdriver push the pin
as indicated by the arrow and let the spring and
the CD block cover separate from the cover.
121
By means of flat screwdriver remove the
benzing.
