Disassembly instruction emaX 2 e6.2
7

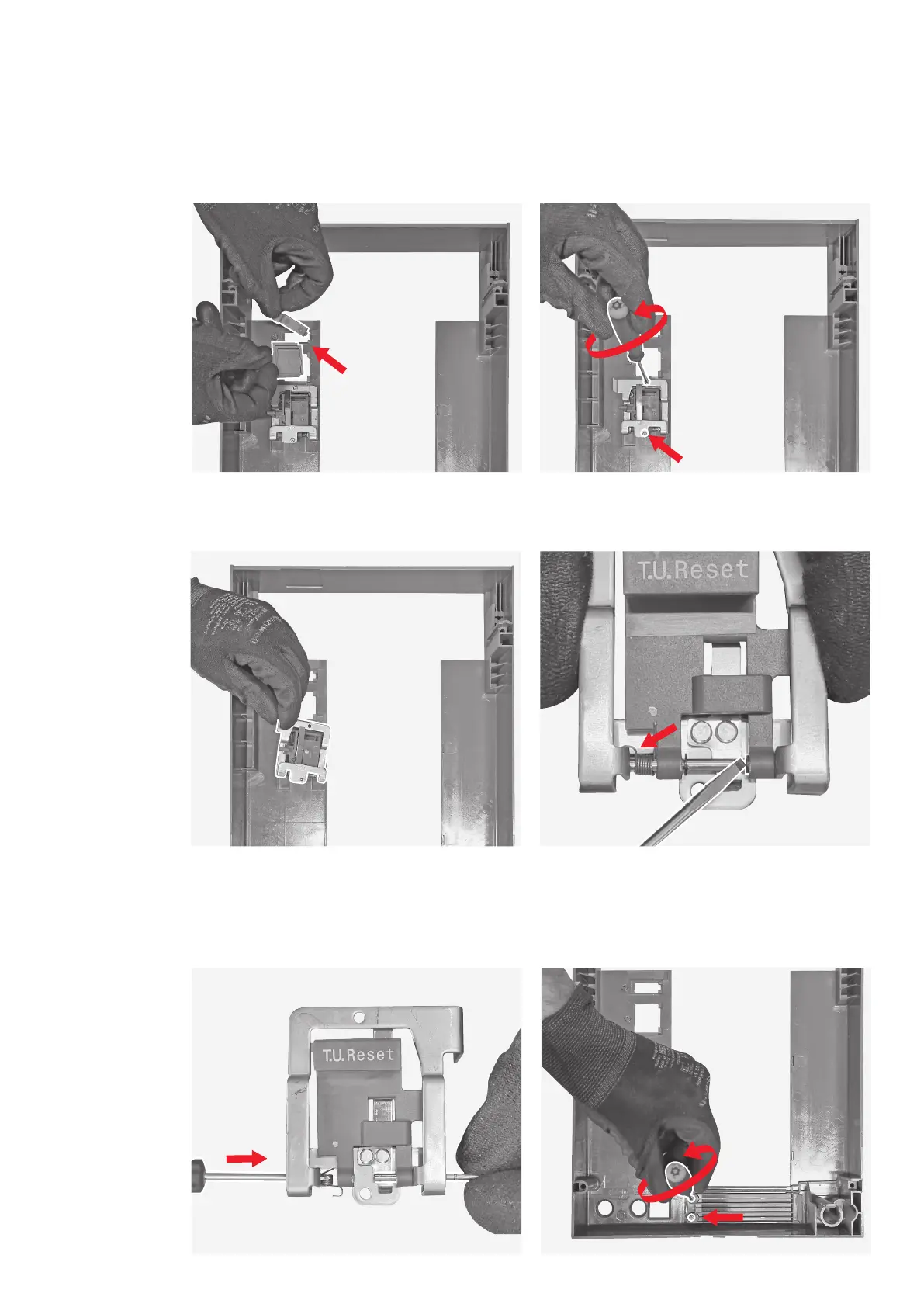

Manually remove the 2 plugs.
8
By means of thr torx key unscrew the 2 screws
fixing the T.U. Reset assembly to the front
cover.
9
Manually remove the T.U. Reset assembly.
10
By means of the flat screwdriver remove the 2
benzings mounted on the T.U. Reset assembly.
11
By means of the flat screwdriver push the pin
as indicated by the arrow and after let the
the spring and the T.U. Reset signalling plug
automatically separate from the T.U. Reset
metal support.
12
By means of the torx key remove the 2 screws
fixing the plug to the circuit breaker front
cover.
