3.2 Installation

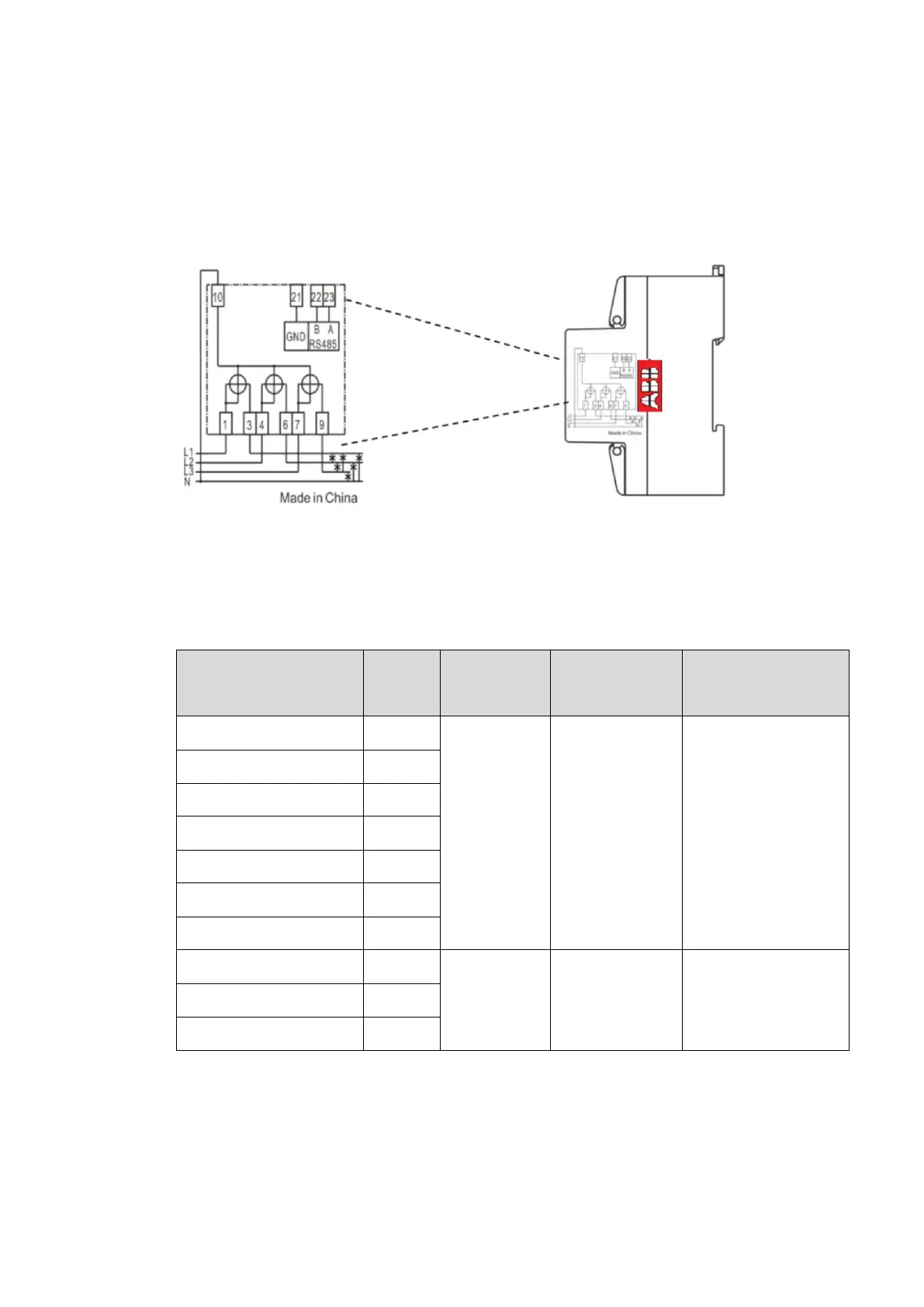

4 Connection diagram EV3
The connection diagram printed on the housing needs to be considered connecting the me-
ter to the mains power.
Terminal
Terminal
Nr
Terminal-
[mm]
Terminal screw
Torque M [Nm]
Current In L1
1
6,3 x 5,6
(L x W)
M4 Pozidrive PZ2
1,2 Nm< M <1,5Nm
Current Out L1
3
Current In L2
4
Current Out L2
6
Current In L3
7
Current Out L3
9
Voltage N
10
RS485 Interface GND
21
6,3 x 5,6
(L x W)
M3 Pozidrive PZ2
0,5 Nm <M <0,7Nm
RS485 Interface B
22
RS485 Interface A
23
