Import
5
OBIS Code
Identifier of the displayed value
5 User Buttons

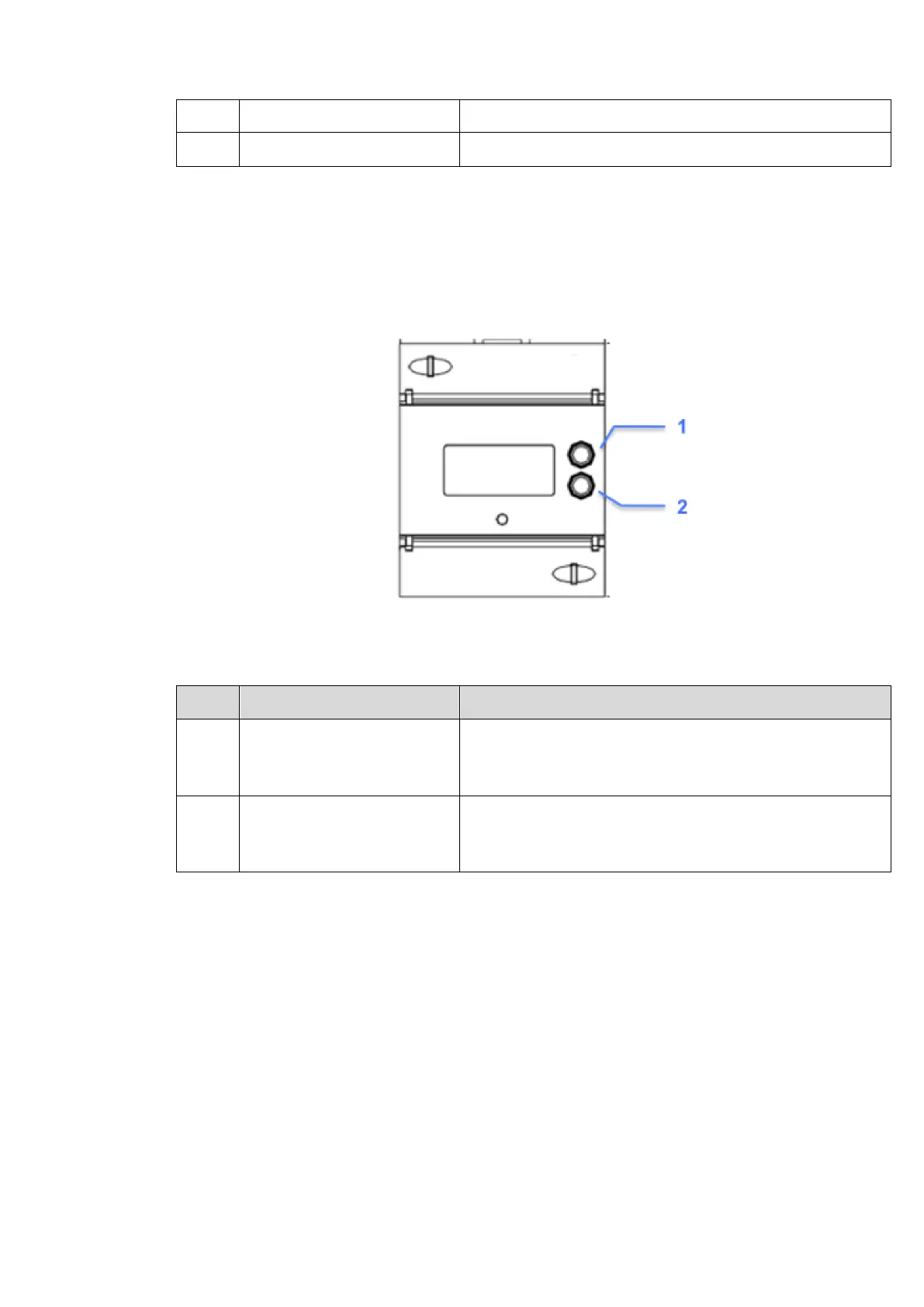

8 EV3 User buttons
Nr
Element
Function
1
Button „Up“
- Switch backlight of the LCD ON
- Scrolling the display items
- Enter display ALT Mode
2
Button „Down“
- Switch backlight of the LCD ON
- Scrolling the display items
- Enter display ALT Mode
The detailed functions of the buttons to switch into the different display modes is explained
under the chapter 8.4 Display Modes.
6 Test LED
The meter has one pulse LED for active energy with 1000 Imp/kWh.
The ON-time of a pulse is 40 ms.

ABB EV3 Specifications

General

Brand	ABB
Model	EV3
Category	Measuring Instruments
Language	English
