Maintenance 55

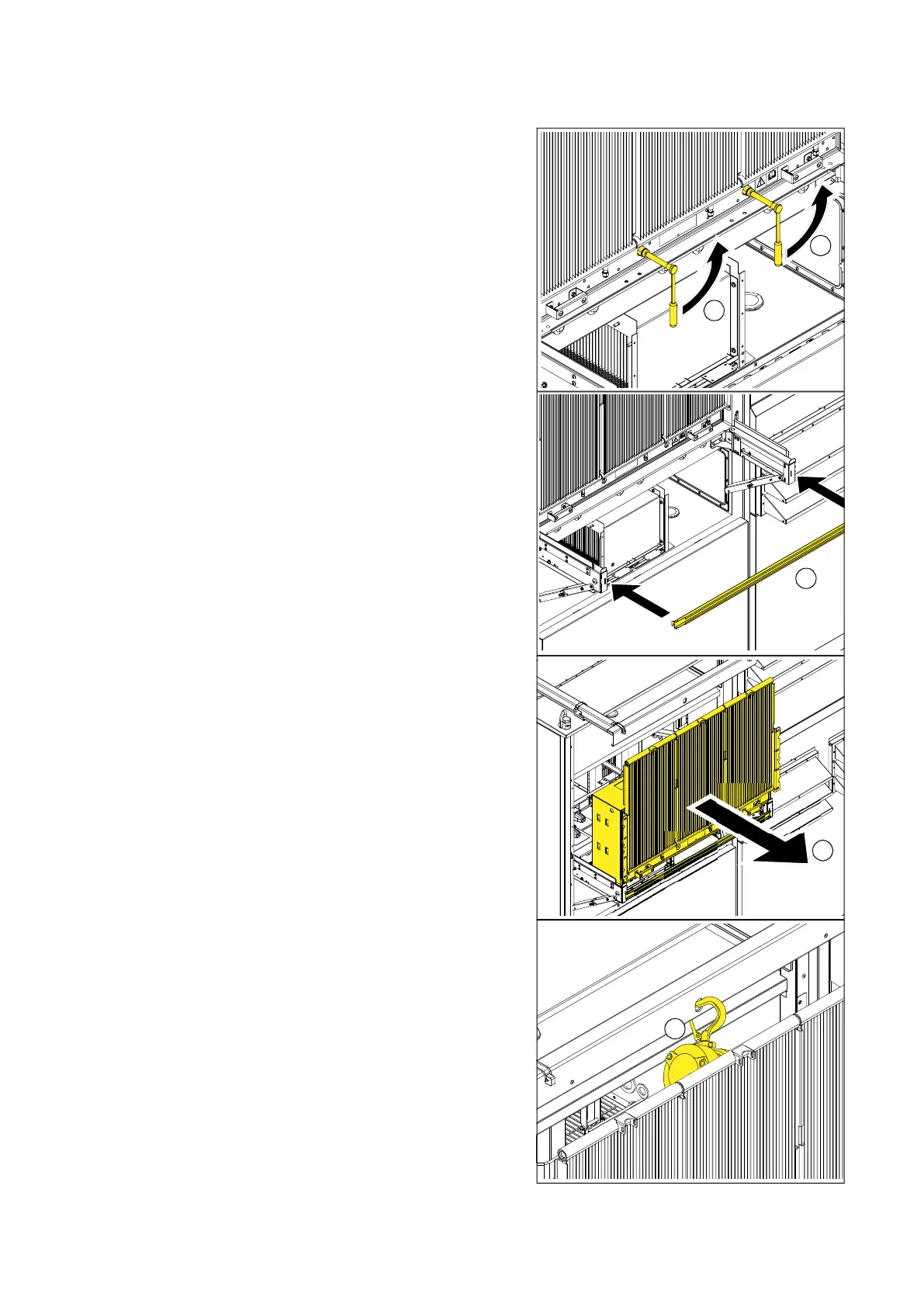

29. Turn the module extraction bolts ten turns
counter-clockwise until the module is loose.
30. Attach the extraction support bracket with
its flanges into slots on the end of extraction
support and push down.
31. Pull out the module onto the extraction
supports slowly until it hits the stopper of
the extraction support.
32. Attach the winch [4] hoist hook to the
support beam. Make sure that the hook lock
engages.
29
29
30
31
32
