1VSR630206EN – en – EDO-D0002852– Instruction manual – 2021.10 Design and specification are subject to change without notice
IMPORTANT!
Before connecting the portable power
supply all other auxiliary power supply shall
be disconnected or deactivated. The
rotative switch has to be in the service
position.

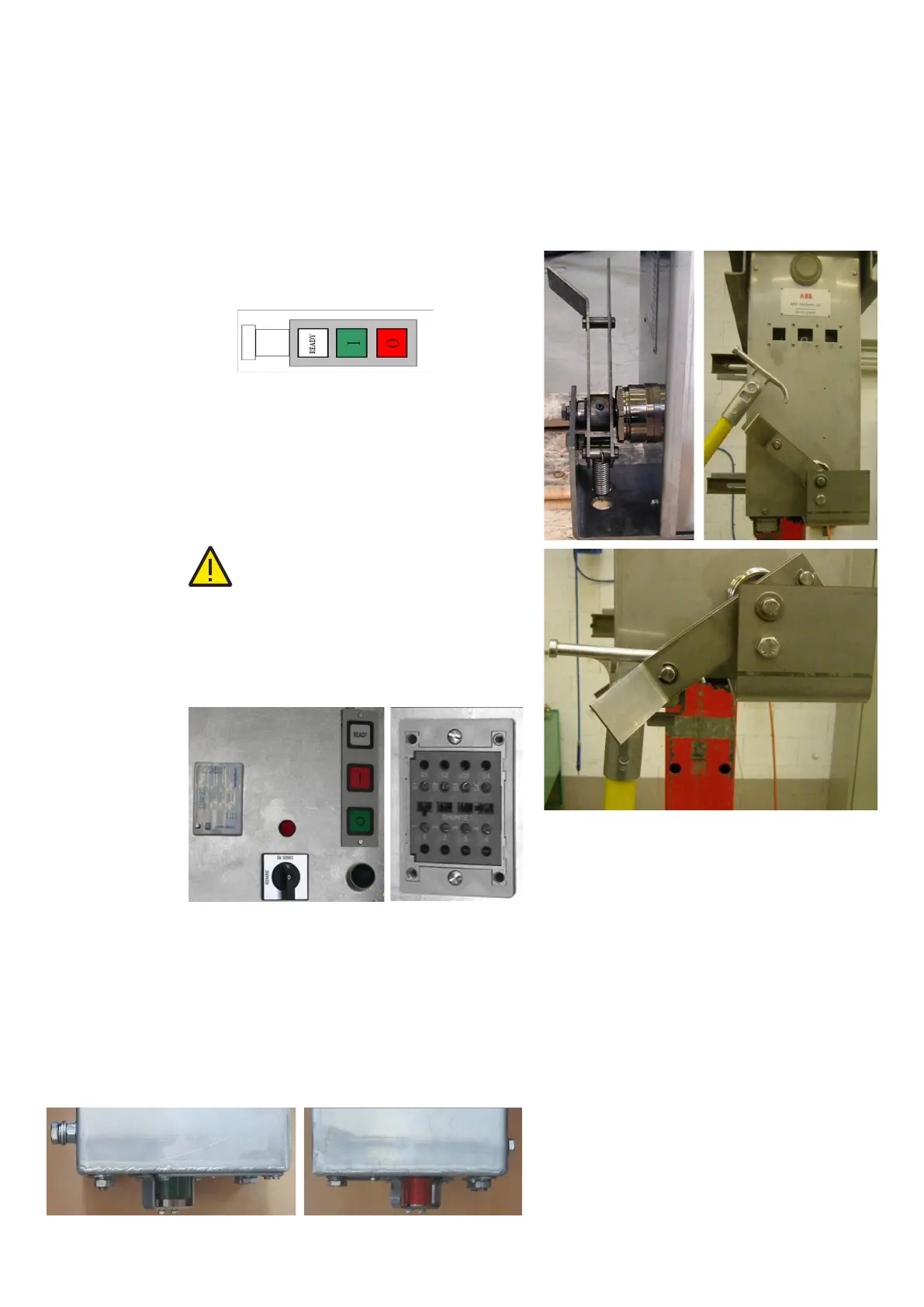

3.1.3. Control panel
A control panel is connected to the MABS control
pushbuttons. A READY indicator LED is underneath
the READY sign of the control panel and can be
varied according to specific customer requests,
e.g the colour scheme of the push buttons.
3.1.6. Manual opening from ground level (option)
A manual opening mechanism can be fitted onto
the breaker. With the help of an isolating hook
stick, the breaker can be opened manually from
ground level.
3.1.4. Connector for portable power supply
specific connector is accessible from the front
cover panel.
3.1.5. Mechanical position indication
A visual indication of the breaker open (green) or
close (red) can be seen from ground level. This
indication is located under the breaker.
