22
Installation and commissioning guide
1ZSC000563-ACF EN, REV. A, 2020-06-25

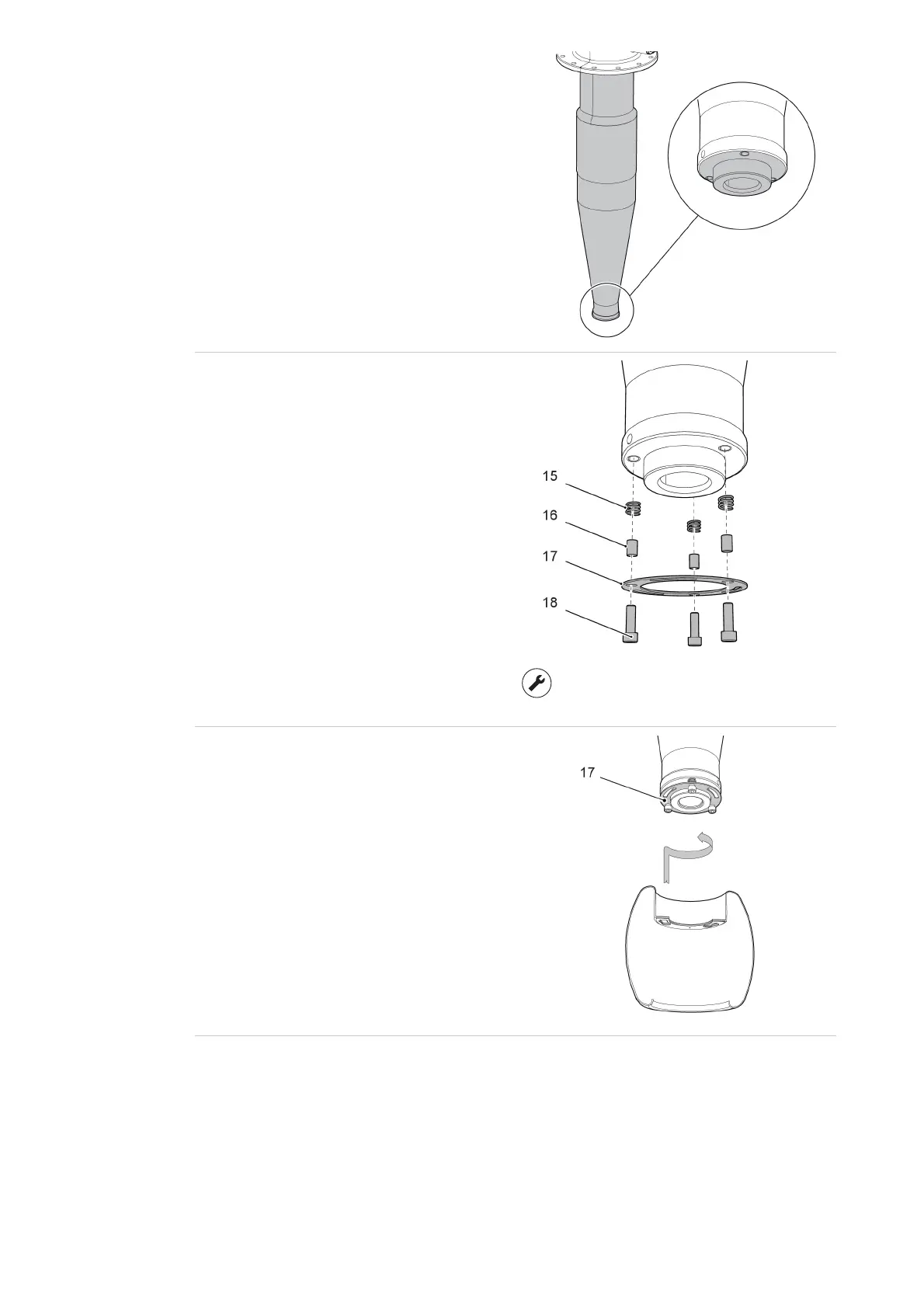

2. Carefully clean the oil-side of the bushing, and the
inside of the center hole. Look for damage.
G006850
3.
Install the springs (15), the guiding sleeves (16),
the pressing ring (17), and the M8 hex screws
(18) to the bottom end of the bushing.
G006851
Torque
40 Nm
4.
Install the end shield:
1. Push the end shield carefully against the
pressing ring (17), until the hex screw heads
come through the holes in the end shield.
2. Turn the end shield clockwise approximately
20°, to its locked position.
G003006
