Installation and commissioning guide
1ZSC000563-ACF EN, REV. A, 2020-06-25
23

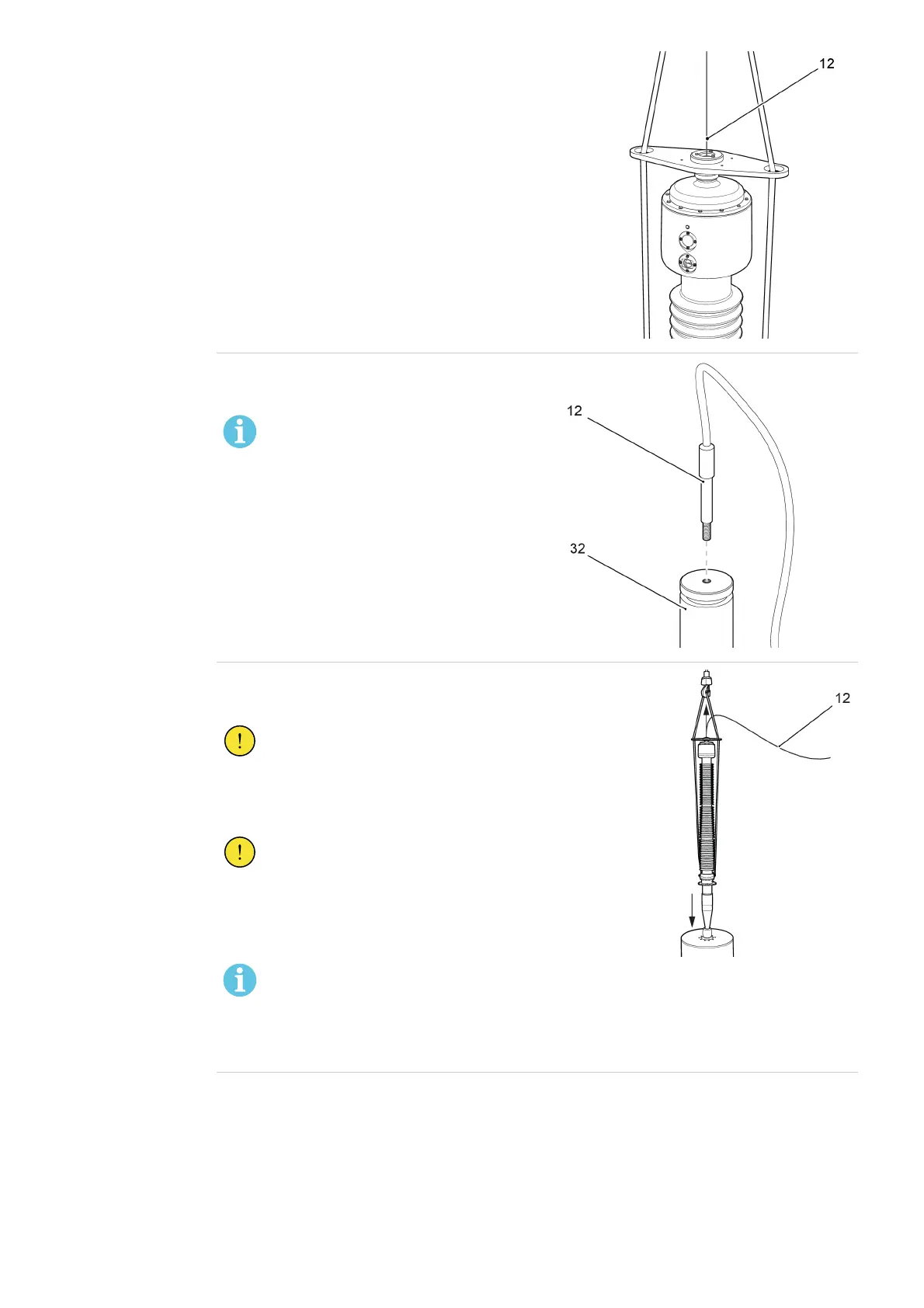

5. Lower the pull-through cord (12) through the
bushing.
G006852
6.
Apply Molykote Multilub to the pull-through cord
(12), and attach it to the inner terminal (32).
NOTE!
The terminal (32) has M8 threads.
G006912
7.
Hold the pull-through cord (12) in tension, while
lowering the bushing onto the transformer.
CAUTION!
Do not damage the stud bolts on the
transformer. There is a risk of metal
falling into the transformer.
CAUTION!
Make sure that the draw lead is
entering the bushing correctly. Monitor
the draw lead through the inspection
openings on the transformer.
NOTE!
Plastic sleeves put on two or three of
the stud bolts will help to guide the
flange, and will prevent damage to the
stud bolts.
G004893
