24
Installation and commissioning guide
1ZSC000563-ACF EN, REV. A, 2020-06-25

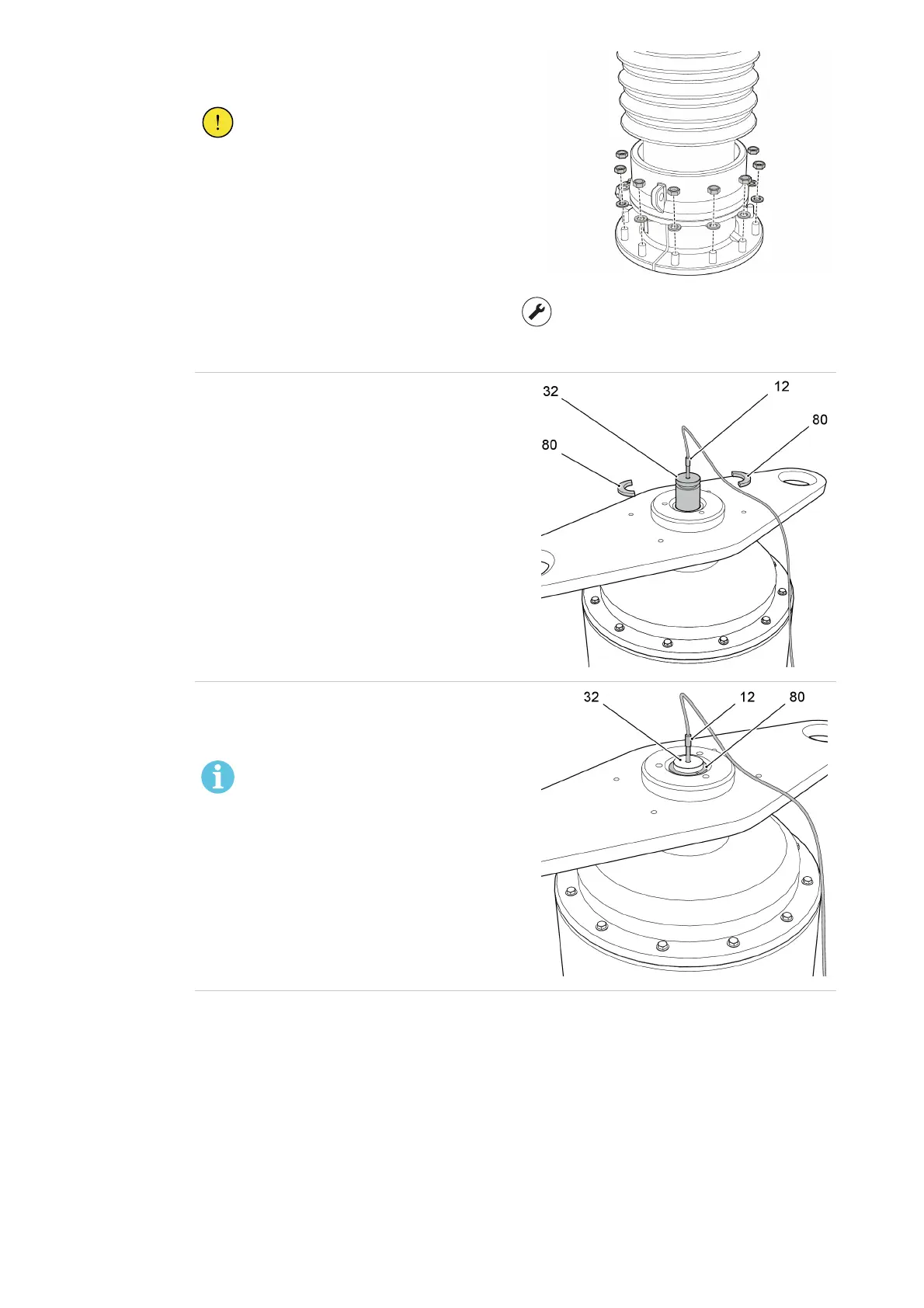

8. Install the nuts and washers. Tighten the nuts in a
crosswise sequence.
CAUTION!
Make sure that the nuts are tightened
evenly.
First tighten all nuts to half the torque,
then to the full torque.
G000719
Torque
Please refer to the transformer
manufacturer.
9.
Put the divided ring (80) in the slot in the inner
terminal (32).
G006848
10.
Carefully lower the inner terminal (32) with the
pull-through cord (12) until the divided ring (80)
touches the bushing top surface.
NOTE!
The divided ring is held in position only
by the weight of the inner terminal.
Install the outer terminal as soon as
possible.
G006847
