GILLETTE ŁÓDŹ
Robotic station for packing FFS1 dispensers
● Setting sensors that detect incorrect dispenser collection.
Sensors +P2-77S2 and +P2-77S4 marked in the figure below are active for both the
4s and 8s recipes. The sensors are responsible for detecting incorrect dispenser
collection. If an incorrect feed is detected, the belt will be emptied. The correct
positioning of the sensors is shown below.

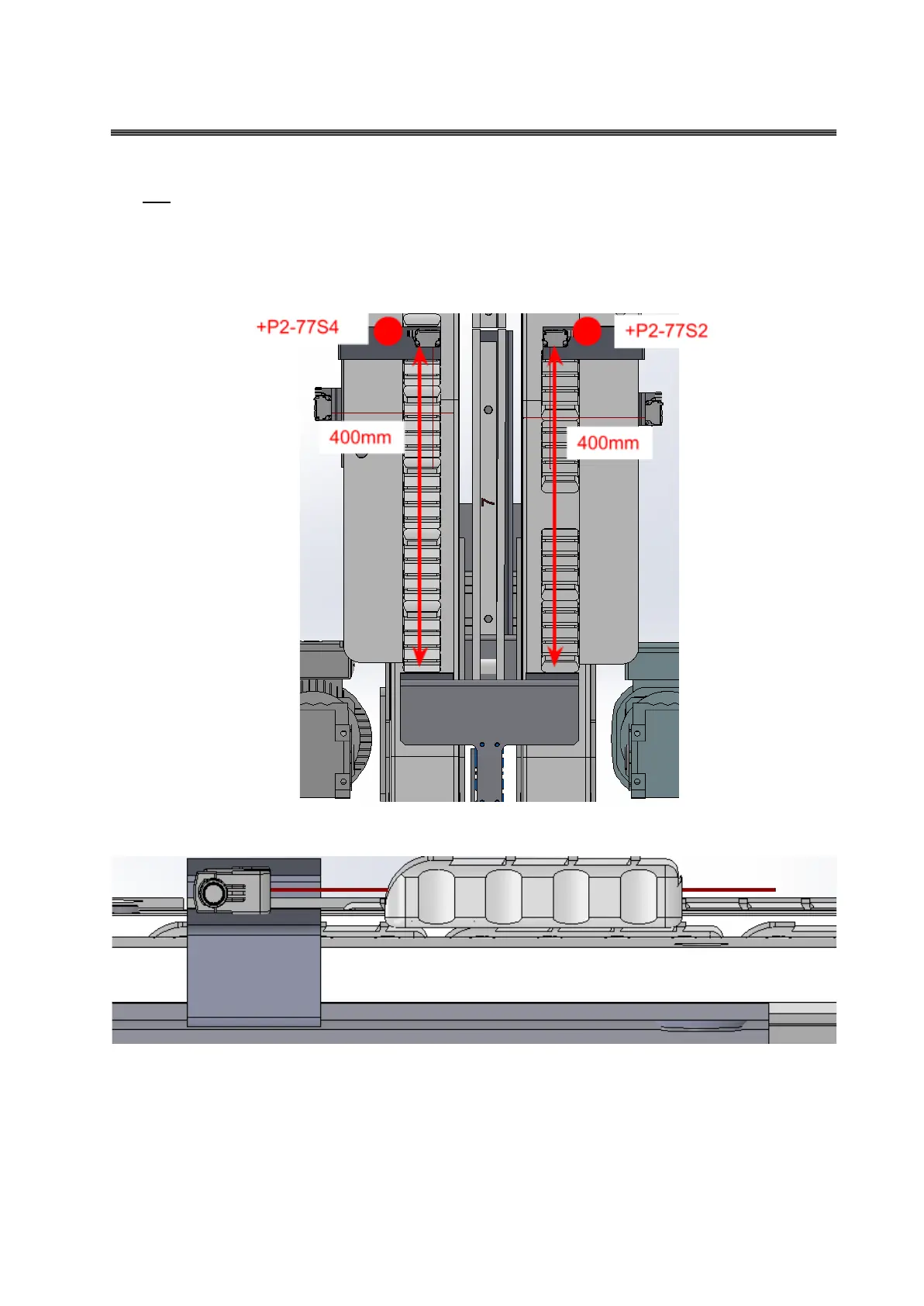

Figure 75 Setting of sensors detecting incorrect dispenser collection
Figure 76 Setting of sensors detecting incorrect dispenser collection
ABB Sp. z o.o.
Side 121/135
DTR_GILLETTE_ZSDPD_Farmores1_IRB360_2015_v03
