Bus termination
PDP32.0 in a bus segment must have termination switched on.
In setups where the PDP32.0 is located in a drawer it is necessary to use an active bus termination at the end of the
Setting the bus address

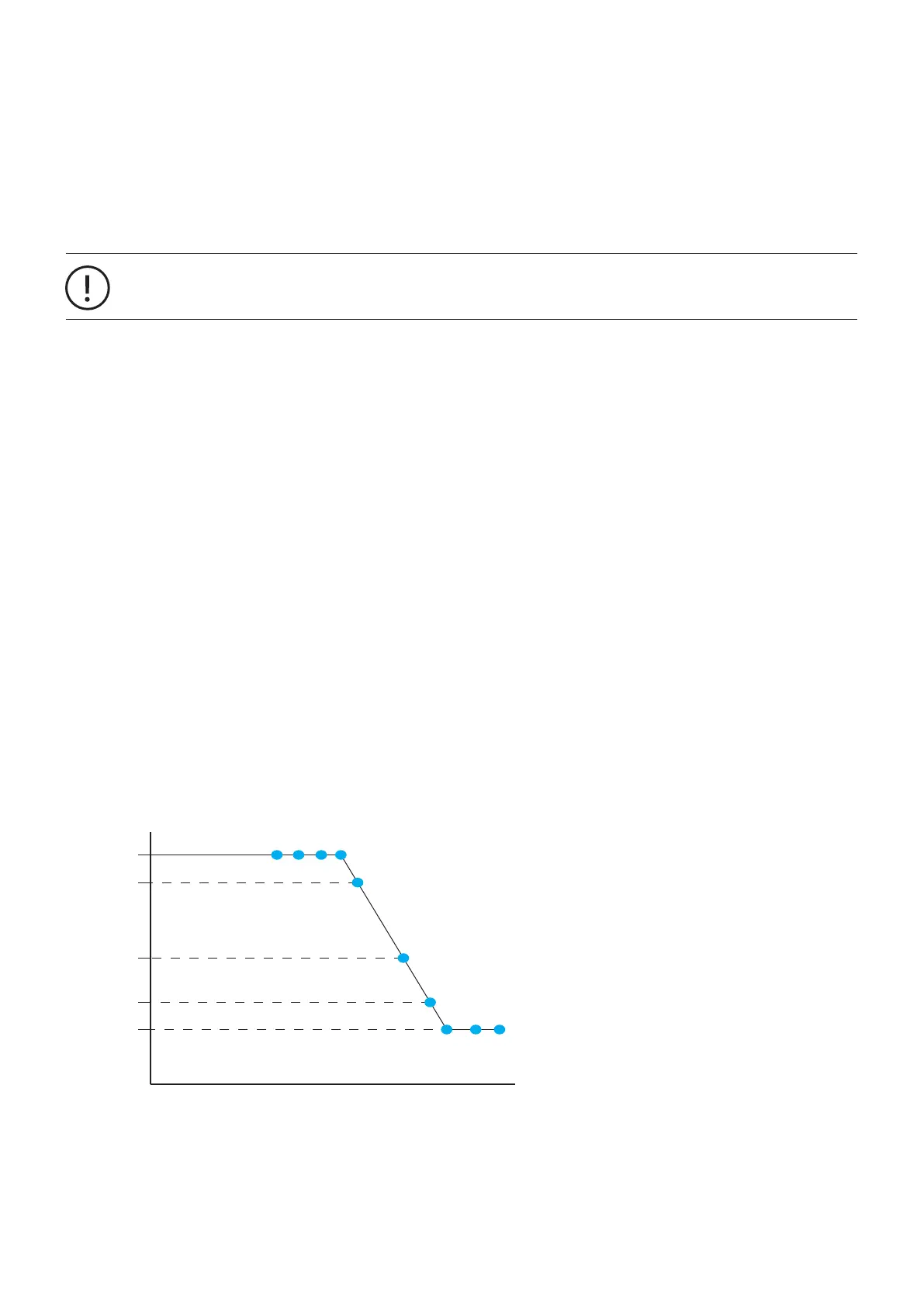

Baudrate versus network length
•
• the slowest DP subscriber sets the transfer rate of the DP line
• ≤
• number of DP subscriber ≤
• bus termination each at the beginning and the end of every DP segment necessary!
•
9.6kBit/s
19.2kBit/s
45.45kBit/s
93,75kBit/s
187,5kBit/s
500kBit/s
1,5MBit/s
3MBit/s
6MBit/s
12MBit/s
1200
1000
400
200
100
L
T
/m
Transmission Speed
a result, these two variables must always be considered together.
8PDP32.0 MANUAL
