Tension Electronics PFEA111/112, User Manual
Chapter 3 Commissioning
3-8 3BSE029380R0101 Rev C

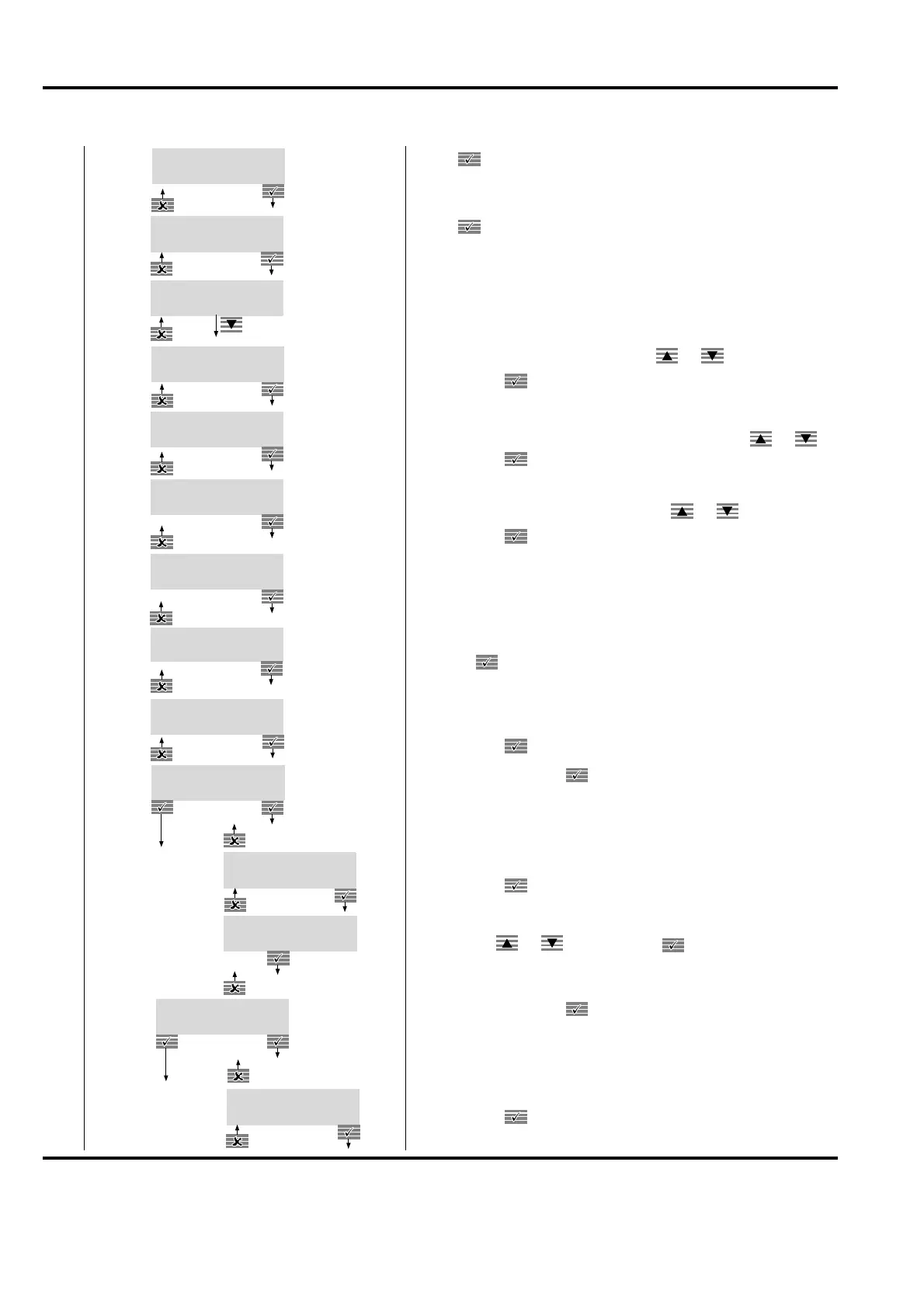

3.8.2 Performing Fast Setup using Wrap Gain
1Press for 5 seconds to go to the fast setup menu.
2Press to start the fast setup sequence.
3
The menu SetWebWidth will only be available when the
selected unit is N/m, kN/m, kg/m or pli.
Default Web Width is 2m (78,740 inch).
4Select WrapGain from the list with or .
Confirm with .
5 Select the number of load cells that support the roll (2 or
Single Side A or Single Side B) from the list with or .
Confirm with .
6 Check the nominal load on the load cell name plate.
Select nominal load from the list with or .
Confirm with .
7
Zero set is used to compensate for load cell zero signal and
tare weight.
Zero set must be done with no tension applied to the roll.
8 1. Check that no load is applied on the roll.
2. Press to zero set. “ActionDone” is shown on the
display for one second to confirm the zero setting action.
9 Enter the calculated wrap gain. For calculating wrap gain,
see Appendix (B, C, D, E, F or G) for installed load cell type.
Confirm with .
10 Select Yes and press to set up the voltage output.
11 Enter the tension value corresponding to 10 V.
Confirm with .
12 Select filter settings (15, 30, 75, 250, 750 or 1500 ms) from
the list with or . Confirm with .
13 Select Yes and press to set up the current output.
14 Enter the tension value corresponding to 20 mA.
Confirm with .
WebTension
seconds
> 5
FastSetUp
SetWebWidth
[XXXXXX]
SetWrapGain
[WrapGain]
CellsOnRoll
[2]
NominalLoad
[1 kN 225 lbs]
ZeroSet
[Yes]
WithNoTension
PressOkToZeroSet
EnterWrapGain
[XX.XX]SeeManual
Yes
VoltageOut?
[Yes]
No
SetTensionAt10V
[XXXXXX] N
FilterSettings
[250 ms 1.5 Hz]
CurrentOut?
[Yes]
Yes
No
SetTensionAt20mA
[XXXXXX] N
