Tension Electronics PFEA111/112, User Manual
Section A.5.2 Power Supply Unit SD83x
3BSE029380R0101 Rev C A-9
A.5.2 Power Supply Unit SD83x
The power supply unit is intended to be installed on a wall.
A.5.3 Junction Box PFXC 141
The junction box PFXC 141 is intended to be installed on a wall.

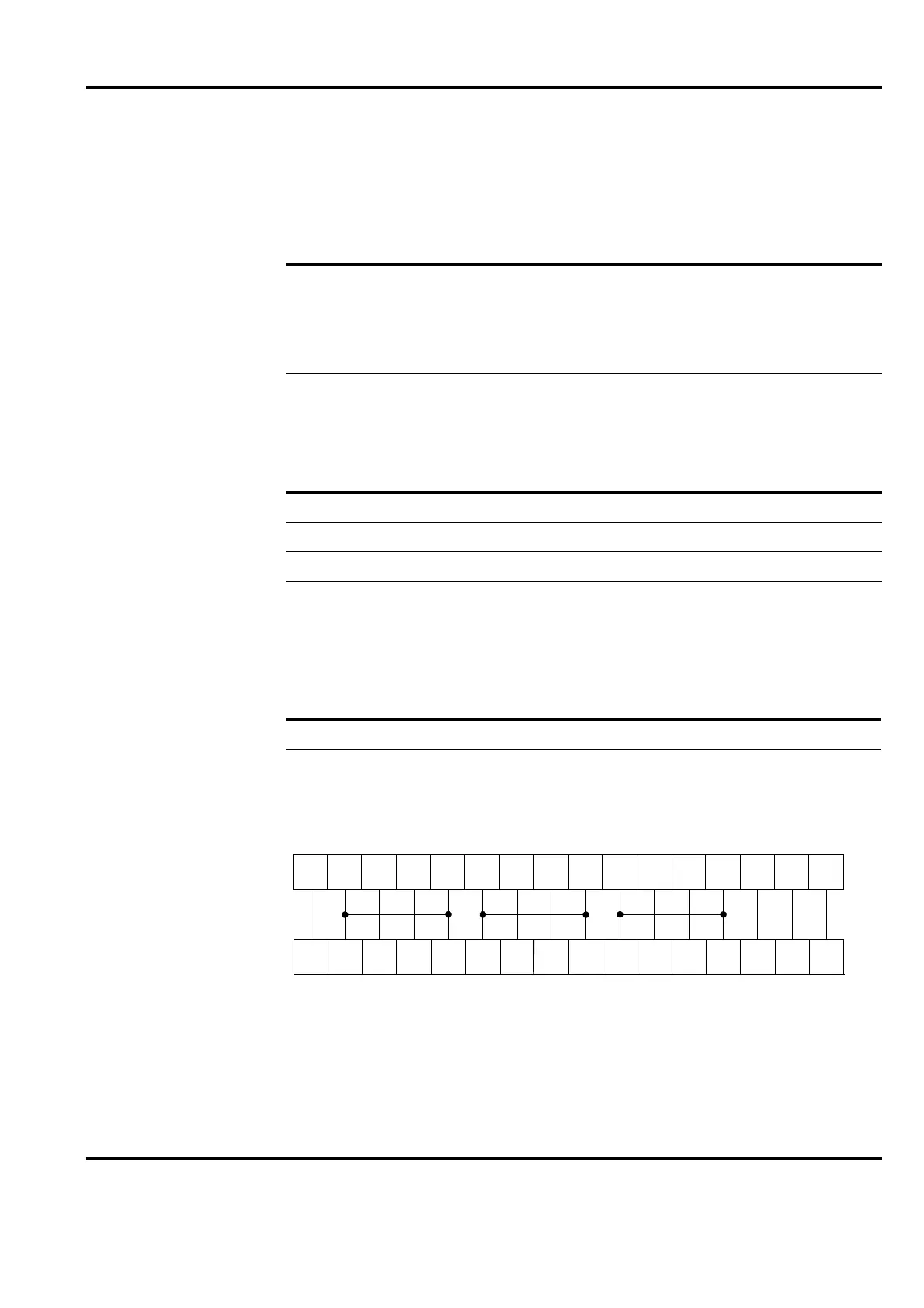

Figure A-3. Circuit Diagram for Junction Box PFXC 141.
Table A-12. Mains Supply Voltage
Data Remarks
Mains supply voltage 115 V AC (90 - 132 V),
100 V -10% to 120 V + 10%
230 V AC (180 - 264 V),
200 V -10% to 240 V + 10%
Auto-select
Table A-13. Power Supply Unit
Unit Dimensions (l x w x d) Weight
SD831 124 x 35x 102 mm 0.43 kg
SD832 124 x 35x 117 mm 0.5 kg
SD833 124 x 60x 117 mm 0,7 kg
Degree of protection Dimensions (l x w x d) Weight
IP 65 (NEMA 4) 220 x 120 x 80 mm 2.0 kg
12
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
