PositionMaster EDP300 DIGITAL POSITIONER | CI/EDP300-EN REV. D 13
4 Product identification
Name plate
Supply press: 0,14 ... 1 MP a
Input: analog 4 - 20 mA
Ambient temperature: -40°C ... 85°C
Output: double acting
Loss of electr. Supply: fall safe
IP65 HART
Options:
Analog feedback output
Digital feedback output
Universal analog input
Safety shut down
Pressure sensors
Electr. limit switch
Mech. limit switch, low
Mech. limit switch, high
Contactless pos. Sensor
H
Slot1 Slot2
XX
X
1
9
j
k
3
4
5
6
7
l
m
n
o
p
8
2
ABB Automation
Schillerstrasse 72
D - 32425 Minden
Made in Germany
1 Full type designation
2 Order code
3 Serial number
4 Special version
5 Hardware revision / Software revision
6 Date of manufacture
7 Explosion protection
8 Manufacturer
9 Supply air pressure
j Input signal
k Ambient temperature range
l Output
m Safety function de-energized
n Communication protocol
o IP rating
p Options

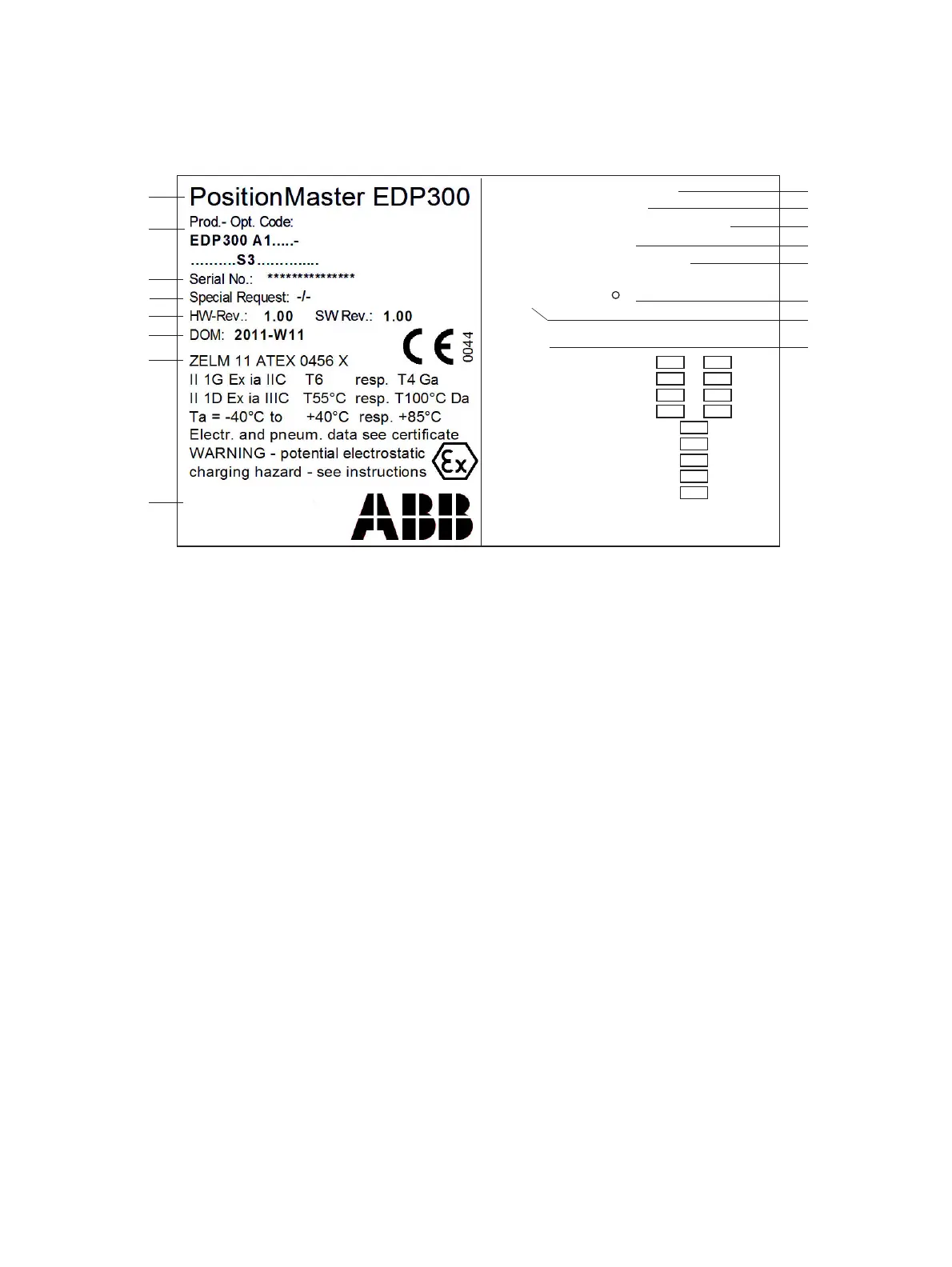

Figure 1: Name plate (example)
Note
The name plates displayed are examples. The device identification plates affixed to the device can differ from this representation.
