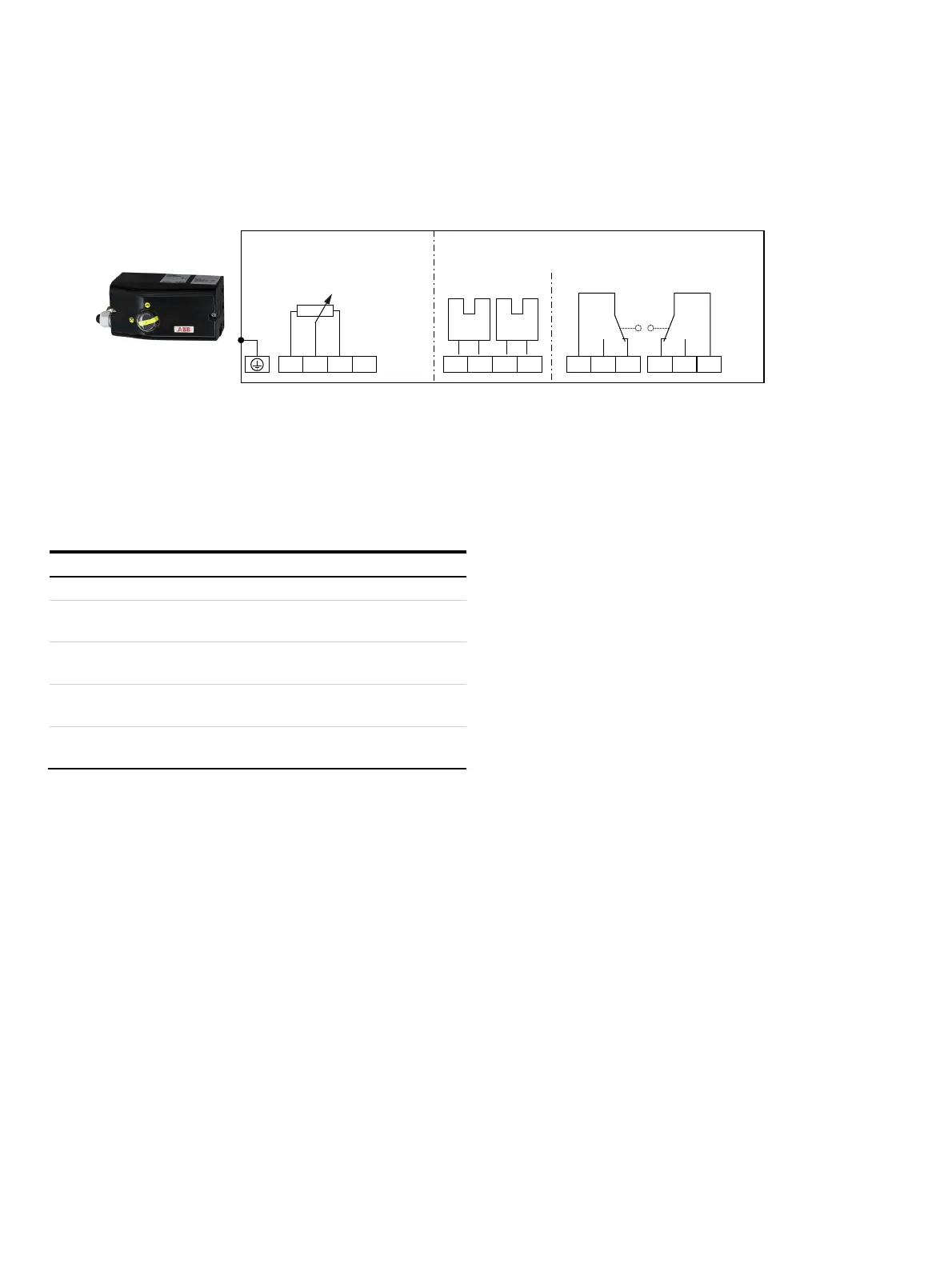

EDP300 Remote Sensor Electrical Connection
M10949M10949
AB
1
2
3
12
3
+51 -52 +41 -42
41
42
43
51
52
53
Limit 1 Limit 2
Limit 1Limit 2
A Basic device
B Options
1 Position sensor
2 Limit monitor with proximity switches (optional)
3 Limit monitor with microswitches (optional)
Figure 20: EDP300 Remote Sensor Electrical Connection
Change from one to tw o columns
Connections for inputs and outputs
Terminal Function / comments
1 / 2 / 3
EDP300 Control Unit
+51 / −52
Limit switch Limit 1 with proximity switch
(optional)
+41 / −42
Limit switch Limit 2 with proximity switch
(optional)
51 / 52 / 53
Limit switch Limit 1 with microswitch
(optional)
41 / 42 / 43
Limit switch Limit 2 with microswitch
(optional)
Electrical data for inputs and outputs
Note
When using the device in potentially explosive atmospheres,
note the additional data in Use in potentially explosive
atmospheres in accordance with ATEX and IECEx on page 6 and
Use in potentially explosive atmospheres in accordance with
FM and CSA on page 10!
