ABB PSR User Manual

1SFC132005C0201, rev.F | Softstarters 17

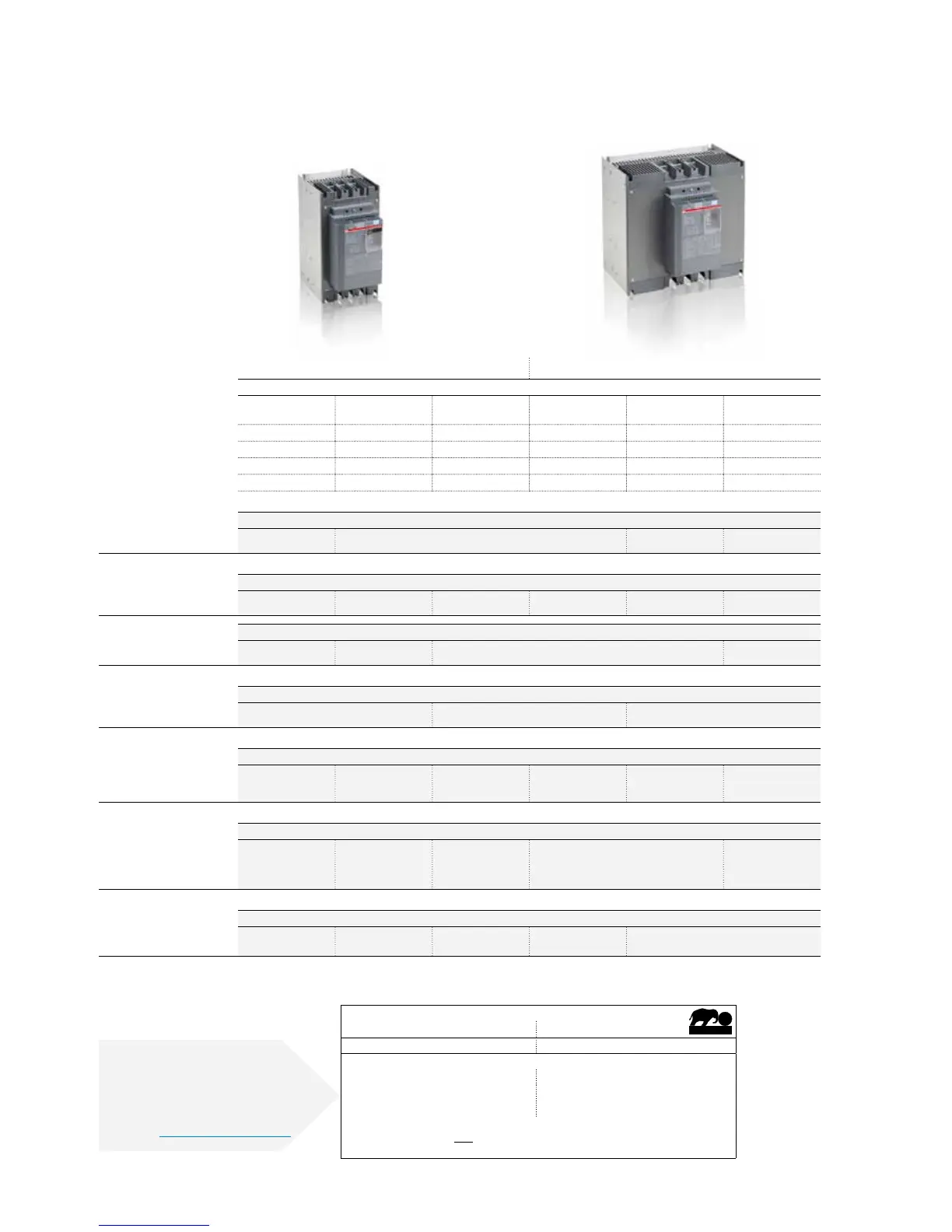

PSS85/147...PSS142/245 PSS175/300...PSS300/515
Softstarter. Type
Normal start
In-line connected
PSS85/147 PSS105/181 PSS142/245 PSS175/300 PSS250/430 PSS300/515
(400 V) kW 45 55 75 90 132 160
IEC, Max. A 85 105 142 175 250 300
(440-480 V) hp 60 75 100 125 150 200
UL, Max FLA 85 105 125 156 225 248
400 V, 40 ºC
Using MCCB type 1
coordination will be
achieved
MCCB (50kA), type
T2S160 T3S250 T4S320 T5S400
To achieve type 2 coordina-
tion semi-conductor fuses
must be used
Fuse protection (65kA), Semiconductor fuses, Bussmann, type
170M1572 170M3819 170M5809 170M5810 170M5813 170M6813
Suitable switch fuse for
the recommended semi-
conductor fuses
Switch fuse, type
OS125GD03P OS250D03P OS400D03P OS630D03P
Overload protection is used
to protect the motor from
over heating
Thermal overload relay, type
TA110DU TA200DU TA450DU
The line contactor is not
required for the softstarter
itself but often used to
open if OL trips
Line contactor, type
A95 A110 A145 A185 A260 A300
The by-pass contactor will
reduce the power loss of
the softstarter. All softstar-
ters can be operated
without by-pass
By-pass contactor, type
A50 A63 A95 A145 A210
Must be used if current limit
function is required
Current transformers, type
PSCT-125
1 turn
PSCT-150
1 turn
PSCT200
1 turn
PSCT-250
1 turn
PSCT-400
1 turn
PSS – The flexible range
Overview
Heavy duty
Quick guide for selection
Normal start Class 10 Heavy duty start class 30
Ordering - see page 18 - 19 Ordering - see page 20 - 21
Typical applications
• Bow thruster • Centrifugal pump • Centrifugal fan • Conveyor belt (long)
• Compressor • Conveyor belt (short) • Crusher • Mill
• Elevator • Escalator • Mixer • Stirrer
If more than 10 starts/h
!
Select one size larger than the standard selection
How to select correct size
By using the guide here, you can quickly
select a suitable softstarter for the most
common applications.
If a more precise selection is required,
you can use the softstarter selection tool
available at www.abb.com/lowvoltage

ABB PSR Specifications

General

Type	PSR
Protection Class	IP20
Category	Controller
Rated control supply voltage	24 V DC
Certifications	CE
Operating Temperature	-25°C to +55°C
