ABB PSR User Manual

E1858D
17.5
ø 8.5
5
E1859D
20
ø 10.2
5
34 Softstarters | 1SFC132005C0201, rev.F

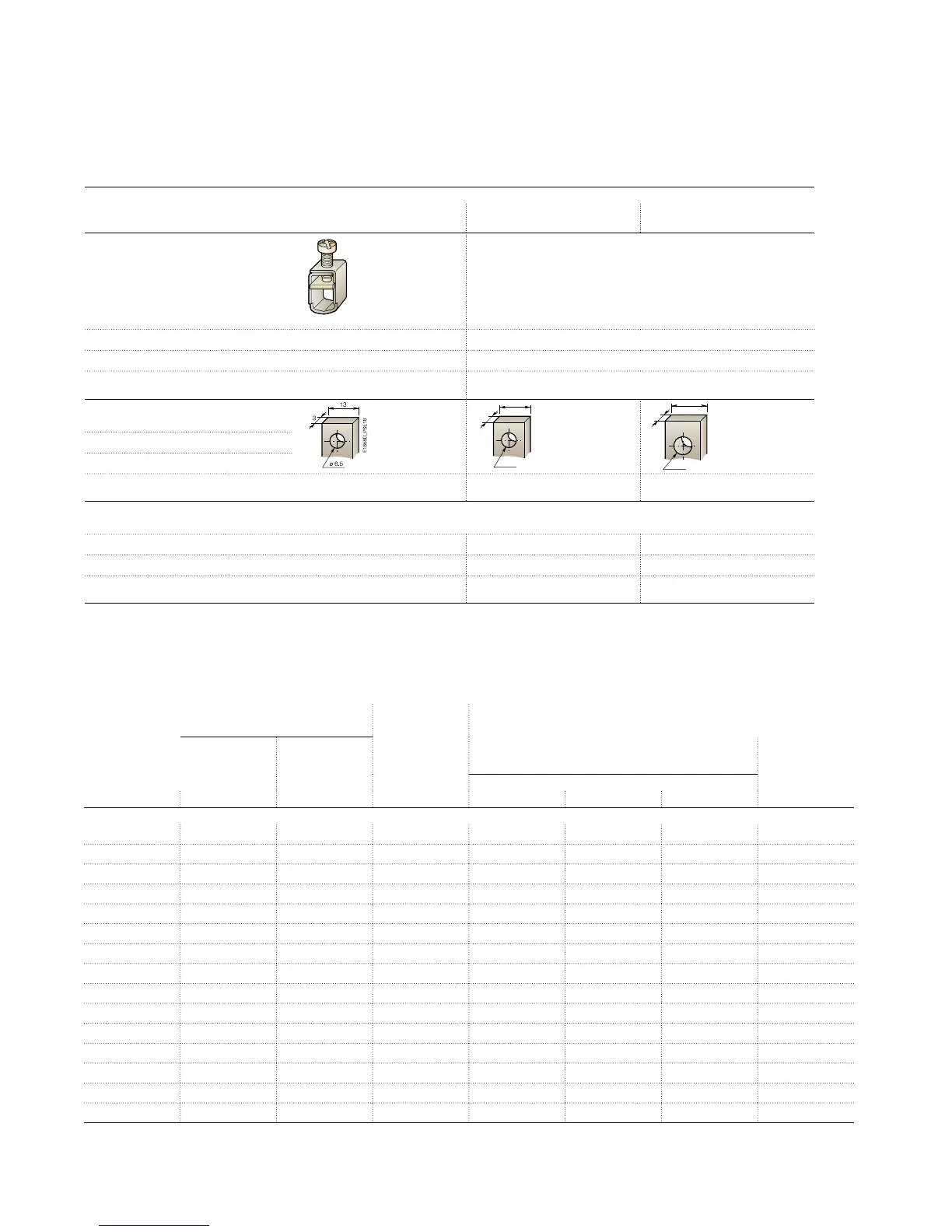

PSE – The efficient range
Technical data
Fuse ratings and power losses
Recommended
ABB Overload protection
For
Softstarter
Current
range
Max
power loss
at rated I
e
(Internal by-pass)
Max fuse raiting - main circuit
1)
Power
requirements
supply circuit
Holding (VA) /
Pull-in (VA)
Bussmann Fuses, DIN43 620 (Knife)
Type Type A W A Type Size
PSE
PSE18 Integrated 5.4-18 0.2 40 170M1563 000 16/19.9
PSE25 Integrated 7.5-25 0.4 50 170M1564 000 16/19.9
PSE30 Integrated 9-30 0.5 80 170M1566 000 16/19.9
PSE37 Integrated 11.1-37 0.8 100 170M1567 000 16/19.9
PSE45 Integrated 13.5-45 1.2 125 170M1568 000 16/19.9
PSE60 Integrated 18-60 2.2 160 170M1569 000 16/19.9
PSE72 Integrated 21.6-72 3.1 250 170M1571 000 16/19.9
PSE85 Integrated 25.5-85 4.3 315 170M1572 000 16/19.9
PSE105 Integrated 31.8-106 6.6 400 170M3819 1* 16/19.9
PSE142 Integrated 42.9-143 12.1 450 170M5809 2 16/31
PSE170 Integrated 51.3-171 17.6 500 170M5810 2 16/31
PSE210 Integrated 63-210 8.8 630 170M5812 2 23/350
PSE250 Integrated 75-250 12.5 700 170M5813 2 23/350
PSE300 Integrated 90.6-302 18 800 170M6812 3 23/350
PSE370 Integrated 111-370 27.4 900 170M6813 3 23/350
1)
For the supply circuit 6 A delayed, for MCB use C characteristics.
Cross section of connection cables
Type of softstarter
PSE18 ... PSE105 PSE142 ... PSE170 PSE210 ... PSE370
Main circuit
Connection clamp
Solid/stranded 1 x mm
2
2.5 – 70 See accessories
Solid/stranded 2 x mm
2
2.5 – 70 See accessories
Tightening torque
(recommended)
Nm 9 See accessories
Connection bar
Width and thickness mm
Hole diameter mm
Tightening torque
(recommended)
Nm 9
18 28
Supply and control circuit
Connection clamp
Solid/stranded 1 x mm
2
2.5 2.5
2.5
Solid/stranded 2 x mm
2
1.5 1.5
1.5
Tightening torque
(recommended)
Nm 0.5 0.5 0.5

ABB PSR Specifications

General

Type	PSR
Protection Class	IP20
Category	Controller
Rated control supply voltage	24 V DC
Certifications	CE
Operating Temperature	-25°C to +55°C
