ABB R-MAG Series - Figure 6. Contact Erosion Graph, 15 Kv

Page 14

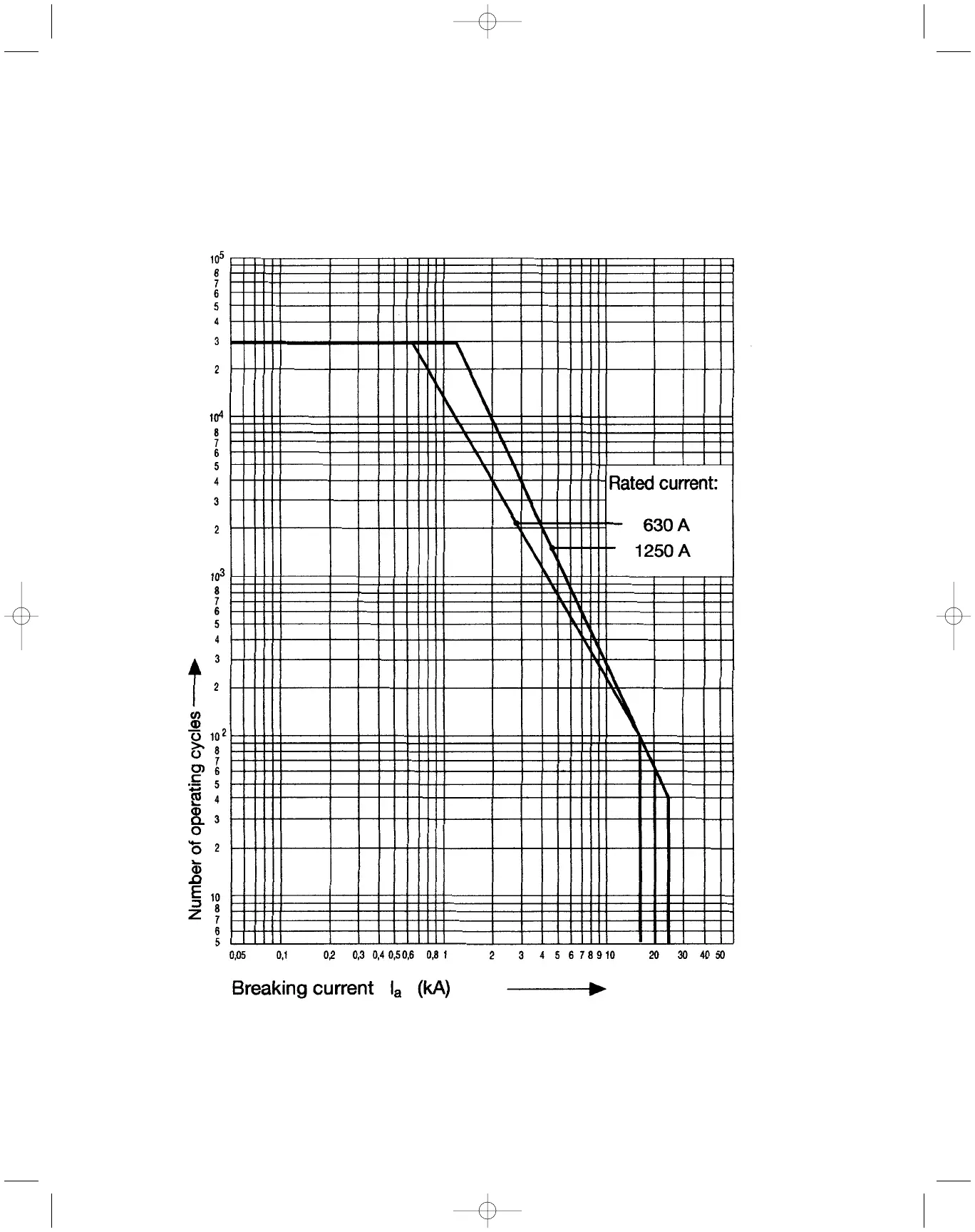

Figure 6. Contact Erosion Graph
Permissible number of vacuum interrupter operating
cycles n as a function of the breaking current l
a
for
15 kV R-MAG Vacuum Interrupter.
