ABB RED670 User Manual

IEC140000139-1-en.vsd
IEC140000139 V1 EN-US

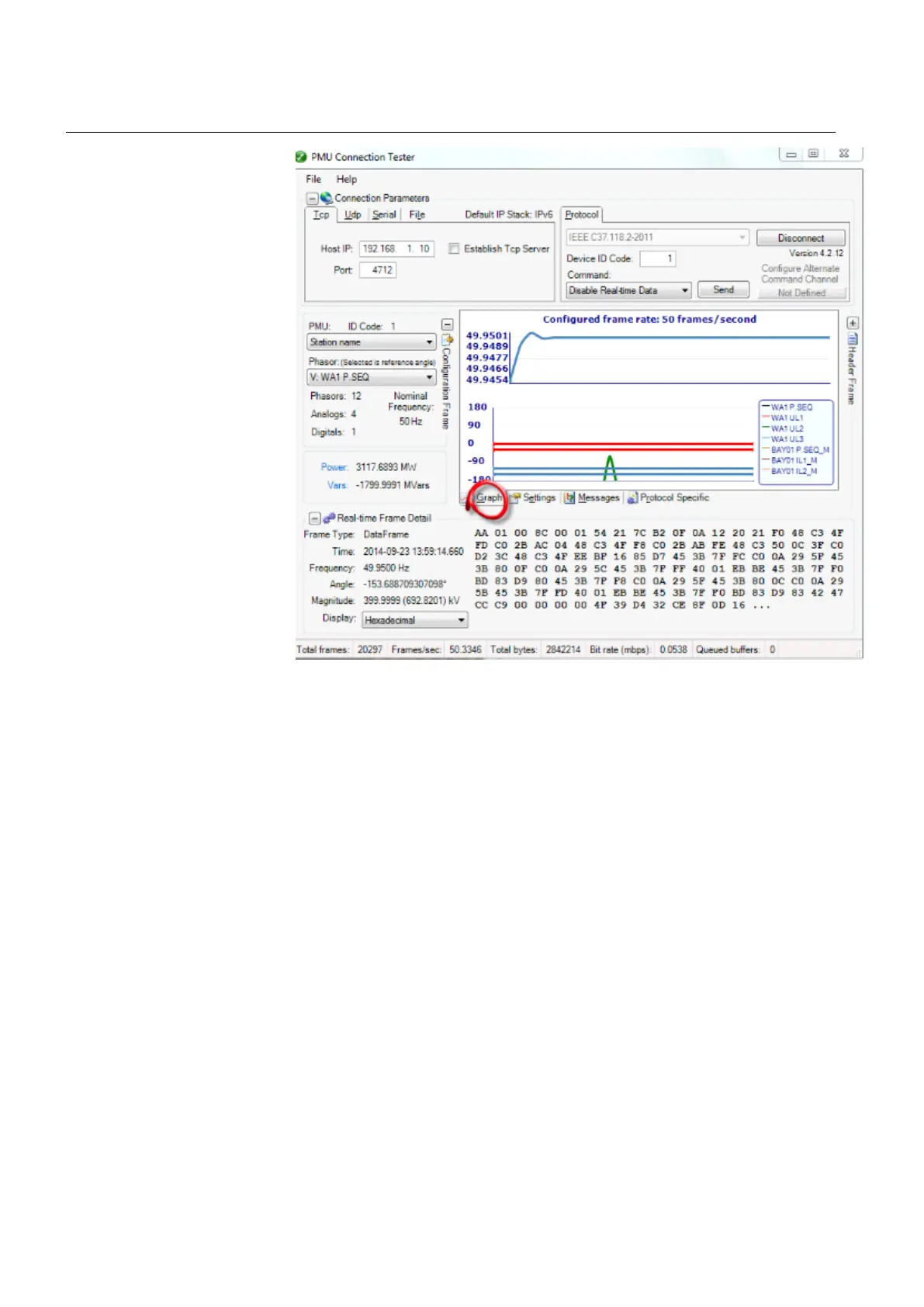

Figure 11: Graphic view over streaming synchrophasor data
• Open the drop-down menu in the Command field. There is a list of commands
that can be sent from the client (PMU Connection Tester) to the PMU. Try
different commands and make sure that the PMU is receiving and responding
to them.
Section 9 1MRK 505 378-UEN A
Establishing connection and verifying the IEEE C37.118/1344 communication
80 Line differential protection RED670 2.2 IEC
Commissioning manual

ABB RED670 Specifications

General

Rated Frequency	50/60 Hz
Product Type	Protection Relay
Rated Voltage	100-240 V AC/DC
Communication Protocols	IEC 61850, IEC 60870-5-103, DNP3
Operating Temperature Range	-25°C to +55°C
Protection Functions	Differential protection, distance protection, overcurrent protection
Outputs	Binary outputs
Enclosure	IP54
Mounting	19" rack mounting
