IEC140000140 V1 EN-US

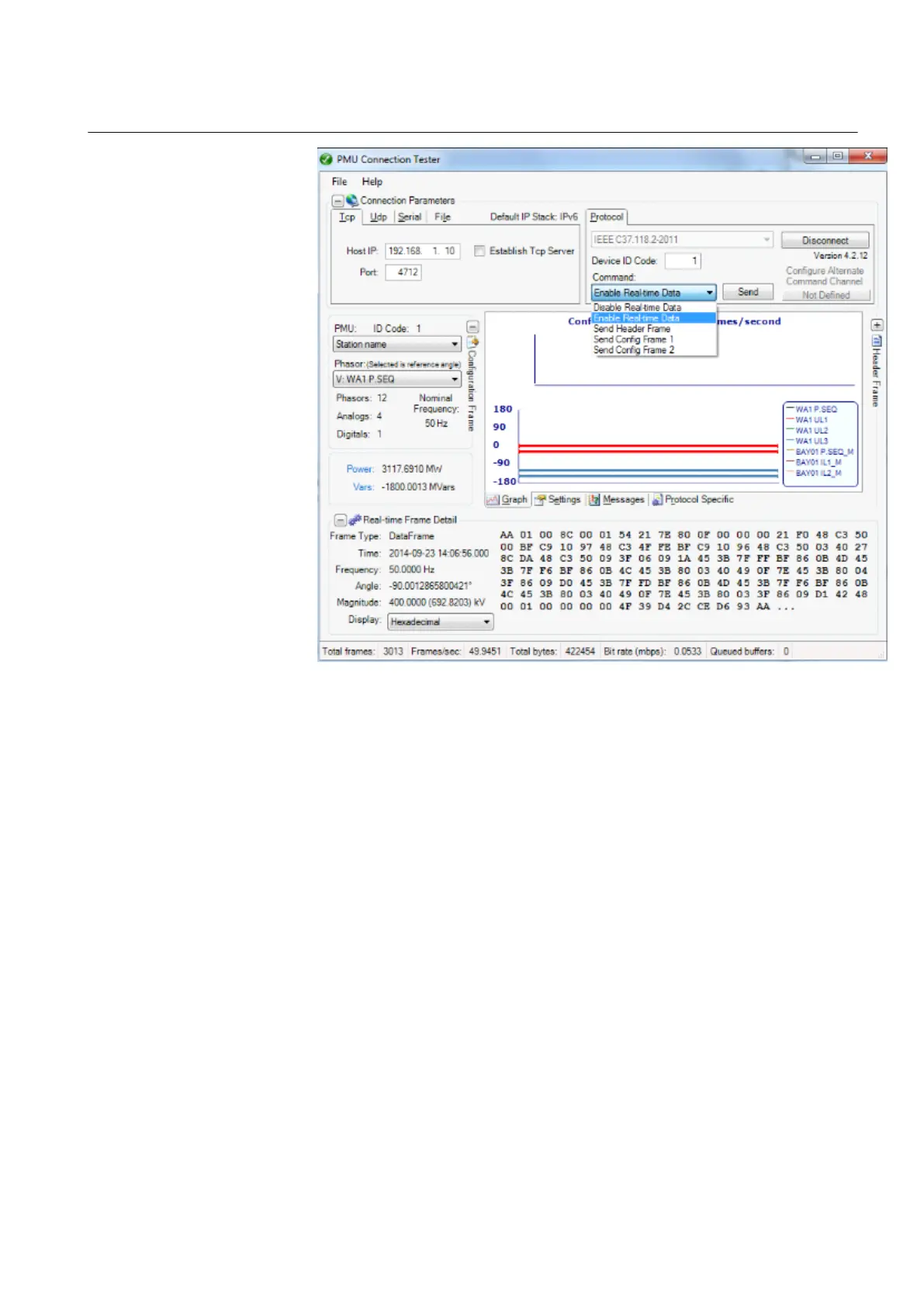

Figure 12: Drop-down menu with commands for testing the PMU
• Switch to the Protocol Specific tab. Here, all the IEEE C37.118 message types
can be seen. If the HeaderFrame is not included, ask the PMU to send the
header frame via the Send Header Frame command (Previous stage). Open
each message type and observe the content of each message.
1MRK 505 378-UEN A Section 9
Establishing connection and verifying the IEEE C37.118/1344 communication
Line differential protection RED670 2.2 IEC 81
Commissioning manual
