15.3.1. Serial port settings
A051364

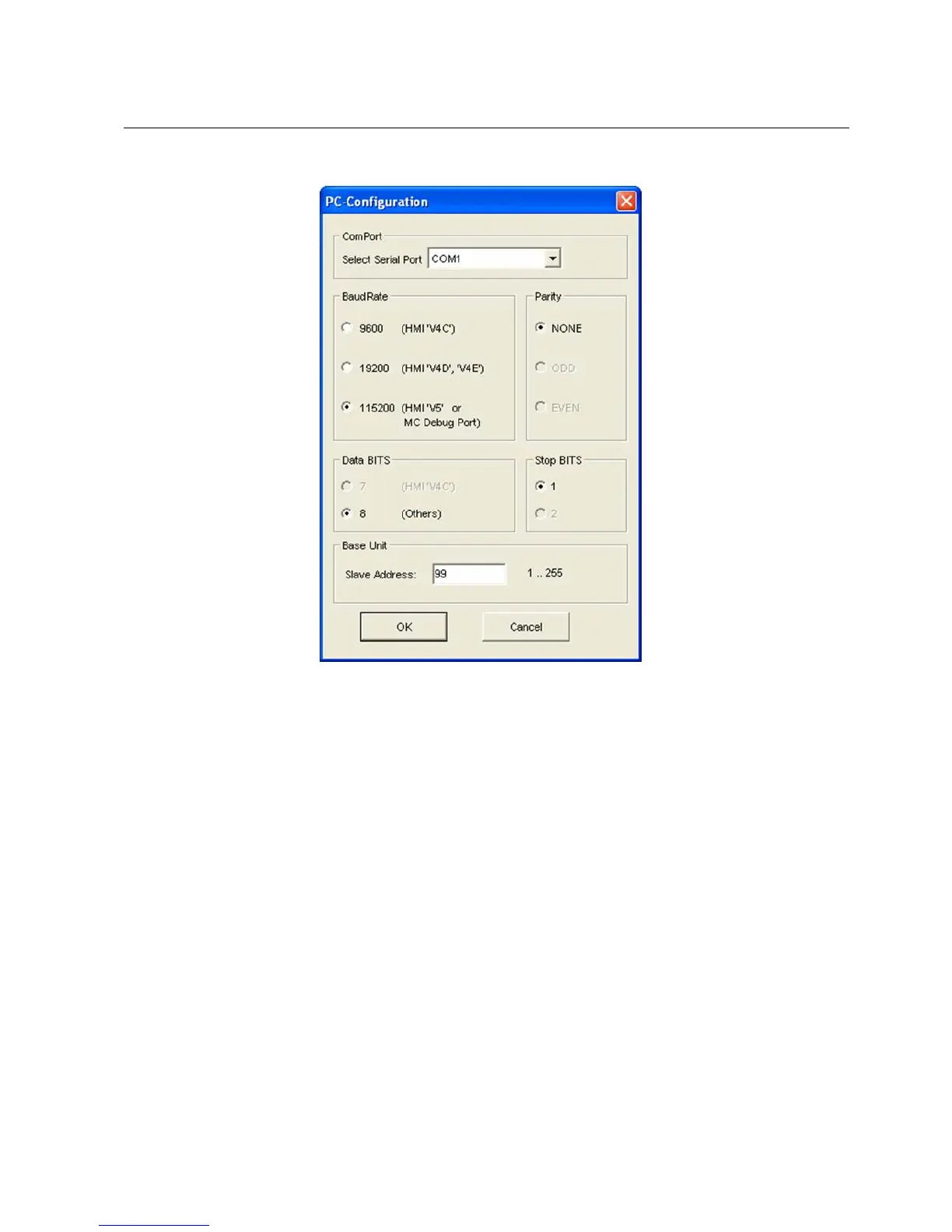

Fig. 15.3.1.-1 Setting the communication parameter of the serial port
Select the COM port where the RS232/Infrared (IrDa) cable or RS232 null-modem
cable is plugged in.
Apply the following settings:
Appplication with the new international HMI V5 or connection with a null-modem
cable directly to the base unit:
Baud rate 115,200
Data bits 8
Stop bits 1
Parity None
