20.6.4.3. SPA communication page
When the SPA bus communication module is installed, the following page is
displayed.
A051648

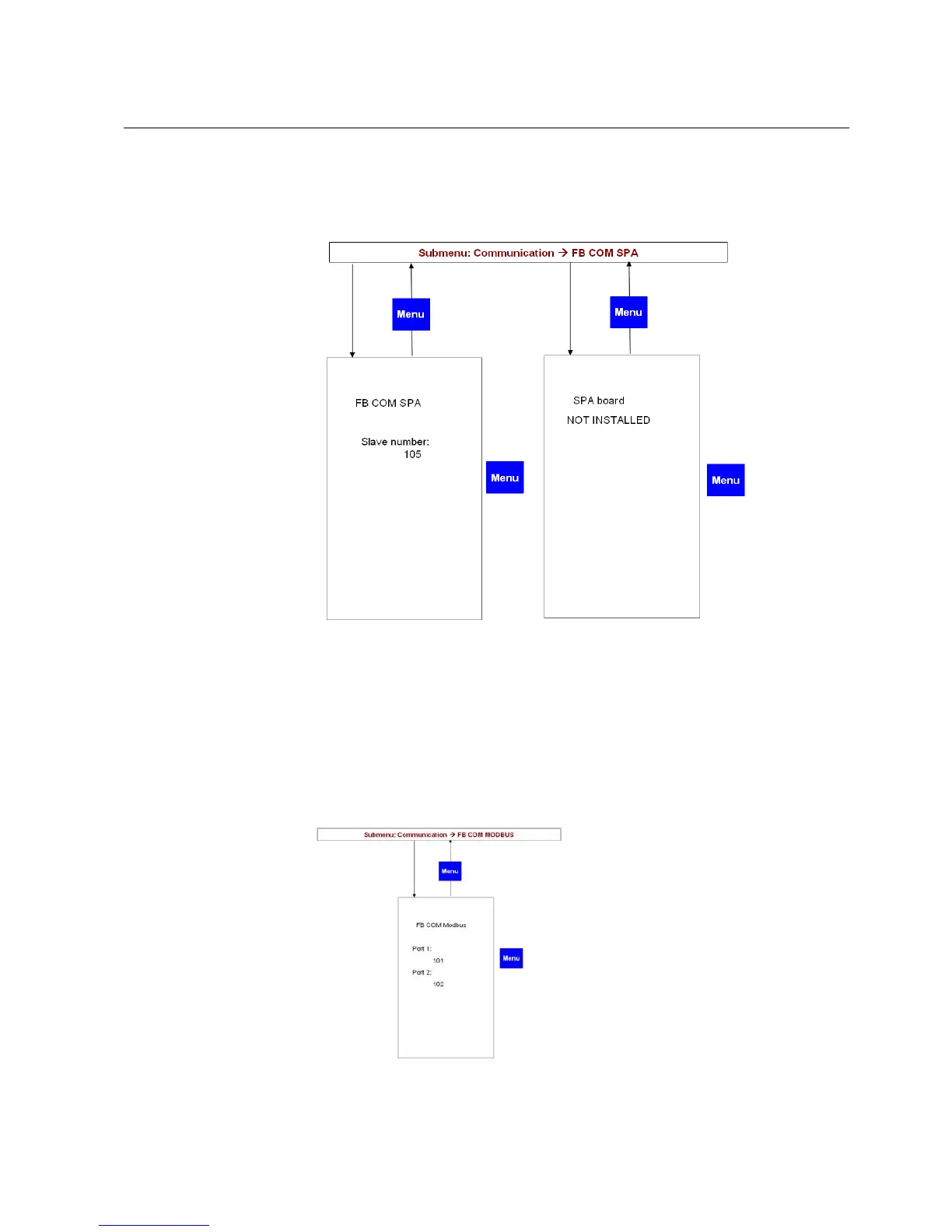

Fig. 20.6.4.3.-1 SPA bus communication module page
It is not possible to modify the SPA bus slave address of the unit on this page.
20.6.4.4. Modbus communication page
When the Modbus module is installed and properly working, the following page is
displayed.
A051644
Fig. 20.6.4.4.-1 Modbus communication module page
