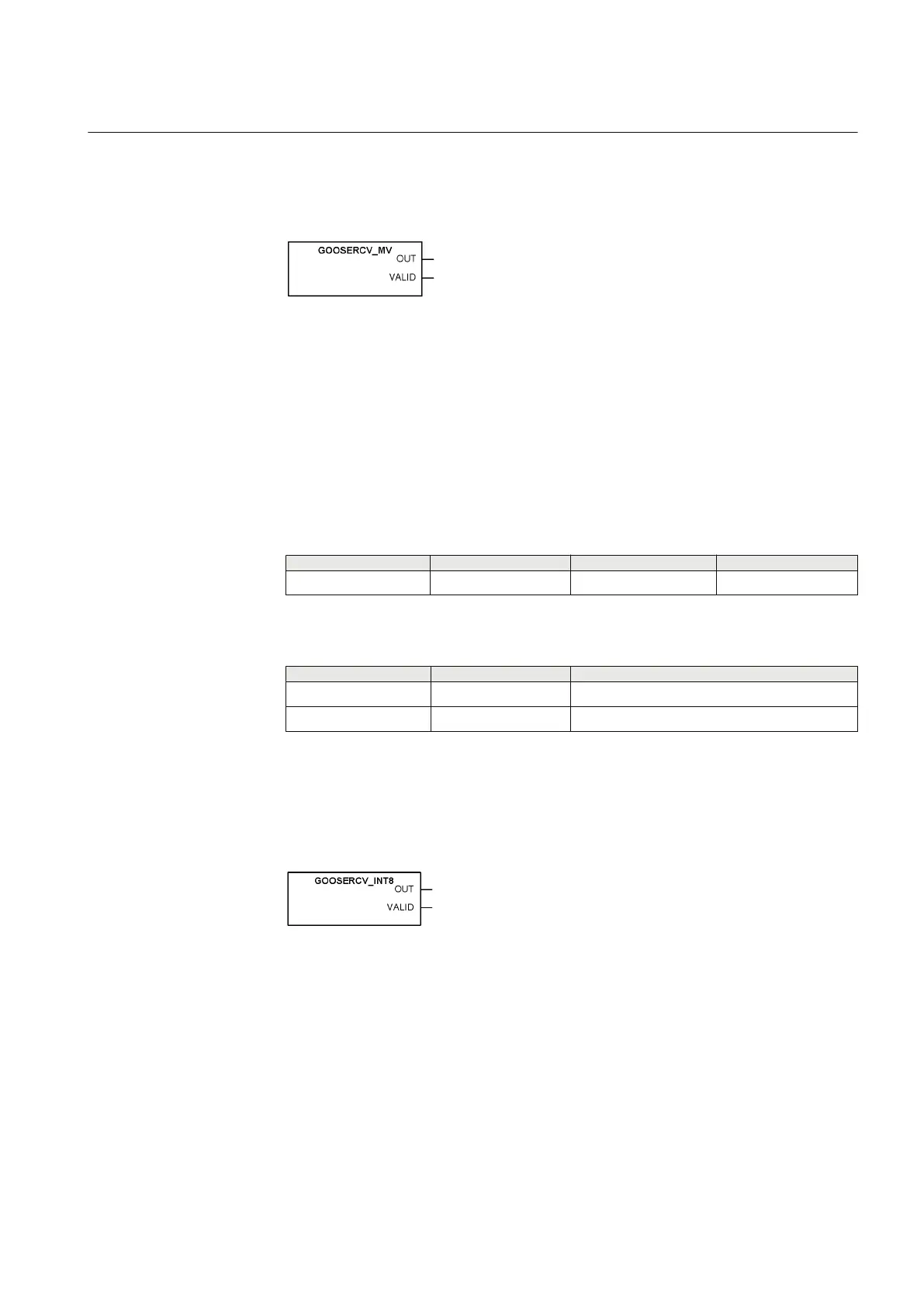

3.12.3 GOOSERCV_MV function block
3.12.3.1 Function block
GUID-A59BAF25-B9F8-46EA-9831-477AC665D0F7 V1 EN
Figure 32: Function block
3.12.3.2 Functionality
The GOOSERCV_MV function is used to connect the GOOSE measured value
inputs to the application.
3.12.3.3 Signals
Table 63: GOOSERCV_MV Input signals
Name Type Default Description
IN FLOAT32 0 Input signal
Table 64: GOOSERCV_MV Output signals
Name
Type Description
OUT FLOAT32 Output signal
VALID BOOLEAN Output signal
3.12.4 GOOSERCV_INT8 function block
3.12.4.1 Function block
GUID-B4E1495B-F797-4CFF-BD19-AF023EA2D3D9 V1 EN
Figure 33: Function block
3.12.4.2 Functionality
The GOOSERCV_INT8 function is used to connect the GOOSE 8 bit integer
inputs to the application.
