when using core balance current transformers. The following figure describes how
measuring transformers can be connected to the IED.
A070697 V2 EN

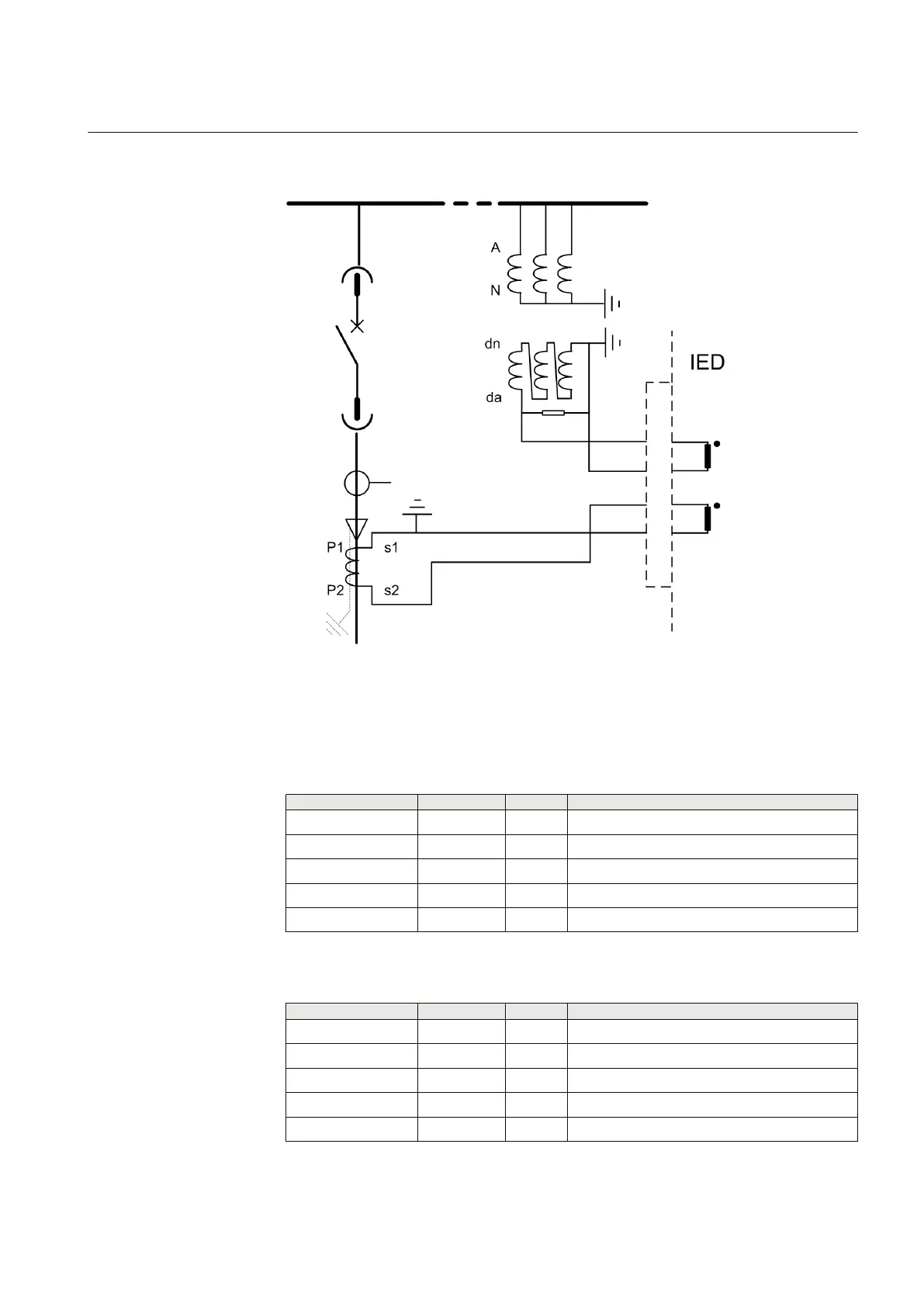

Figure 150: Connection of measuring transformers
4.2.2.10 Signals
Table 296: DEFLPDEF Input signals
Name
Type Default Description
Io SIGNAL 0 Residual current
Uo SIGNAL 0 Residual voltage
BLOCK BOOLEAN 0=False Block signal for activating the blocking mode
ENA_MULT BOOLEAN 0=False Enable signal for current multiplier
RCA_CTL BOOLEAN 0=False Relay characteristic angle control
Table 297: DEFHPDEF Input signals
Name
Type Default Description
Io SIGNAL 0 Residual current
Uo SIGNAL 0 Residual voltage
BLOCK BOOLEAN 0=False Block signal for activating the blocking mode
ENA_MULT BOOLEAN 0=False Enable signal for current multiplier
RCA_CTL BOOLEAN 0=False Relay characteristic angle control
1YHT530004D05 D Section 4
Protection functions
615 series 297
Technical Manual

ABB RET615 D Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Rated Voltage	100-240 V AC/DC
Communication Protocols	IEC 61850, Modbus, DNP3
Input Voltage	24-250 V DC
Operating Temperature Range	-25°C to +55°C
Enclosure Class	IP54
Mounting	Flush mounting
